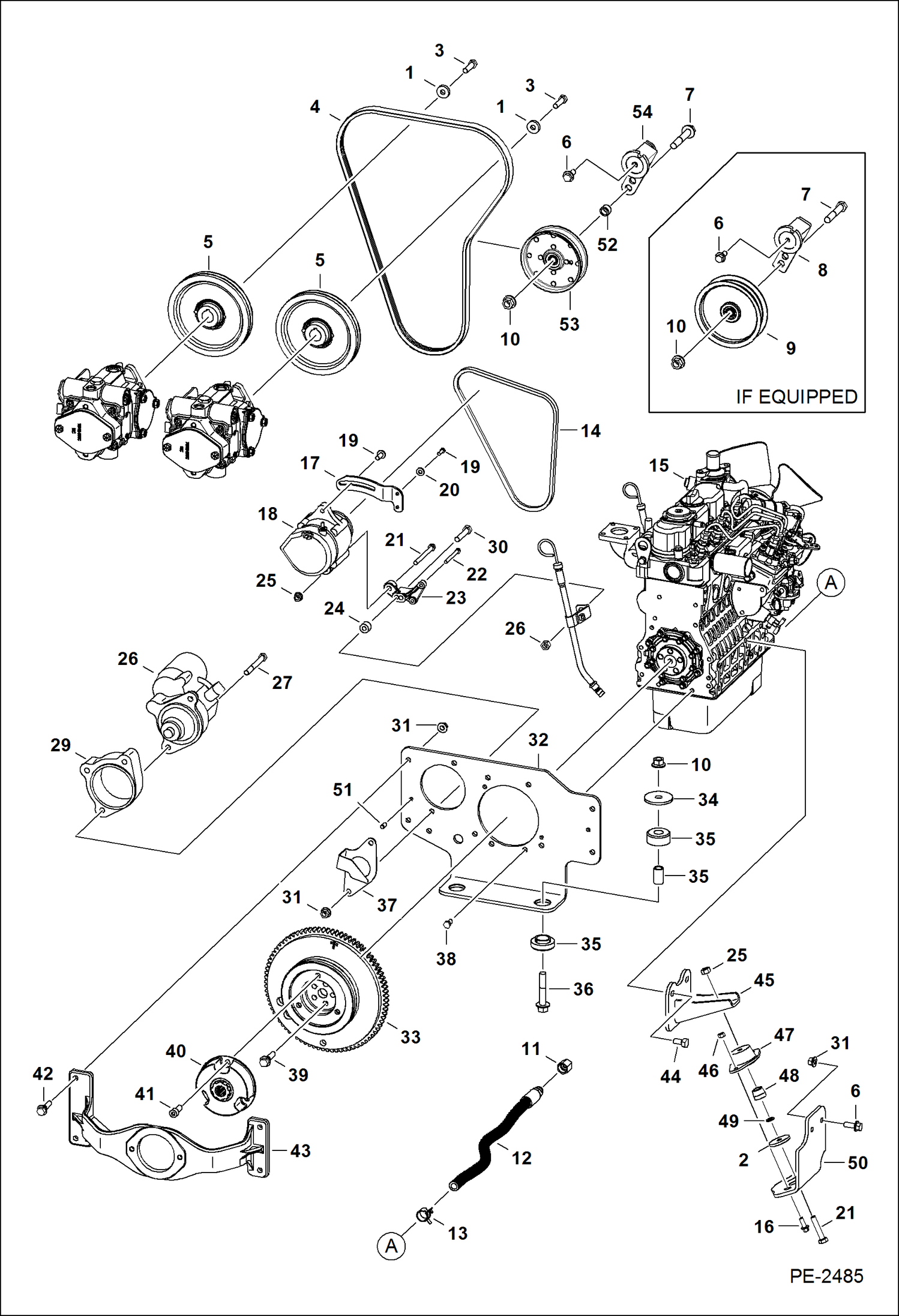

Запчасти Bobcat Mini Tracks Loaders ENGINE & ATTACHING PARTS (Engine Mounts) (S/N 538711001 - 12499) POWER UNIT

1

616783

WASHER

2

872229

WASHER

3

18C624

BOLT

4

6684749

BELT DRIVE 3/V2

5

6737103

PULLEY

6

35C616

BOLT 5

7

31C860

BOLT engine

8

6683883

TENSIONER belt

9

6688547

PULLEY, FAN DRIVE IDLER Was 6686372 - C

10

83D8

NUT 5

11

36K6

CAP

12

7109834

HOSE

13

5HM20

CLAMP

14

6686683

BELT, ALT

15

ENGINE, D902E2B-BC-1 See Illustration ENGINE & GASKET KITS/ B24948 W/Ref. 39

16

29CM820

SCREW

17

7101372

BRACKET alternator

18

ALTERNATOR, 40 AMP See Illustration ALTERNATOR/ C3456

19

29CM616

BOLT

20

25E13

WASHER 5

21

1CM1050

SCREW

22

1CM660

BOLT

23

7101358

MOUNT alternator

24

6732978

SPACER

25

53DM10

NUT

26

83D5

NUT 5

27

17C652

BOLT

28

STARTER See Illustration STARTER/ D2396

29

6562198

SPACER

30

17C552

BOLT

31

83D6

NUT 5

32

6735050

MOUNT engine

33

7160048

FLYWHEEL, ENG ASSY Was 7103781 - A

33

6800424

RING-GEAR

34

6564692

WASHER

35

6677919

MOUNT engine

36

31C848

BOLT Was 31C000844B - B

37

7102645

SHIELD starter

38

55CM816

BOLT

39

6678065

BOLT flywheel

40

6683843

COUPLER drive

41

6805750

SCREW

42

35C624

BOLT

43

6735052

MOUNT pump

44

6733378

SCREW

45

6736967

MOUNT ENGINE

46

53DM8

NUT

47

6653764

MOUNT

48

6804522

SPACER

49

15EM100

WASHER

50

7113470

BRACKET engine - Was 6731306 - C

51

7101341

PIN
