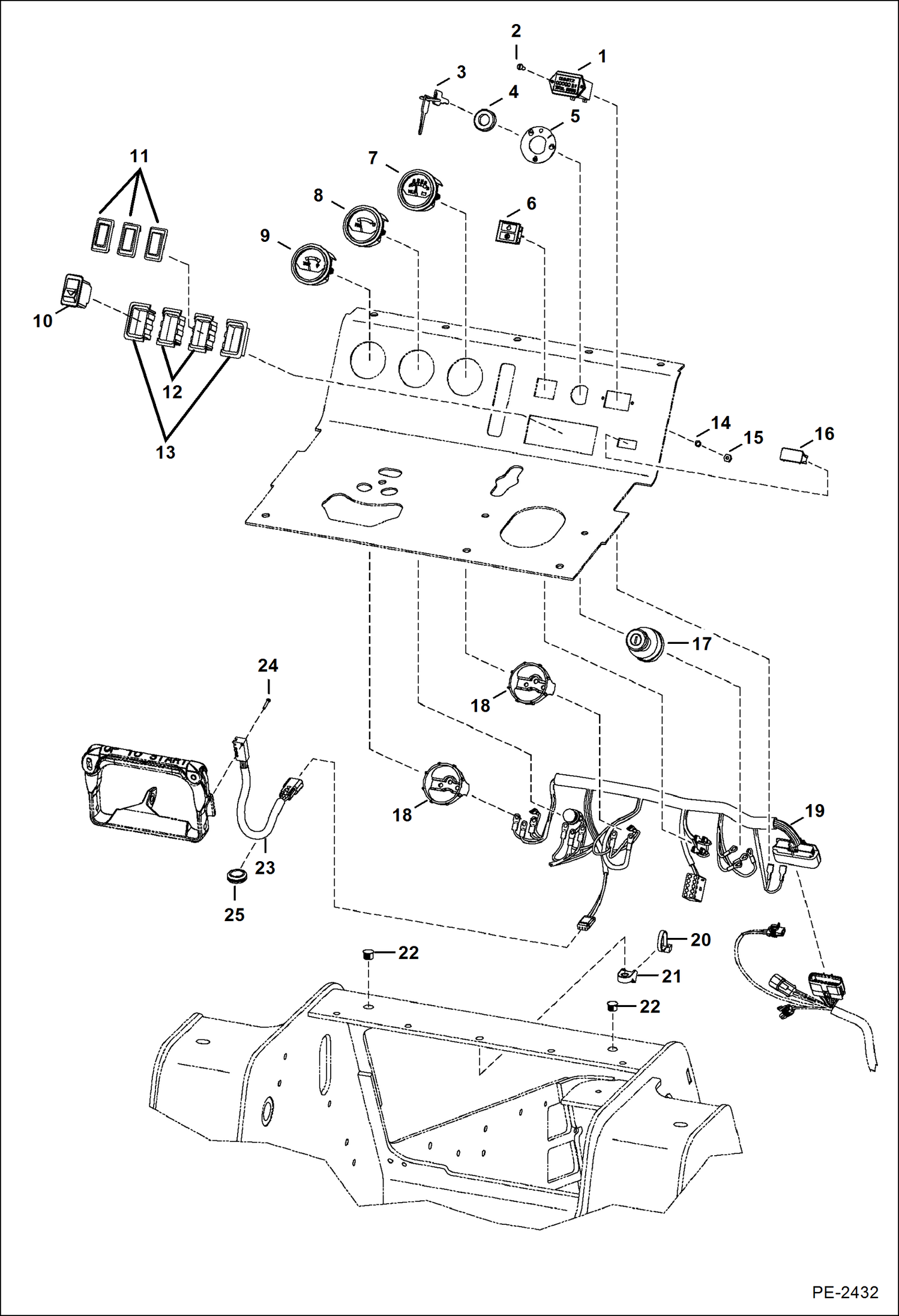

Запчасти Bobcat Mini Tracks Loaders CONSOLE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6664886

HOURMETER

2

85G608

SCREW

3

6693241

KEY 10 Was 895771B - B

4

6674202

NUT

5

6596218

PLATE ignition switch

6

6636018

LIGHT indicator

7

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

7

6669664

VOLTMETER W/O clamp

8

6634273

GAUGE, FUEL

9

GAUGE NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

9

6669663

GAUGE eng temp - W/O clamp

10

6686371

SWITCH boom override

11

6665314

PLUG console

12

6684672

INSERT middle

13

6684671

INSERT end

14

17E6

WASHER 10

15

12D6

NUT 10

16

6675181

PLUG

17

6665606

SWITCH ignition switch

18

6679027

CLAMP gauge

19

7105226

HARNESS console

20

6624289

STRAP, TIE

21

6678667

MOUNT

22

6649949

PLUG

23

7154313

SWITCH, MICRO

24

7153414

SCREW

25

6676508

GROMMET
