Запчасти Bobcat Mini Tracks Loaders WORK VALVE (S/N 538711001 & Above, 538811001 & Above) HYDRAULIC SYSTEM

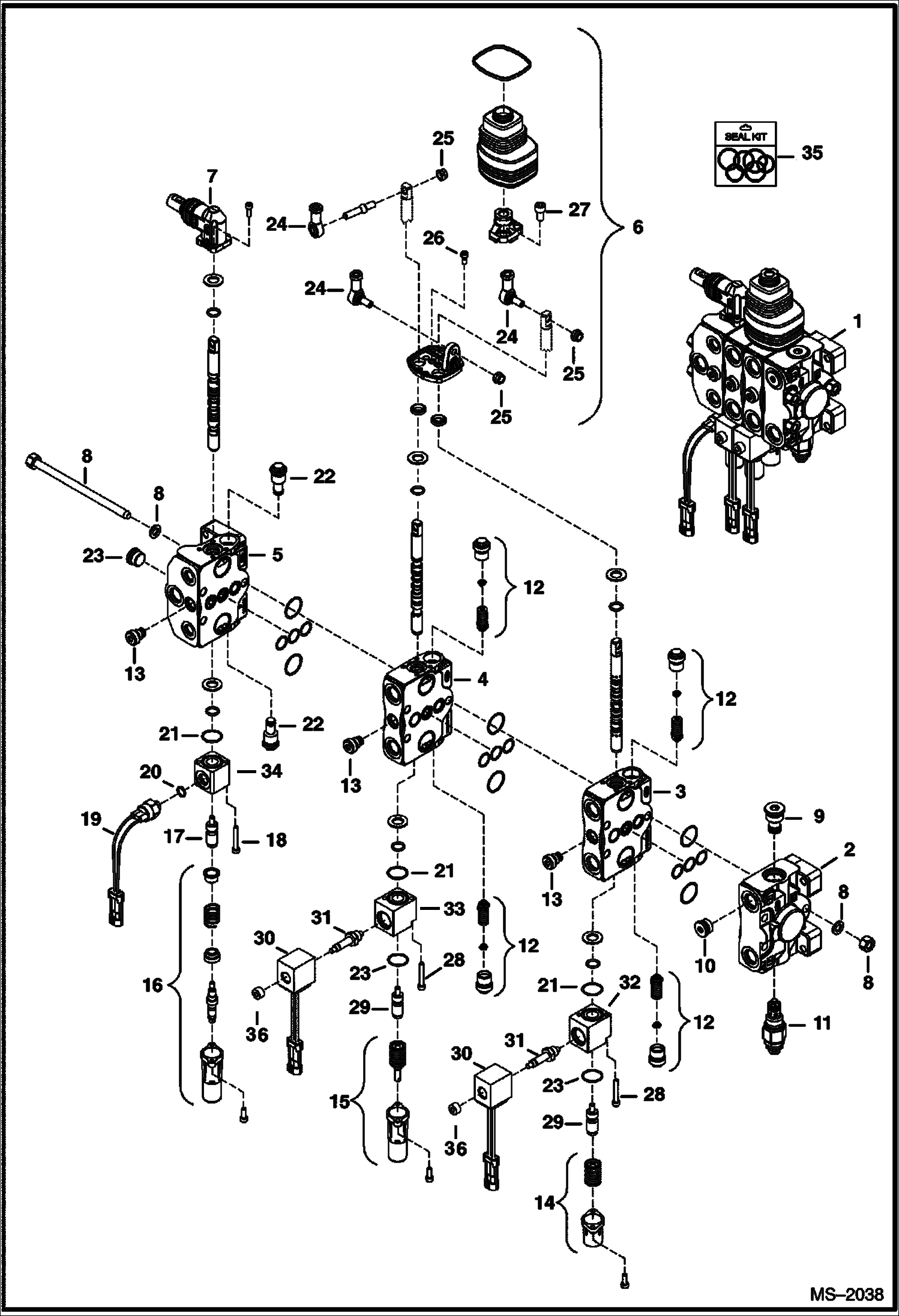

Схема запчастей Bobcat Mini Tracks Loaders - WORK VALVE (S/N 538711001 & Above, 538811001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6686260

MAIN VALVE work - Ref. 2-34

2

6685789

SECTION

2

6685793

SEAL KIT

3

6687647

SECTION tilt

3

6687642

SEAL KIT

4

6687648

SECTION lift

4

6687643

SEAL KIT

5

6685792

SECTION aux.

5

6685796

SEAL KIT

6

6685784

KIT detent

7

6685782

LEVER W/screw

8

6685783

KIT W/ 3 bolts, 3 nuts & 6 washers

9

6680057

PLUG

10

6679629

PLUG

11

6682252

VALVE main relief

12

6685776

KIT relief valve

13

6680092

VALVE, LOCK LOAD

14

6687644

KIT spool - Ref. 14, 21, 23, 28, 29, 31 & 32

15

6687646

KIT spool - Ref. 15, 21, 23, 28, 29, 31 & 32

16

6687645

KIT spool - Ref. 16-21 & 32

17

6685780

CONTROL ASSY

18

6679501

SCREW

19

6692577

SWITCH Was 6685779 - A

20

6679605

O-RING

21

6679604

O-RING

22

6686233

PLUG

23

6679606

O-RING Was 6687638 - A

24

6685786

ROD END

25

6685785

NUT

26

6685787

SCREW

27

6685788

SCREW

28

6687640

SCREW

29

6687637

PIN

30

6687649

COIL ignition

31

6687639

SPOOL assy.

32

BLOCK NSS - Order Ref. 14

33

BLOCK NSS - Order Ref. 15

34

BLOCK NSS - Order Ref. 16

35

6687641

SEAL KIT complete

36

6691185

NUT

Выбрано товаров: 40
