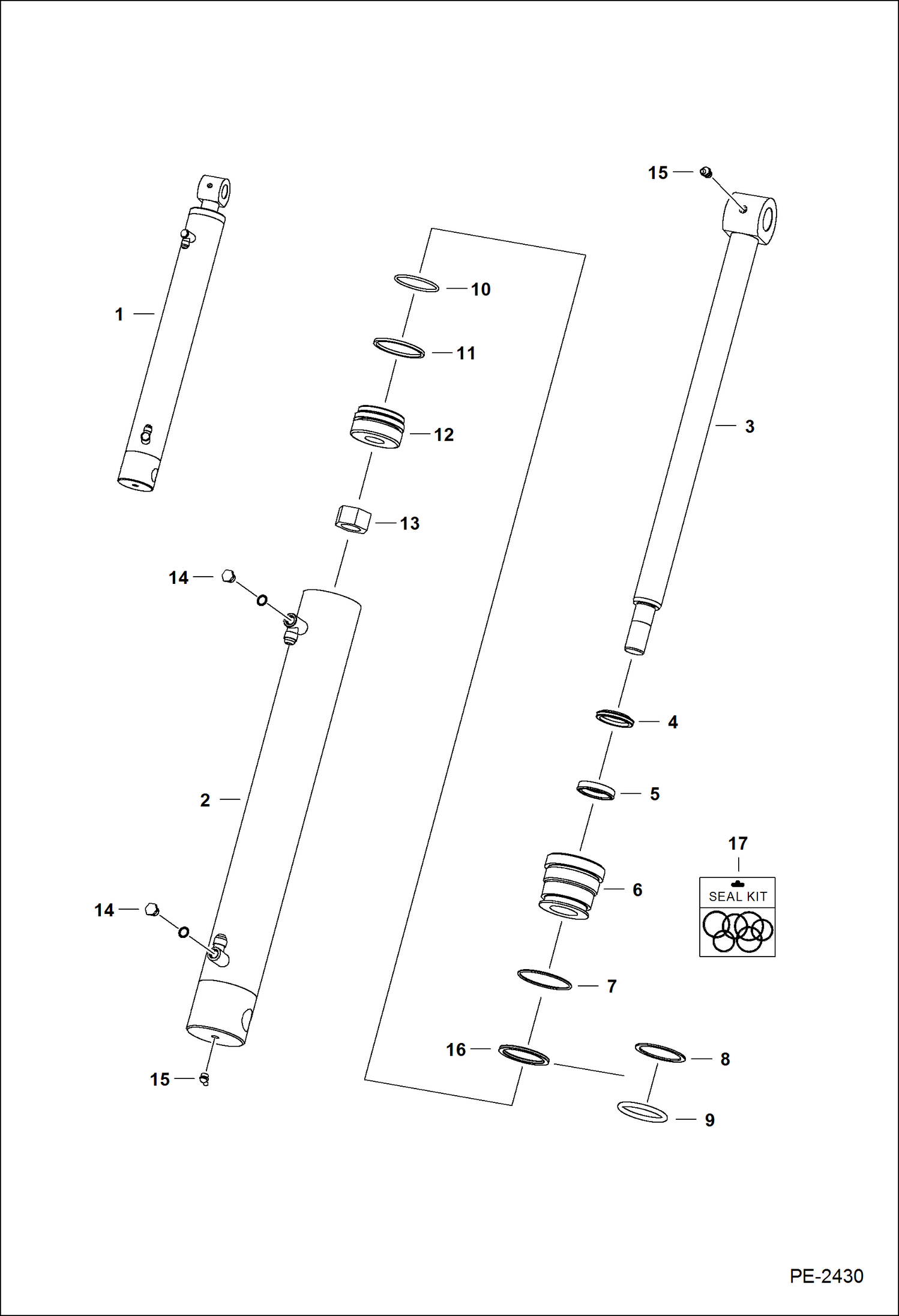

Запчасти Bobcat Mini Tracks Loaders LIFT CYLINDER HYDRAULIC SYSTEM

1

6814795

CYLINDER Ref. 2-15

2

6814799

CASE

3

6814796

ROD

4

6665208

SEAL wiper

5

6667324

SEAL rod

6

7106798

HEAD Was 6537162 - A

7

82K140

O-RING Was 58K000140B - B

8

73K328

RING back-up

9

25K60128

O RING 10 Was 54K60128 - A

10

25K30126

O RING 10 Was 54K30126 - B

11

6519328

SEAL

12

6808611

PISTON

13

92D14

NUT

14

6812170

PLUG

14

75K3

O-RING

15

11H15

GREASE FITTING

16

SEAL. QUAD NLA - Order Ref. 8 & 9 - Was 7207334 - A

17

7137786

KIT, SEAL Ref. 4, 5, 7-11, 13 - Was 6808805 - A
