Запчасти Bobcat Mini Tracks Loaders BRAKES DRIVE TRAIN

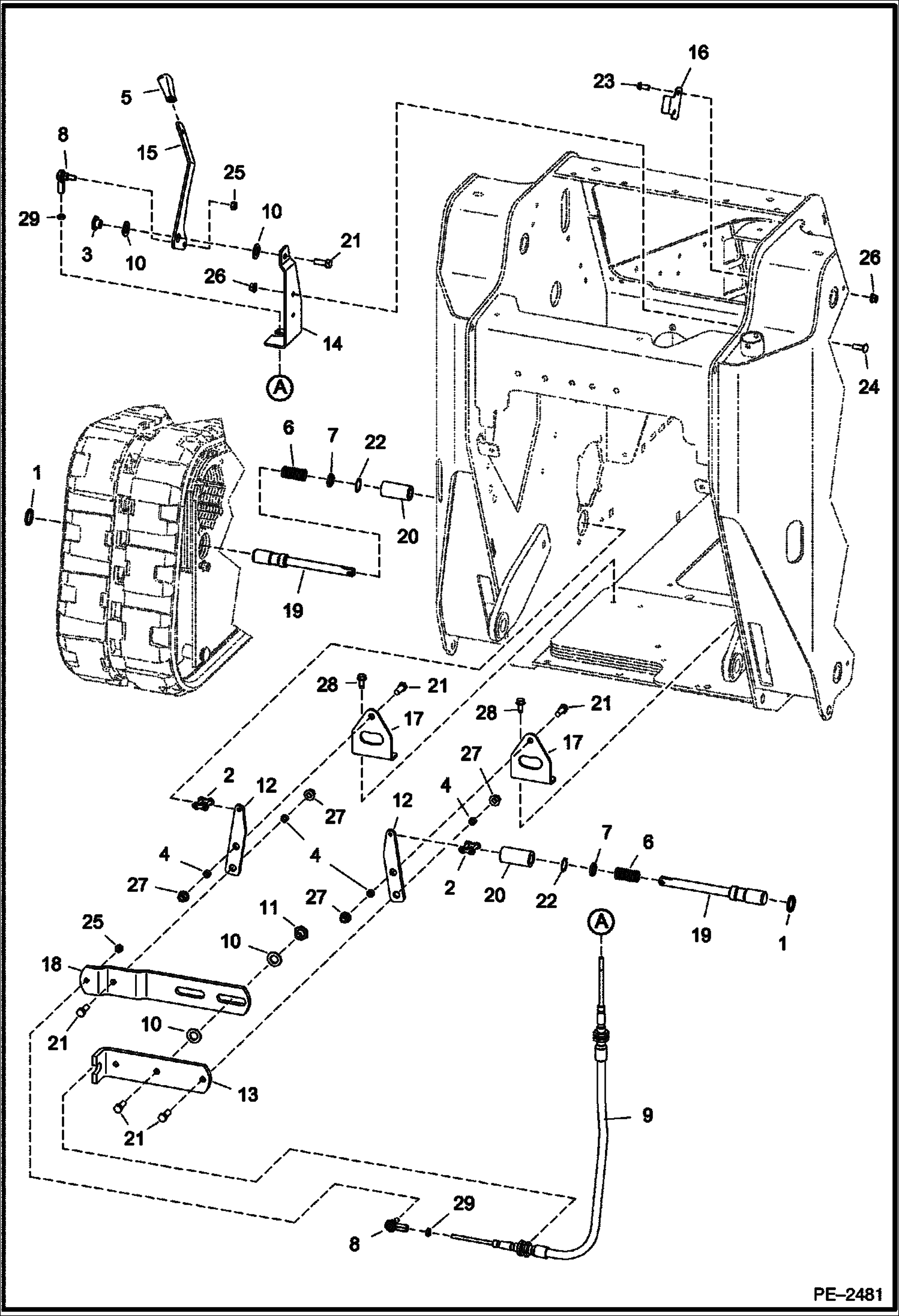

Схема запчастей Bobcat Mini Tracks Loaders - BRAKES DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

1990599

WIPER

2

6515186

CONNECTOR

3

6559479

NUT retaining

4

6562619

BUSHING

5

6564452

GRIP

6

6679144

SPRING

7

6684131

SEAL wiper

8

6684451

ROD END

9

6685462

CABLE

10

6700170

WASHER

11

7209783

NUT, RETAINING Was 6729750 - A

12

6736464

LEVER brake

13

6736465

MOUNT cable lower

14

6736466

MOUNT cable upper

15

6736467

HANDLE brake

16

6736468

RETAINER handle

17

6736469

MOUNT brake lever

18

6736654

MOUNT cable lower

19

7104837

PIN brake

20

7104838

SPACER

21

17C616

BOLT 5

22

23J16

SNAP RING

23

25G512

SCREW

24

37C516

BOLT

25

82D5

NUT 5

26

83D5

NUT 5

27

83D6

NUT 5

28

84G3112

BOLT 5

29

8D5

NUT

Выбрано товаров: 29
