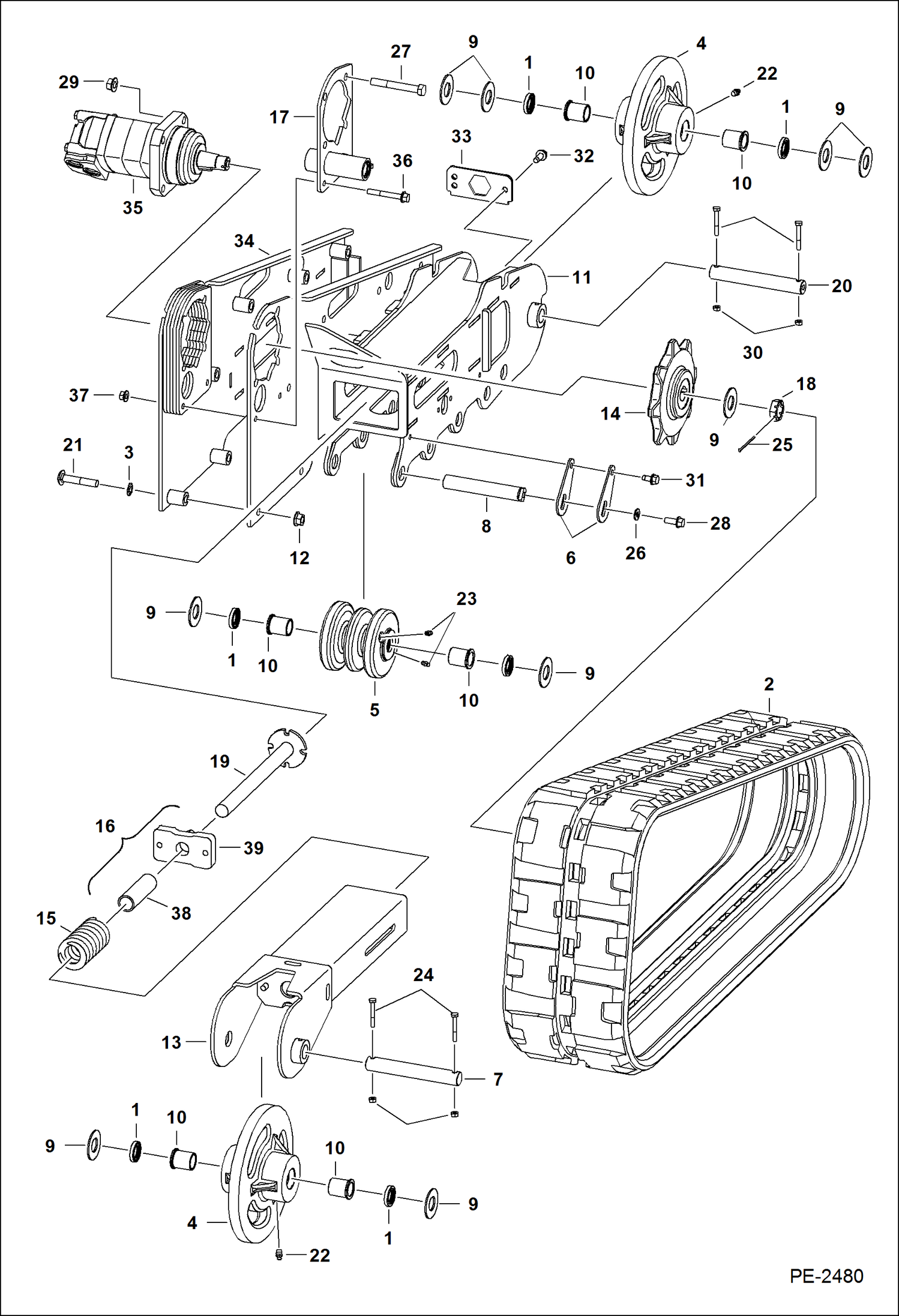

Запчасти Bobcat Mini Tracks Loaders DRIVE TRAIN DRIVE TRAIN

1

6679135

SEAL

2

TRACK, RUBBER See Illustration TRACKS/ NA6173

3

6685062

RETAINER

4

IDLER, TRACK FRONT NLA - Use W/Ref. 22 - Order 7109408 idler and Ref. 23 - Was 7109408 - B

4

7109408

IDLER, TRACK FRONT Use W/Ref. 23

5

7109409

ROLLER, TRACK Was 6730683 - A

6

PIN NLA - pin lock - Order 7171811 pin - Was 6730699 - A

6

7171811

PIN pin lock

7

6730701

PIN idler

8

6730702

PIN keyed

9

6732013

WASHER thrust

10

6732271

BUSHING, PRESS FIT

11

6737640

FRAME track - RH

11

6737641

FRAME track - LH

12

97D8

NUT

13

7107146

ARM

14

7107228

SPROCKET, MOTOR DRIVE TRACK

15

6736844

SPRING

16

PLATE, ADJUSTMENT NLA - tensioner - Order Ref. 38 & 39 - Was 6736846 - A

17

6737642

PLATE pump - RH

17

6737643

PLATE pump - LH

18

5200255

NUTCASTLE slotted

19

6737352

ROD tensioner

20

7100963

PIN idler

21

7111742

BOLT Was 10C000844B - A

21

7114313

BOLT longer square neck-fully threaded

22

10H25

FITTING, GREASE 5

22

10H25

FITTING, GREASE 5

23

10H35

FITTING, GREASE 10

23

10H35

FITTING, GREASE 10

24

17C432

BOLT

25

1F440

PIN

26

25E17

WASHER 5

27

17C860

BOLT

28

45C616

BOLT

29

97D8

NUT

30

61D4

NUT 5

31

84G3712

BOLT 5

32

84G3716

SCREW 5

33

7102230

PLATE TENSION

34

6737563

PLATE spacer - RH

34

6737562

PLATE spacer - LH

35

MOTOR See Illustration DRIVE MOTOR/ B22764 See Illustration DRIVE MOTOR/ B22764A

36

31C644

BOLT

37

83D6

NUT 5

38

6736847

SPACER

39

7171912

PLATE, PRESSURE
