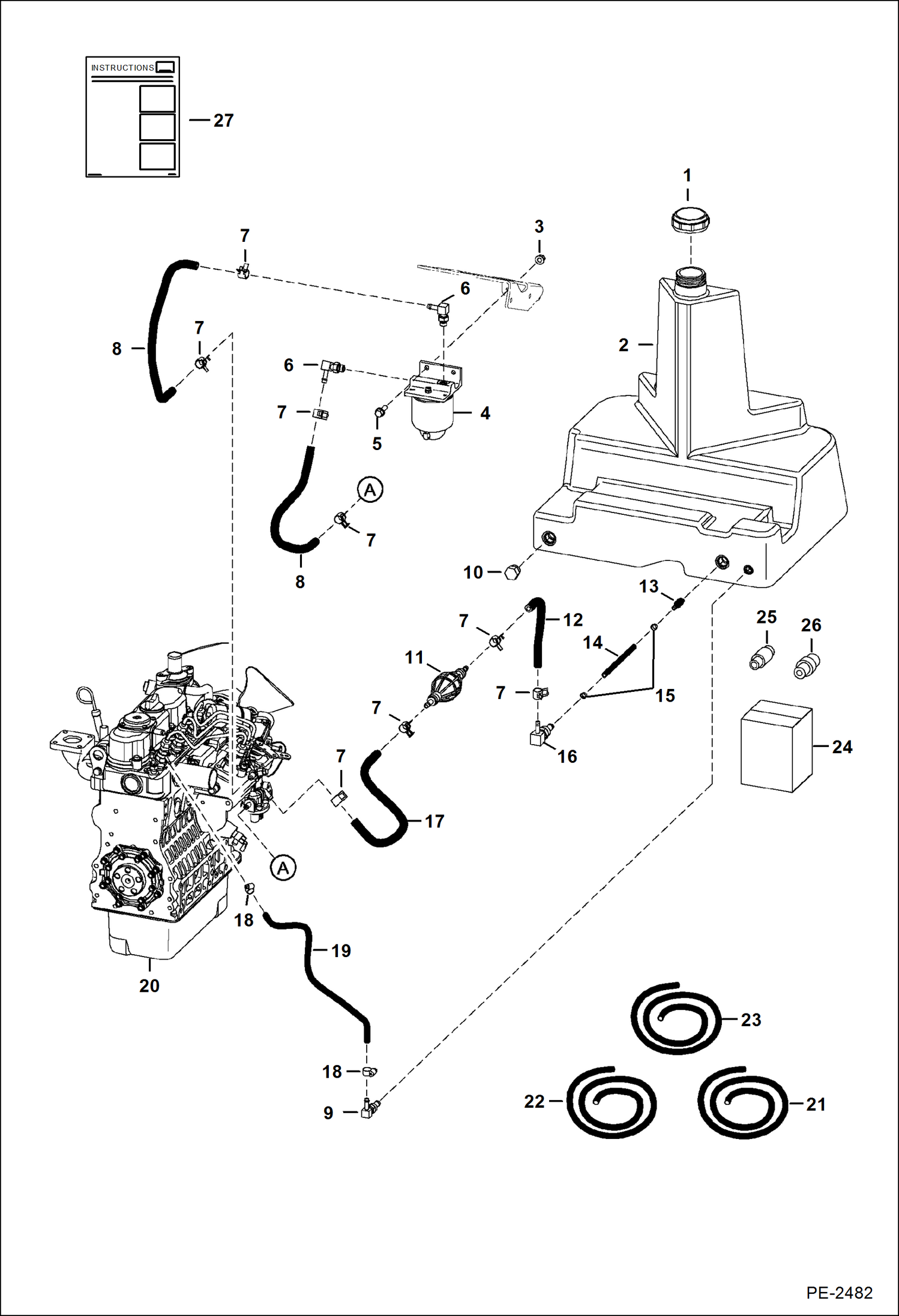

Запчасти Bobcat Mini Tracks Loaders FUEL SYSTEM (S/N 538711001-538711680) MAIN FRAME

1

6684012

FUEL CAP fuel

2

FUEL TANK ASMBLY See Illustration FUEL SYSTEMS/ PE2867 NLA - Order 7104121 tank assembly

3

83D5

NUT 5

4

6667353

FILTER ASSY

4

6667352

FILTER, FUEL W/SEPARATOR 12

4

72F1

FITTING

4

6658180

PLUG, BLEED

5

35C516

BOLT 10

6

6715183

ELBOW

6

99K5

O-RING

7

5HM14

CLAMP

8

HOSE NLA - 16.5'' (419,1 mm) long - Order Ref. 21

9

6657042

ELBOW

10

24K6

FITTING

11

6667170

PUMP 193 mm (7.6'') long

12

HOSE NLA - 4.5'' (114,3 mm) long - Order Ref. 21

13

6650239

SCREEN, FUEL PICKUP

14

HOSE NLA - 9'' (228,6 mm) long - Order Ref. 22

15

6661213

RING, COMPRESSION

16

7101669

ELBOW BARBED

17

HOSE NLA - 27.5'' (698,5 mm) long - Order Ref. 21

18

42HS04

CLAMP, HOSE Was 6515575 - A

19

HOSE NLA - 29.5'' (749,3 mm) - Order Ref. 23

20

ENGINE, D902E2B-BC-1 See Illustration ENGINE & GASKET KITS/ B24948

21

6577822

HOSE bulk - sold per foot

22

6569752

HOSE BULK/FT bulk - sold per foot

23

6578169

HOSE bulk - sold per foot - 0.19'' ID

24

7144340

TANK KIT, FUEL fuel tank service

24

6986587

INSTRUCTIONS

25

7143532

PILOT TOOL pilot - .902'' (22,9 mm) O.D. - See Ref. 24 (6986587 instructions) for details

26

7144244

PILOT TOOL pilot - 1.139'' (28,93 mm) O.D. - See Ref. 24 (6986587 instructions) for details
