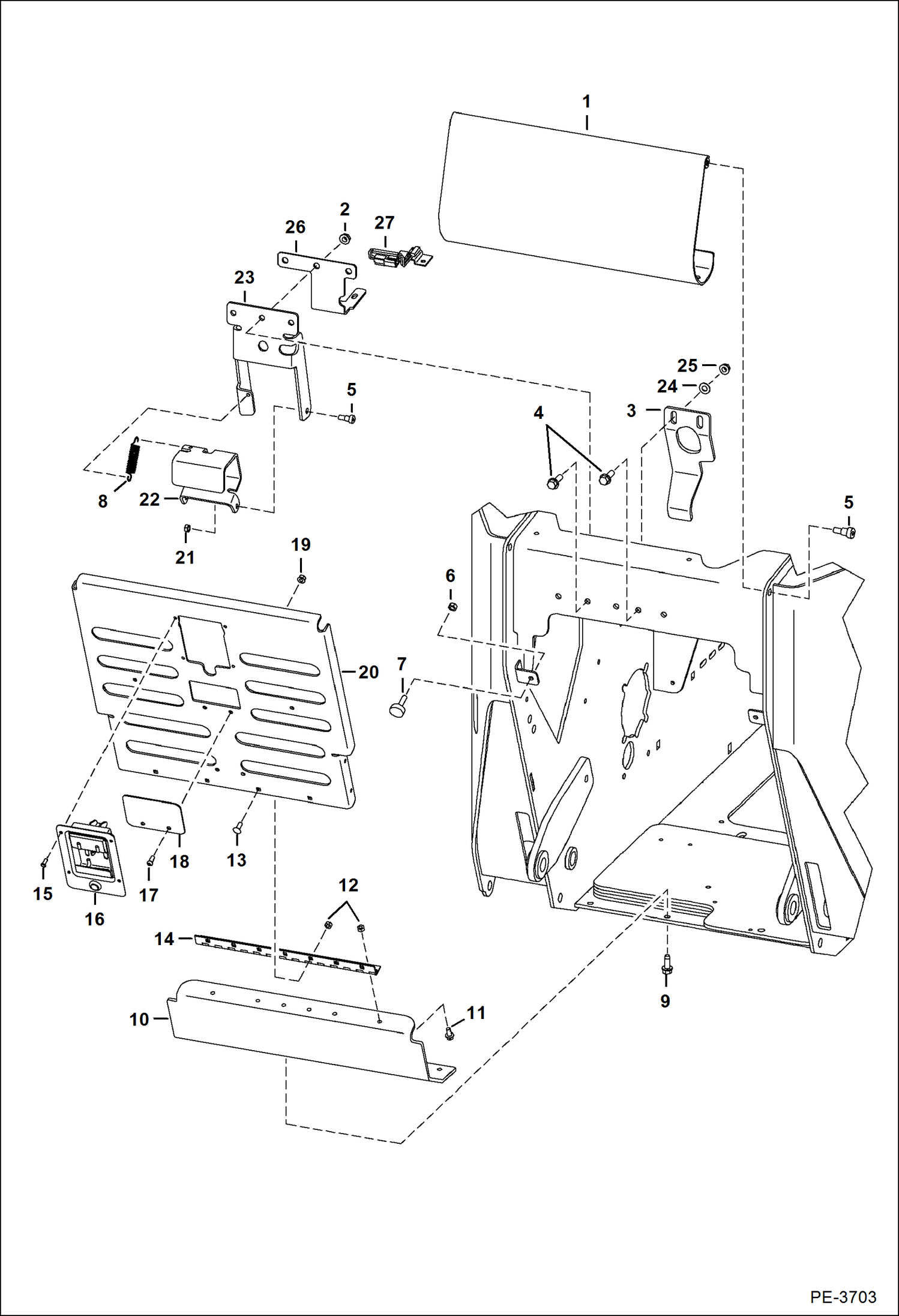

Запчасти Bobcat Mini Tracks Loaders REAR DOOR MAIN FRAME

1

6735960

PANEL ASSY stop

2

57D6

NUT 5

3

6736446

PLATE catch

4

31C620

BOLT

5

38C808

BOLT

6

61D5

NUT

7

6655399

BUMPER

8

6563128

SPRING

9

84G3716

SCREW 5

10

6735903

PANEL

11

35C412

BOLT

12

59D4

NUT 5

13

10C412

BOLT

14

6737527

HINGE

15

6685973

RIVET POP

16

6685226

LATCH

17

25G410

CAPSCREW

18

6737654

COVER light

19

59D4

NUT 5

20

6736447

REAR DOOR

21

85D5

NUT 5

22

6737327

BRACKET reverse stop

23

7113185

MOUNT reverse stop

24

25E17

WASHER 5

25

59D6

NUT

26

7133131

BRACKET

27

7124958

SENSOR See Illustration ENGINE ELECTRICAL CIRCUITRY/ PE3706
