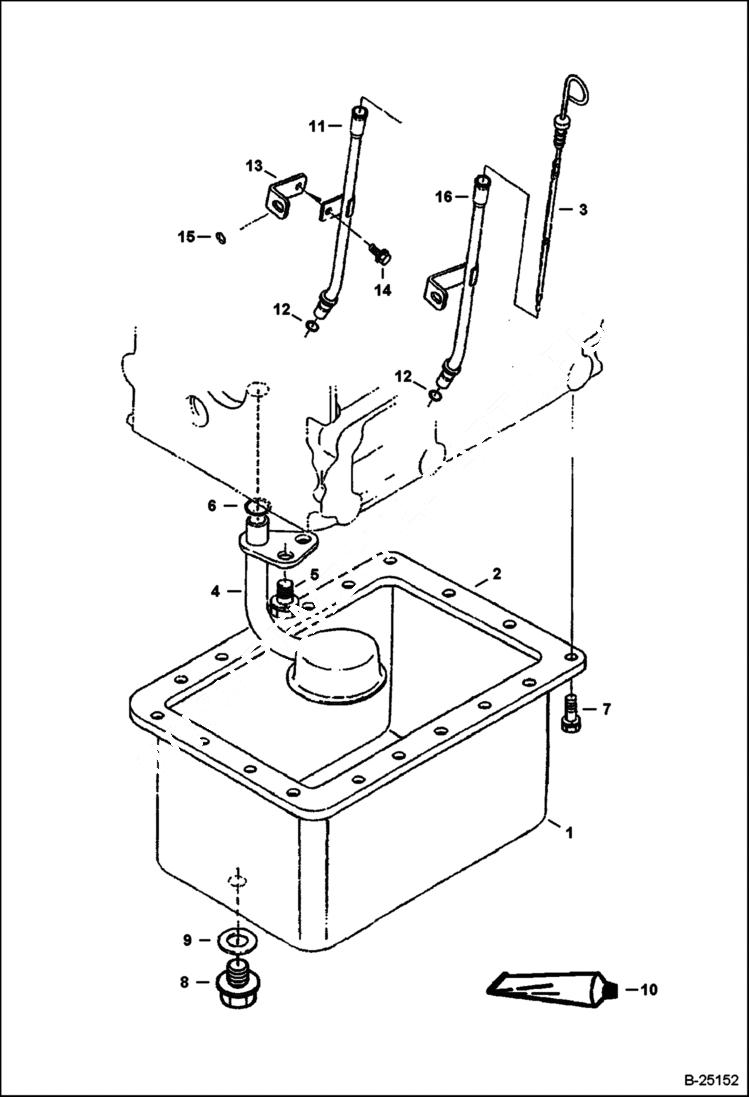

Запчасти Bobcat Mini Tracks Loaders OIL PAN (Kubota D722-EB-BC-4) (Tier I) (S/N 5236 11001 & Above, 5237 11001 & Above) POWER UNIT

1

6685739

PAN W/O Adapter

2

GASKET NLA - Use Ref. 10

3

6678938

DIPSTICK

4

6670348

SCREEN oil pickup

5

6667420

BOLT

6

3966516

O RING See Illustration ENGINE & GASKET KITS/ B16486 INCLUDED W/LOWER GASKET KIT

7

1CM612

BOLT Was 4CM612 - A

8

3974402

PLUG

9

6640730

WASHER Sealing

10

6632823

GASKET liquid - Use between Ref. 1 & block

11

GUIDE NLA - dipstick - W/Ref. 12 - Order Ref. 16 - Was 6678939 - A

12

6673314

O-RING

13

SUPPORT NLA - dipstick - Order Ref. 16 - Was 6678940 - A

14

29CM612

BOLT, FLANGED Was 6652762 - A

15

6EM80

WASHER, SPRING

16

6692965

GUIDE dipstick - W/Ref. 12
