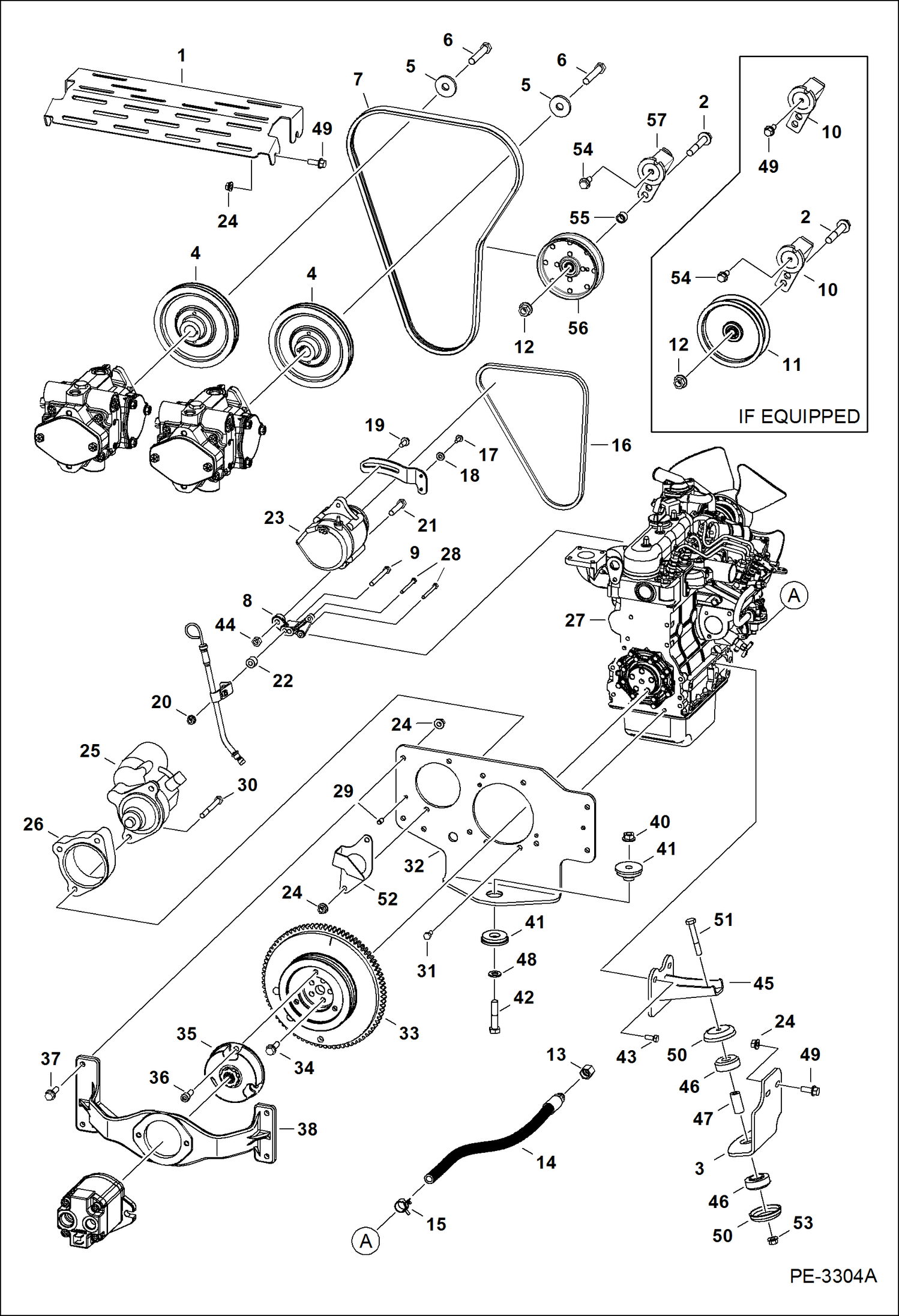

Запчасти Bobcat Mini Tracks Loaders ENGINE & ATTACHING PARTS (Engine Mounts) ((S/N 528711001 & Above, 528811001 & Above) POWER UNIT

1

6736471

SHIELD belt/muffler

2

31C848

BOLT engine

3

7132696

BRACKET engine

4

6737124

PULLEY

5

616783

WASHER

5

7142032

WASHER

6

18C624

BOLT

6

7142031

BOLT

7

6684749

BELT DRIVE 3/V2

8

7101358

MOUNT alternator

9

17C548

BOLT

10

6683883

TENSIONER belt

11

6686225

PULLEY IDLER

12

83D8

NUT 5

13

36K6

CAP

14

6713504

HOSE

15

5HM20

CLAMP

16

6686683

BELT, ALT

17

29CM616

BOLT

18

25E13

WASHER 5

19

29CM820

SCREW

20

83D5

NUT 5

21

1CM1050

SCREW

22

6732978

SPACER

23

ALTERNATOR See Illustration ALTERNATOR/ C3456

24

83D6

NUT 5

25

STARTER See Illustration STARTER/ D2396

26

6562198

SPACER

27

ENGINE See Illustration ENGINE & GASKET KITS/ B16486A

28

1CM660

BOLT

29

7101341

PIN

30

17C652

BOLT

31

55CM816

BOLT

32

7132695

MOUNT engine

33

6735054

FLYWHEEL ASSY

33

6800424

RING-GEAR

34

6661636

BOLT flywheel

35

6683843

COUPLER drive

36

6805750

SCREW

37

35C624

BOLT

38

6735052

MOUNT pump

39

7101372

BRACKET alternator

40

51DM12

NUT

41

6691268

MOUNT engine - three piece - orientate per parts breakdown drawing

42

7CM1260

BOLT

43

6733378

SCREW

44

53DM10

NUT

45

7132697

MOUNT

46

6691082

ISOLATOR centrally locate within Ref. 3

47

7129974

BUSHING

48

18EM1224

WASHER

49

35C616

BOLT 5

50

7110825

SHIELD ENG MOUNT

51

7CM1070

BOLT

52

7102645

SHIELD

53

51DM10

NUT
