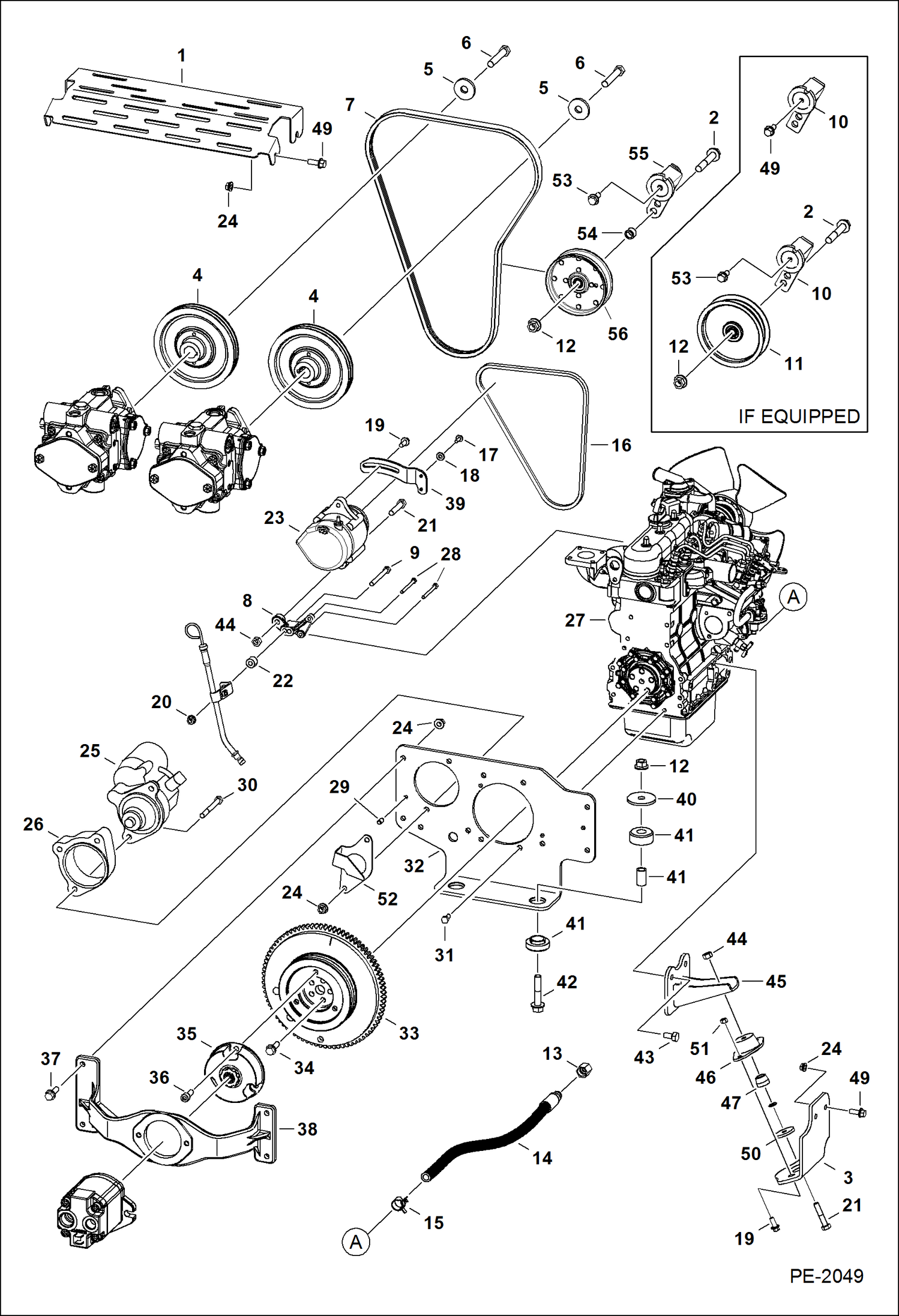

Запчасти Bobcat Mini Tracks Loaders ENGINE & ATTACHING PARTS (Engine Mounts) (S/N 523611001 & Above, 523711001 & Above) POWER UNIT

1

6736471

SHIELD belt/muffler

2

31C848

BOLT engine

3

7113470

BRACKET engine - Was 6731306 - C

4

6737124

PULLEY

5

616783

WASHER

5

7142032

WASHER

6

18C624

BOLT

6

7142031

BOLT

7

6684749

BELT DRIVE 3/V2

8

7101358

MOUNT alternator

9

17C548

BOLT

10

6683883

TENSIONER belt

11

6686225

PULLEY IDLER Was 6683882 - A

12

83D8

NUT 5

13

36K6

CAP

14

6713504

HOSE

15

5HM20

CLAMP

16

6808629

BELT

16

6686683

BELT, ALT

17

29CM616

BOLT

18

25E13

WASHER 5

19

29CM820

SCREW

20

83D5

NUT 5

21

1CM1050

SCREW

22

6732978

SPACER

23

ALTERNATOR See Illustration ALTERNATOR/ C3456

24

83D6

NUT 5

25

STARTER See Illustration STARTER/ D2396

26

6562198

SPACER

27

ENGINE See Illustration ENGINE & GASKET KITS/ B16486

28

1CM660

BOLT

29

7101341

PIN

30

17C652

BOLT

31

55CM816

BOLT

32

6735050

MOUNT engine

33

6735054

FLYWHEEL ASSY

33

6800424

RING-GEAR

34

6661636

BOLT flywheel

35

6683843

COUPLER drive

36

6805750

SCREW Was 6735055 - B

37

35C624

BOLT Was 35C000620B - B

38

6735052

MOUNT pump

39

7101372

BRACKET alternator

40

6564692

WASHER

41

6677919

MOUNT engine

42

31C844

BOLT Was 35C000844B - B

43

6733378

SCREW

44

53DM10

NUT

45

6736967

MOUNT ENGINE Was 6806246 - A

46

6653764

MOUNT

47

6804522

SPACER

48

15EM100

WASHER

49

35C616

BOLT 5

50

872229

WASHER

51

53DM8

NUT

52

7102645

SHIELD
