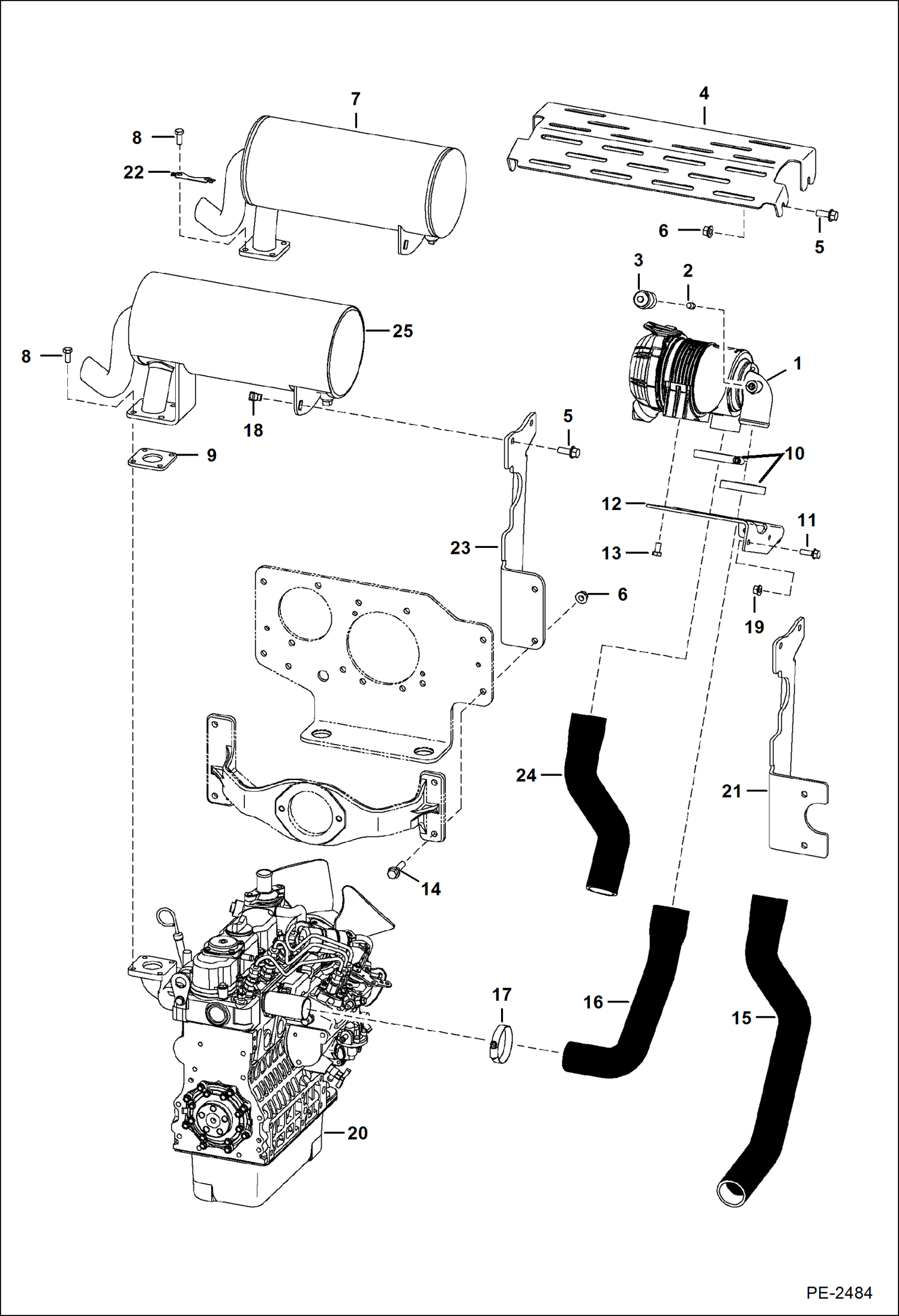

Запчасти Bobcat Mini Tracks Loaders ENGINE & ATTACHING PARTS (Intake & Exhaust) (S/N 528711001 & Above, 528811001 & Above) POWER UNIT

1

6692947

FILTER See Illustration AIR FILTER/ PE2566 Was 6686859 - A

2

5K106

NIPPLE

3

6515007

GAUGE

4

6736471

SHIELD belt

5

35C616

BOLT 5

6

83D6

NUT 5

7

MUFFLER NLA - Order Ref. 25 - Was 6683183 - A

7

MUFFLER See Illustration MUFFLER/PURIFIER/ PE2494 purifier - Was 6684439 - A

8

6701123

SCREW

9

6575580

GASKET muffler

10

42HL300

CLAMP

11

35C516

BOLT 10

12

7108124

BRACKET

13

55CM816

BOLT

14

35C624

BOLT

15

7108069

HOSE

16

7108990

HOSE

17

42HL250

CLAMP

18

6678785

NUT retainer

19

83D5

NUT 5

20

ENGINE See Illustration ENGINE & GASKET KITS/ B16486A

21

7103752

MOUNT MUFFLER

22

7103688

CLIP exhaust

23

7127190

BRACKET

24

7127188

HOSE

25

6693897

MUFFLER
