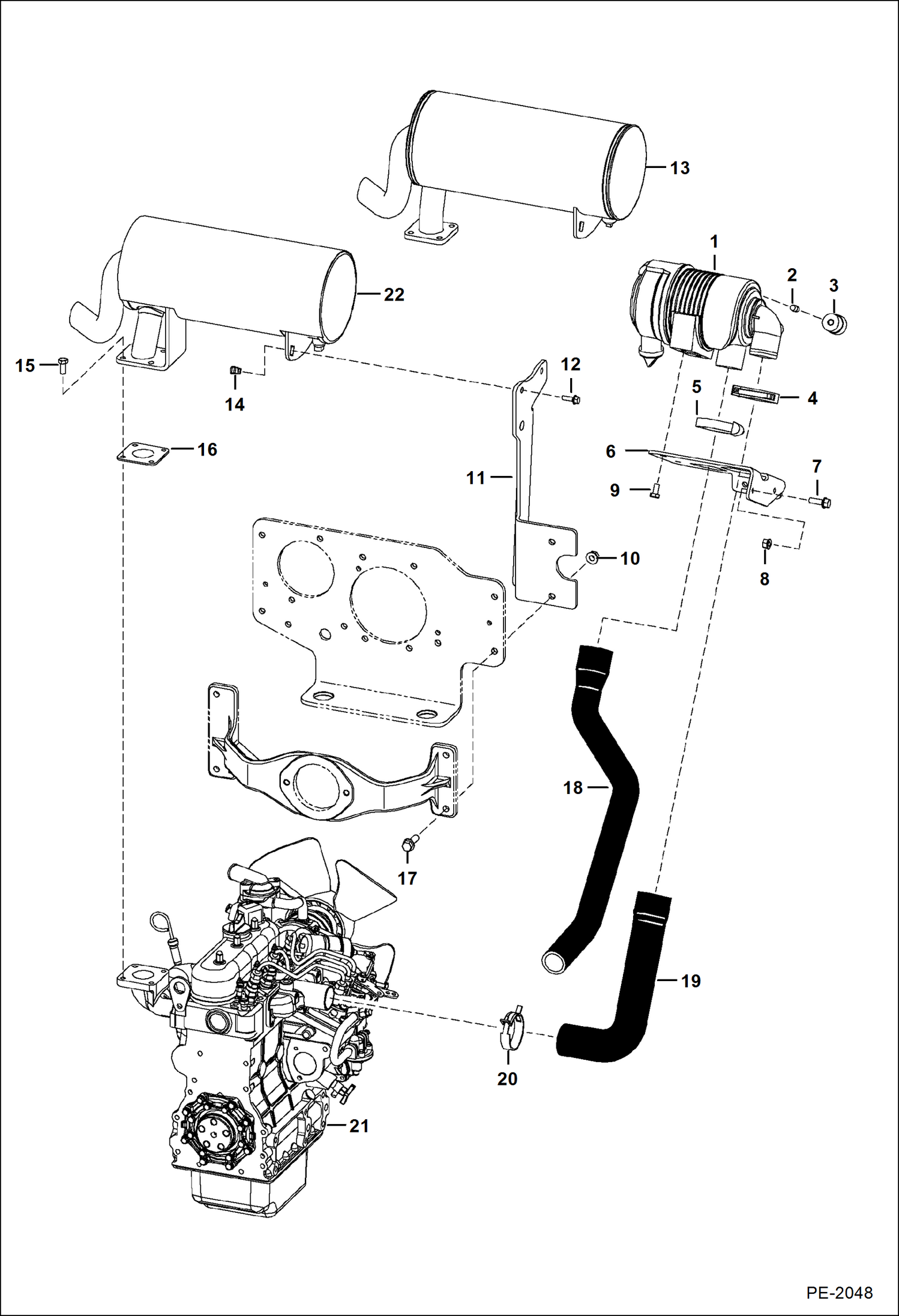

Запчасти Bobcat Mini Tracks Loaders ENGINE & ATTACHING PARTS (Intake & Exhaust) (S/N 523611001 & Above, 523711001 & Above) POWER UNIT

1

6675529

FILTER See Illustration AIR FILTER/ C3528

2

5K106

NIPPLE

3

6515007

GAUGE

4

5HM58

CLAMP

5

42H32

HS CLAMP5

6

6735057

BRACKET

7

35C516

BOLT 10

8

83D5

NUT 5

9

55CM816

BOLT

10

83D6

NUT 5

11

6735067

BRACKET

12

35C616

BOLT 5

13

MUFFLER NLA - Order Ref. 22 - Was 6683183 - A

13

MUFFLER See Illustration MUFFLER/PURIFIER/ PE2494 purifier - Was 6684439 - A

14

6678785

NUT retainer

15

6701123

SCREW

16

6575580

GASKET muffler

17

35C624

BOLT

18

6735999

HOSE

19

6735078

HOSE

20

5HM53

CLAMP

21

ENGINE See Illustration ENGINE & GASKET KITS/ B16486

22

6693897

MUFFLER
