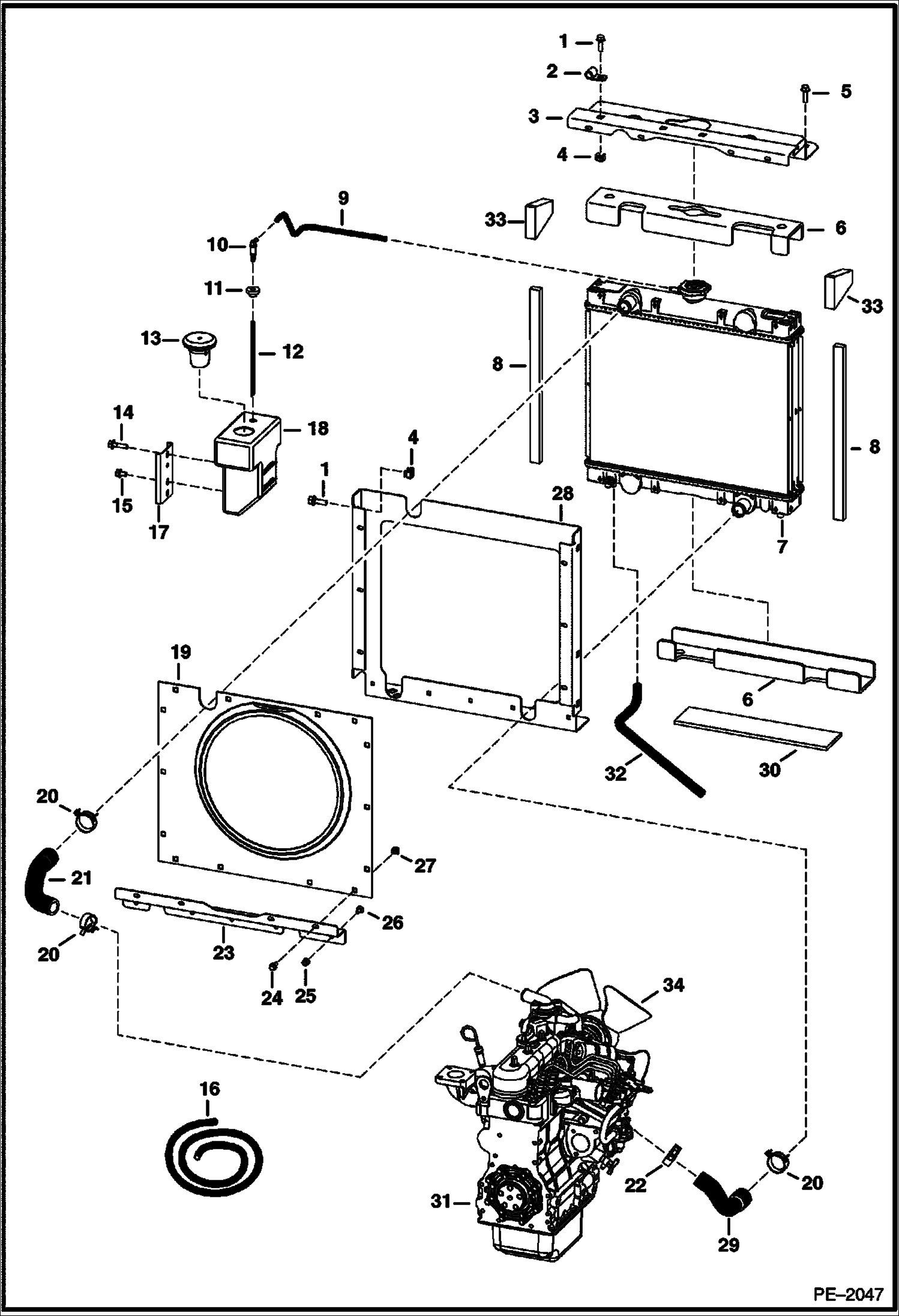

Запчасти Bobcat Mini Tracks Loaders ENGINE & ATTACHING PARTS (Cooling Group) (S/N 523611001 & Above, 523711001 & Above) POWER UNIT

1

35C516

BOLT 10

2

30H32

CLIP

3

6735069

SHIELD cooler

4

6678765

NUT retaining

5

84G3112

BOLT 5

6

6735843

FOAM cooler

7

6682991

RADIATOR

7

6646678

CAP

8

6736585

SEAL foam cooler

9

HOSE NLA - 14'' (355,6 mm) long - Order Ref. 16

10

6681462

ELBOW

11

6553411

BUSHING

12

6736598

TUBE

13

6702797

CAP coolant tank

14

35C520

BOLT

15

35C510

BOLT Was 35C000508B - B

16

6569752

HOSE BULK/FT bulk - sold per foot

17

6736194

MOUNT coolant recovery

18

6736093

TANK coolant recovery

19

6736754

PANEL fan shroud

20

5HM38

CLAMP, HOSE Was 5HM00035B - B

21

6735063

HOSE upper

22

5HM30

CLAMP

23

6736100

MOUNT cooler

24

35C410

BOLT 5

25

83D4

NUT 10

26

10C412

BOLT Was 10C000410B - B

27

6678766

NUT retaining

28

7115461

MOUNT cooler - Was 6735065 - A

29

6735062

HOSE lower

30

6735068

GASKET cooler mount

31

ENGINE See Illustration ENGINE & GASKET KITS/ B16486

32

7101725

HOSE coolant drain

33

7101479

SEAL

34

6685741

FAN 5 Blade
