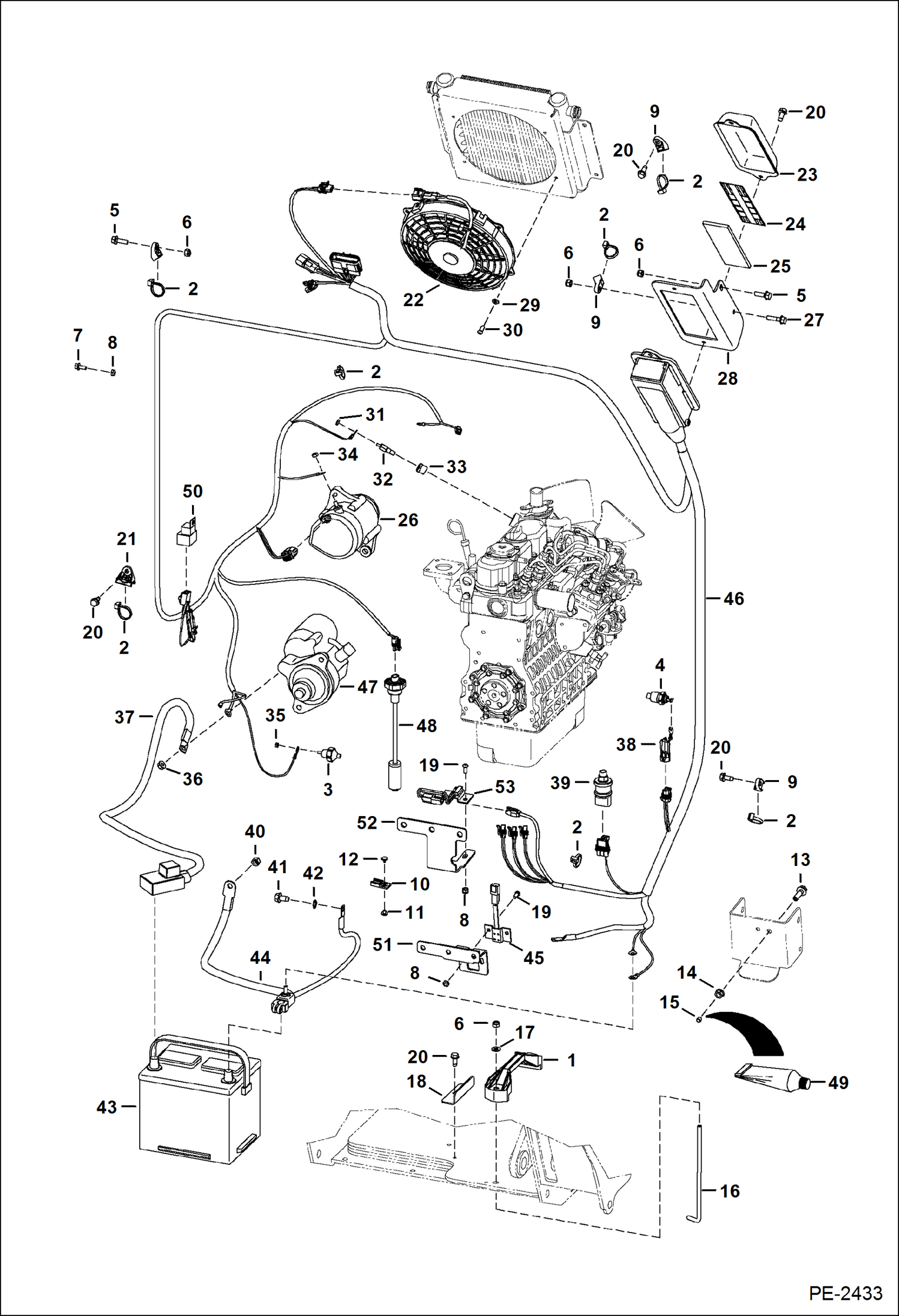

Запчасти Bobcat Mini Tracks Loaders ENGINE ELECTRICAL CIRCUITRY (S/N 528711001 & Above, 528811001 & Above) ELECTRICAL SYSTEM

1

6569203

CLAMP battery

2

6624289

STRAP, TIE

3

6631010

SWITCH, PRESS OIL ENG eng oil pres

4

6632633

SWITCH hyd temp

5

35C516

BOLT 10

6

59D5

NUT 5

7

35C410

BOLT 5

8

85D4

NUT 5

8

59D4

NUT 5

9

6678667

MOUNT heavy duty

10

6665000

CLIP

11

6665322

RIVET female

12

6665321

RIVET male

13

6737499

BOLT neutral start

14

57D6

NUT 5

15

6685019

MAGNET neutral start

16

6736197

BOLT battery

17

25E15

WASHER

18

6736570

BRACKET battery

19

25G410

CAPSCREW

20

84G3112

BOLT 5

21

6678818

MOUNT

22

6680160

FAN

23

6716621

COVER fuse/relay

24

7109680

DECAL fuse/relay

25

6731275

INSULATION

26

ALTERNATOR, 40 AMP See Illustration ALTERNATOR/ C3456

27

35C520

BOLT

28

6736304

MOUNT

29

25E11

WASHER

30

6733377

BOLT

31

14D10

NUT

32

6658818

SENDER eng temp - threaded connector

33

19F2

BUSHING reducer

34

1DM6

NUT Was 4DM6 - A

35

12D8

NUT

36

43DM8

NUT

37

6736344

CABLE positive

38

7102185

HARNESS JUMPER jumper

39

6682585

SWITCH hydro charge pressure

40

95D6

NUT

41

84G3712

BOLT 5

42

6E6

WASHER

43

6670251

BATTERY, DRY 530 AMP

43

6630154

CAP gang - danger

43

6630155

CAP gang - poison

43

6514898

CAP tilt-tite

44

6736345

CABLE negative

45

SENSOR NLA - neutral start - Order Ref. 53 - Also replace Ref. 51 W/Ref. 52 - Was 6737671 - A

46

7111748

HARNESS engine - Was 7105206 - A

46

6654805

FUSE 10A - A

46

6654806

FUSE, 15A

46

6702444

FUSE 25A 5

46

6718034

FUSE, 30A

46

6679820

RELAY relay

46

6673200

FUSE BLOCK

46

6632453

BOOT

47

STARTER See Illustration STARTER/ D2396

48

7216452

SENSOR, FUEL W/gasket - Was 6685125 - A

48

6717579

GASKET

49

6649654

ADHESIVE

50

6670872

TIMER fuel shut-off

51

BRACKET NLA - Order Ref. 52 - Also replace Ref. 45 W/Ref. 53 - Was 7124959

52

7133131

BRACKET

53

7124958

SENSOR neutral start
