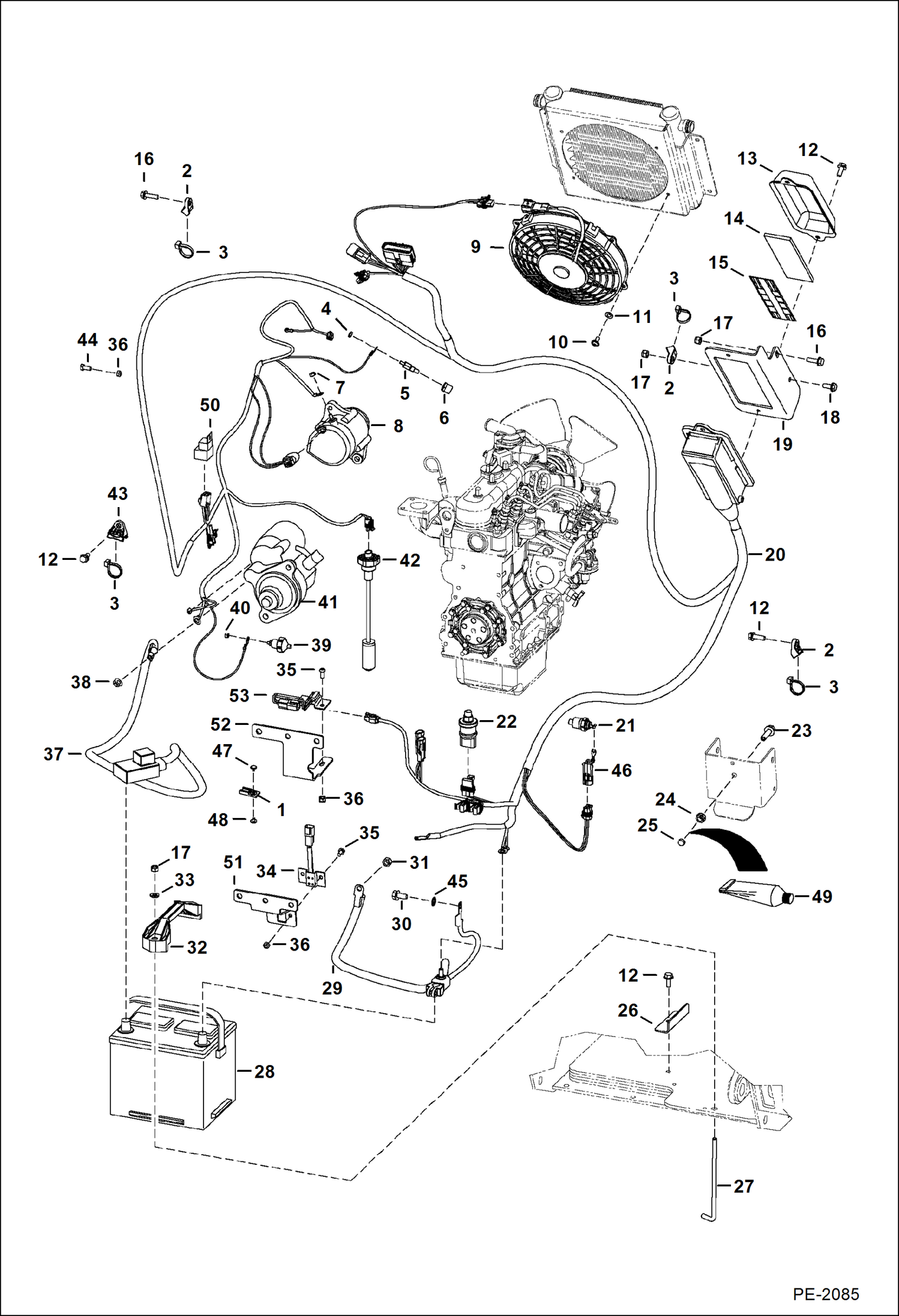

Запчасти Bobcat Mini Tracks Loaders ENGINE ELECTRICAL CIRCUITRY (S/N 523611001 & Above, 523711001 & Above) ELECTRICAL SYSTEM

1

6665000

CLIP

2

6678667

MOUNT heavy duty

3

6624289

STRAP, TIE

4

14D10

NUT

5

6658818

SENDER eng temp - threaded connector

6

19F2

BUSHING reducer

7

1DM6

NUT Was 4DM6 - A

8

ALTERNATOR See Illustration ALTERNATOR/ C3456

9

6680160

FAN

10

6733377

BOLT

11

25E11

WASHER

12

84G3112

BOLT 5

13

6716621

COVER fuse/relay

14

6731275

INSULATION

15

6737072

DECAL fuse/relay - check part number of decal before ordering

15

7120889

DECAL fuse/relay - check part number of decal before ordering

16

35C516

BOLT 10

17

59D5

NUT 5

18

35C520

BOLT

19

6736304

MOUNT

20

6736042

HARNESS engine

20

6673200

FUSE BLOCK

20

6654805

FUSE 10A - A

20

6654806

FUSE, 15A

20

6702444

FUSE 25A 5

20

6718034

FUSE, 30A

20

6679820

RELAY relay

20

3675725

DIODE Was 6673200 - B

20

6632453

BOOT

21

6632633

SWITCH hyd temp

22

6682585

SWITCH hydro charge pressure

23

6737499

BOLT neutral start

24

57D6

NUT 5

25

6685019

MAGNET neutral start

26

6736570

BRACKET battery

27

6736197

BOLT battery

28

6670251

BATTERY, DRY 530 AMP

28

6630154

CAP gang - Danger

28

6630155

CAP gang - Poison

28

6514898

CAP tilt-tite

29

6736345

CABLE negative

30

84G3712

BOLT 5

31

95D6

NUT

32

6569203

CLAMP battery

33

25E15

WASHER

34

SENSOR NLA - neutral start - Order Ref. 53 - Also replace Ref. 51 W/Ref. 52 - Was 6737671 - A

35

25G410

CAPSCREW Was 25G000408B - B

36

85D4

NUT 5

37

6736344

CABLE positive

38

43DM8

NUT

39

6631010

SWITCH, PRESS OIL ENG eng oil pres

40

12D8

NUT

41

STARTER See Illustration STARTER/ D2396

42

7216452

SENSOR, FUEL W/gasket - Was 6685125 - A

43

6678818

MOUNT

44

35C410

BOLT 5

45

6E6

WASHER

46

7102185

HARNESS JUMPER jumper

47

6665321

RIVET male

48

RIVET female

49

6649654

ADHESIVE

50

6670872

TIMER fuel shut-off

51

BRACKET NLA - Order Ref. 52 - Also replace Ref. 34 W/Ref. 53 - Was 6737429 - A

52

7133131

BRACKET

53

7124958

SENSOR
