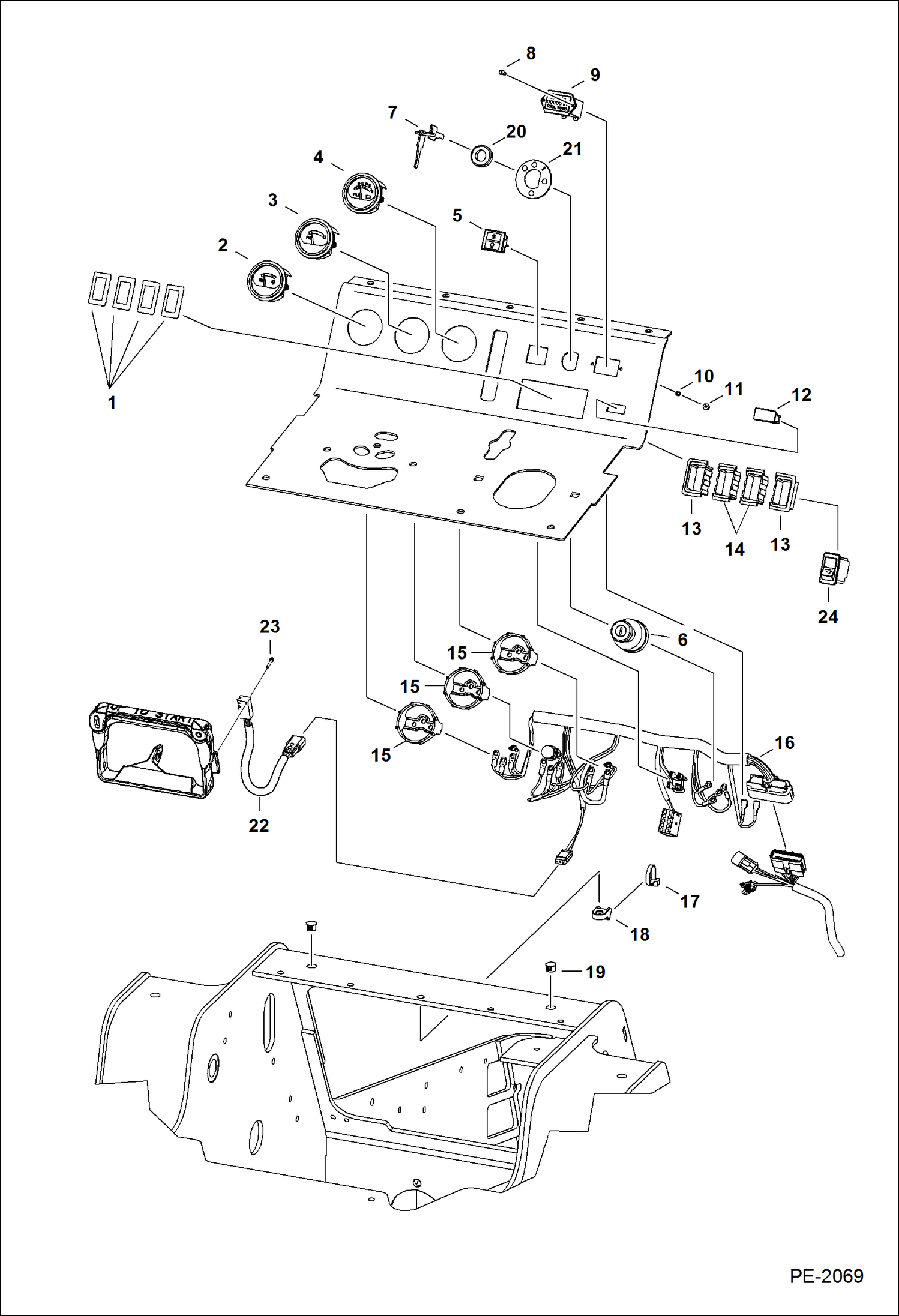

Запчасти Bobcat Mini Tracks Loaders CONSOLE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6665314

PLUG console

2

GAUGE NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

2

6669663

GAUGE

3

6634273

GAUGE, FUEL

3

6675289

BULB Was 895771B - B

4

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

4

6669664

VOLTMETER W/O clamp

5

6636018

LIGHT indicator

6

6665606

SWITCH ignition switch

7

KEY NLA - Order 6693241 - Was 6709527 - A

8

85G608

SCREW

9

6664886

HOURMETER

10

17E6

WASHER 10

11

12D6

NUT 10

12

6675181

PLUG

13

6684671

INSERT end

14

6684672

INSERT middle

15

6679027

CLAMP gauge

16

6736095

HARNESS console

17

6624289

STRAP, TIE

18

6678667

MOUNT

19

6649949

PLUG

20

6674202

NUT

21

6596218

PLATE ignition switch

22

7154313

SWITCH, MICRO

23

7153414

SCREW

24

6686371

SWITCH boom by-pass
