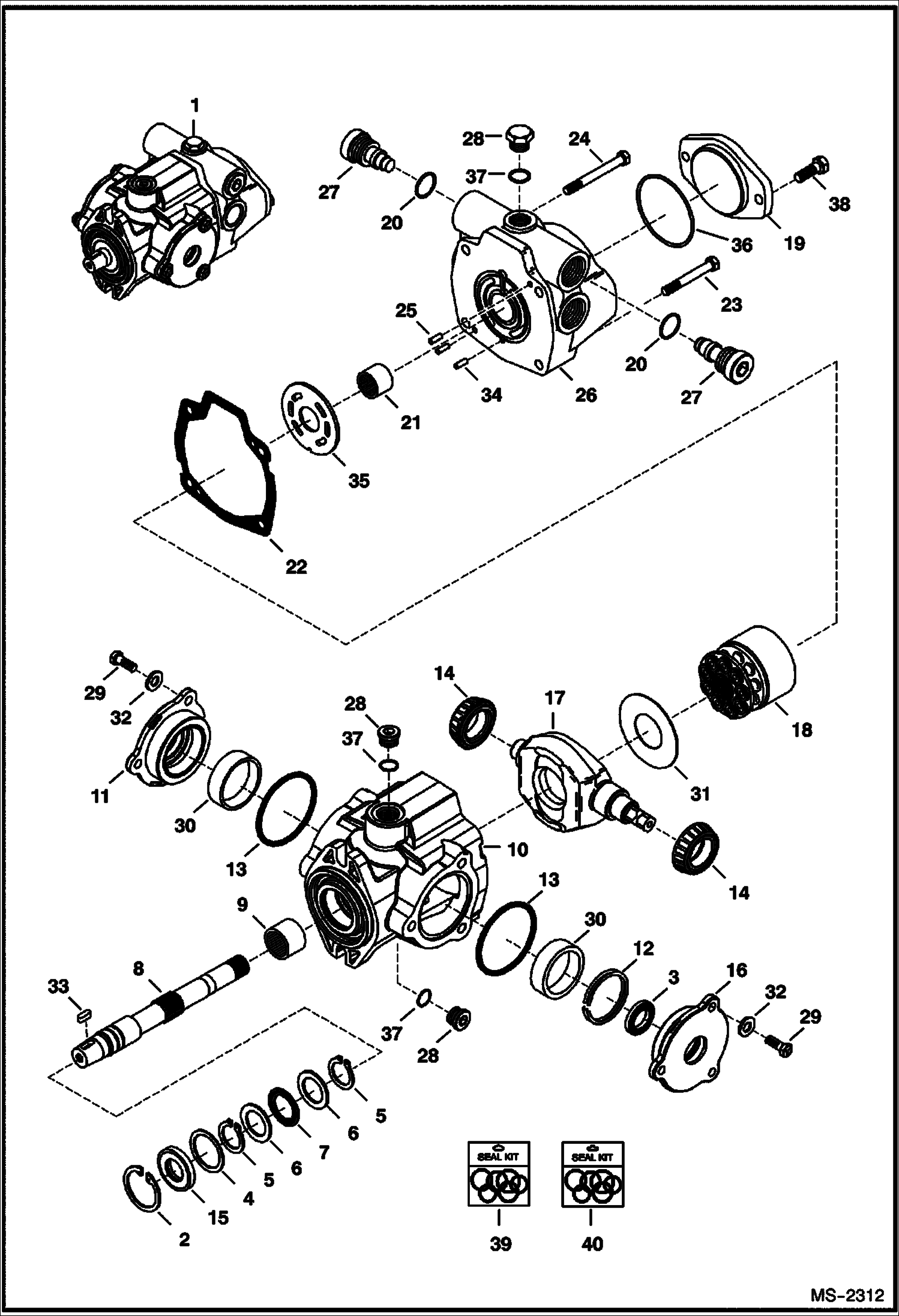

Запчасти Bobcat Mini Tracks Loaders HYDROSTATIC PUMP (S/N 528712700 & Above, 528811150 & Above) HYDROSTATIC SYSTEM

1

6691016

PUMP 70160-RKO-03

2

661415

SNAP RING

3

6656353

SHAFT SEAL Was 6635527 - D

4

6598875

WASHER

5

710776

SNAP RING

6

6598878

RACE

7

3292657

BEARING thrust

8

6691483

SHAFT drive - tappered

9

851239

BEARING

10

6677610

HOUSING W/Ref. 9 - Also Order Ref. 39

11

6677600

COVER

12

6677604

CRUSH RING

13

6677605

O-RING

14

6677598

BEARING

15

6685214

SEAL

16

6677599

COVER Also Order Ref. 39

17

6685213

PLATE yoke - square arm - Also Order Ref. 39

18

6598893

GROUP

19

6634641

REAR COVER

20

58K11

O RING 10

21

654386

BEARING

22

6635508

GASKET Was NSS - D

23

6677601

BOLT

24

6677602

BOLT

25

214028

PIN

26

6691484

HOUSING back - W/Ref. 21

27

6685215

RELIEF VALVE W/Ref. 20

28

6677607

PLUG W/Ref. 37

29

6691485

BOLT

30

6677603

CUP bearing

31

6677592

PLATE swash

32

6677593

WASHER

33

6598880

KEY

34

6677588

PIN

35

6685216

PLATE

36

25K20308

O RING 10

37

6634874

O-RING

38

6677594

SCREW

39

6677608

KIT, SEAL Ref. 2, 3, 5, 15, 20, 22, 36 & 37

40

6677502

SHIM KIT can be used in place of Ref. 12
