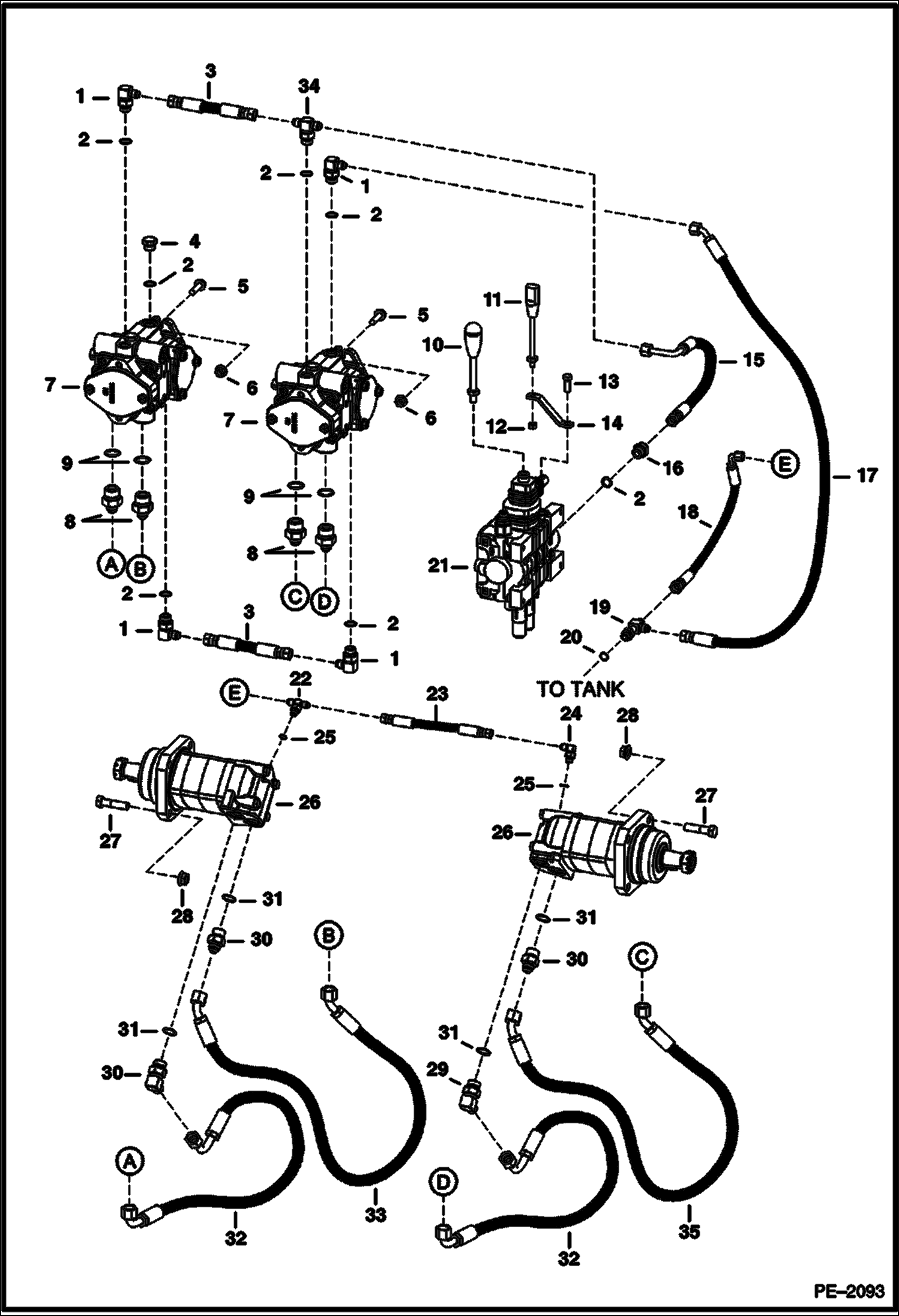

Запчасти Bobcat Mini Tracks Loaders HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

17KB0608

FITTING, HYD ELBOW W/Ref. 2

2

79K8

O RING 10

3

7106243

HOSE Was 6735738 - A

4

PLUG

5

59CM1035

BOLT

6

43DM10

NUT

7

PUMP See Illustration HYDROSTATIC PUMP/ B20883 HYDRO

8

15KB0812

FITTING, HYD CONNECTOR W/Ref. 9

9

79K12

O RING 10

10

6736130

LEVER control - lift & tilt

11

6678895

LEVER control - auxiliaries

12

1DM8

NUT

13

1CM1025

BOLT

14

6736135

BRACKET lever

15

7106242

HOSE Was 6735740 - A

16

15KB0608

FITTING, HYD CONNECTOR W/Ref. 2

17

7106244

HOSE Was 6736134 - A

18

6736133

HOSE

19

6805243

TEE W/Ref. 20

20

79K6

O RING 10

21

MAIN VALVE See Illustration WORK VALVE/ MS1911 See Illustration WORK VALVE/ MS2038

22

19KB0404

FITTING, HYD TEE W/Ref. 25

23

7108982

HOSE Was 6735733 - A

24

17KB0404

FTG HYD ELBOW 90 W/Ref. 25

25

79K4

O RING 10

26

MOTOR See Illustration DRIVE MOTOR/ B22764 drive - Was 6683005 - A

27

17C836

BOLT Was 17C000832B - B

28

97D8

NUT Was 53D000008B - B

29

17KB0810

FITTING, HYD ELBOW W/Ref. 31

30

15KB0810

FITTING, HYD CONNECTOR W/Ref. 31

31

79K10

O RING 10

32

6735731

HOSE

33

6735732

HOSE

34

19KB0608

UNION W/Ref. 2

35

6735734

HOSE
