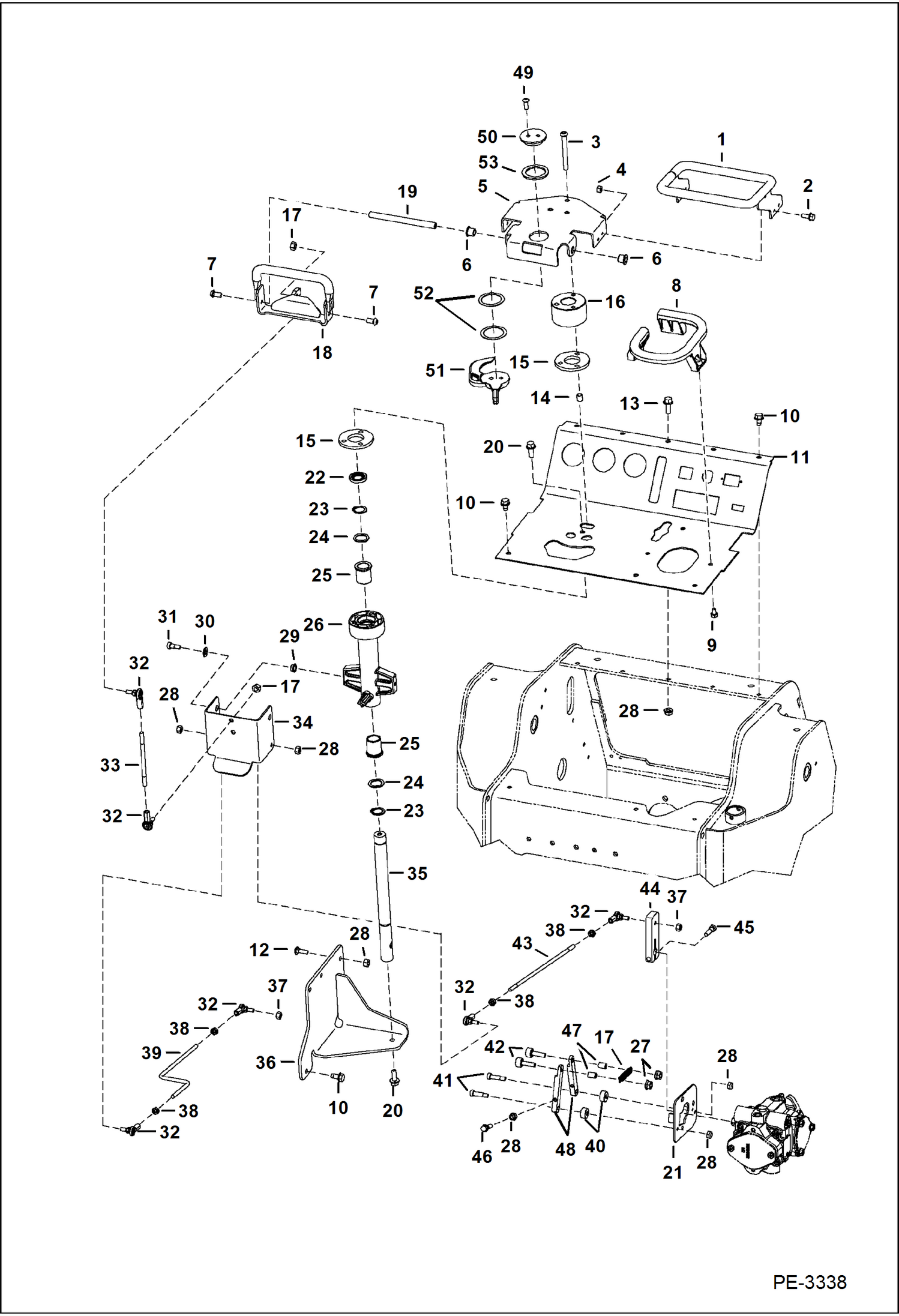

Запчасти Bobcat Mini Tracks Loaders STEERING CONTROLS (S/N 528712700 & Above, 528811150 & Above) HYDROSTATIC SYSTEM

1

6737168

BRACKET loop

2

35C412

BOLT

3

25G656

SCREW

4

59D4

NUT 5

5

7134045

PANEL steering

6

6685605

BEARING

7

25G510

BOLT

8

7132653

BRACKET bar loop

9

1CM812

BOLT

10

84G3712

BOLT 5

11

6734956

PANEL instrument

12

37C516

BOLT

13

35C520

BOLT

14

6593013

SPACER

15

6737529

SPACER

16

6737530

SPACER

17

6736878

SPRING

18

7101243

HANDLE ASMBLY

19

7101254

TUBE PIVOT

20

35C612

BOLT

21

6735943

PLATE ASSY controls

22

6679135

SEAL shaft

23

22J16

SNAP RING

24

6505046

WASHER

25

6732271

BUSHING, PRESS FIT 1.25'' (31,75 mm) OD - bronze

25

6690474

BUSHING 1.125'' (28,58 mm) OD

26

6736880

MOUNT steering - Use W/Ref. 25 (6732271 bushing) 1.5'' (38.1 mm) long

26

6690142

MOUNT steering - Use W/Ref. 25 (6690474 bushing) .97'' (22.86 mm) long

27

98D6

NUT

28

59D5

NUT 5

29

6684925

BUSHING

30

25E17

WASHER 5

31

38C606

BOLT

32

6684451

ROD END

33

6737159

ROD linkage

34

6736881

BRACKET steering

35

6736890

SHAFT pivot

36

6737531

BRACKET

37

85D5

NUT 5

38

8D5

NUT

39

6737362

ROD control

40

6735720

BUSHING

41

38C616

SCREW

42

6737692

BEARING roller

43

6736105

ROD control

44

6735717

ARM pintle

45

18C624

BOLT

46

7108664

BOLT

47

6737693

SPACER

48

6737694

ARM centering

49

27CM820

BOLT

50

6567963

SPACER

51

7134044

CONTROL

52

6630945

WASHER

52

6630945

WASHER

53

6567962

WASHER
