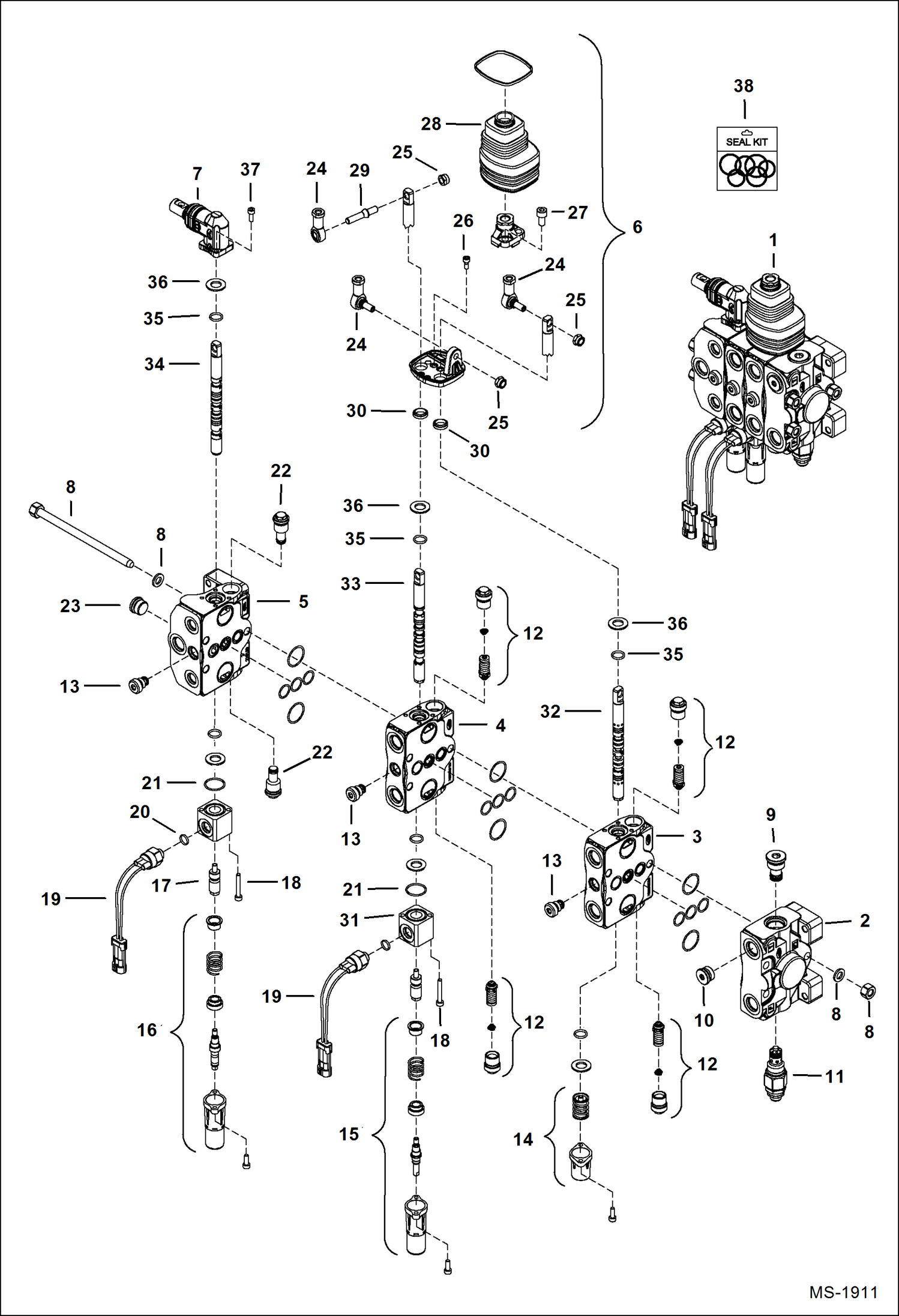

Запчасти Bobcat Mini Tracks Loaders WORK VALVE (S/N 523611001 & Above, 523711001 & Above, 528711001 & Above, 528811001 & Above) HYDRAULIC SYSTEM

1

6735730

VALVE work - Ref. 2-27

2

6685789

SECTION

2

6685793

SEAL KIT

3

6685790

SECTION tilt

3

6685794

SEAL KIT

4

6685791

SECTION lift

4

6685795

SEAL KIT

5

6685792

SECTION aux.

5

6685796

SEAL KIT

6

6685784

KIT detent

7

6685782

LEVER W/screw

8

6685783

KIT W/ 3 bolts, 3 nuts & 6 washers

9

6680057

PLUG

10

6679629

PLUG

11

6682252

VALVE main relief

12

6685776

KIT relief valve

13

6680092

VALVE, LOCK LOAD

14

6685777

KIT spool

15

6685778

KIT spool

16

6685781

KIT spool

17

6685780

CONTROL ASSY

18

6679501

SCREW

19

6679607

SWITCH Was 6685779 - A

20

6679605

O-RING

21

6679604

O-RING

22

6686233

PLUG Was 6680060 - A

23

6679629

PLUG

24

6685786

ROD END

25

6685785

NUT

26

6685787

SCREW

27

6685788

SCREW

28

6688663

BOOT RUBBER

29

6688664

PIN

30

6679912

SEAL dust

31

6679910

BLOCK, MACHINED

32

6697802

SPOOL tilt

33

6697803

SPOOL lift

34

6697804

SPOOL aux.

35

6680094

O-RING

36

6680095

WASHER

37

6680071

SCREW

38

6685807

SEAL KIT complete
