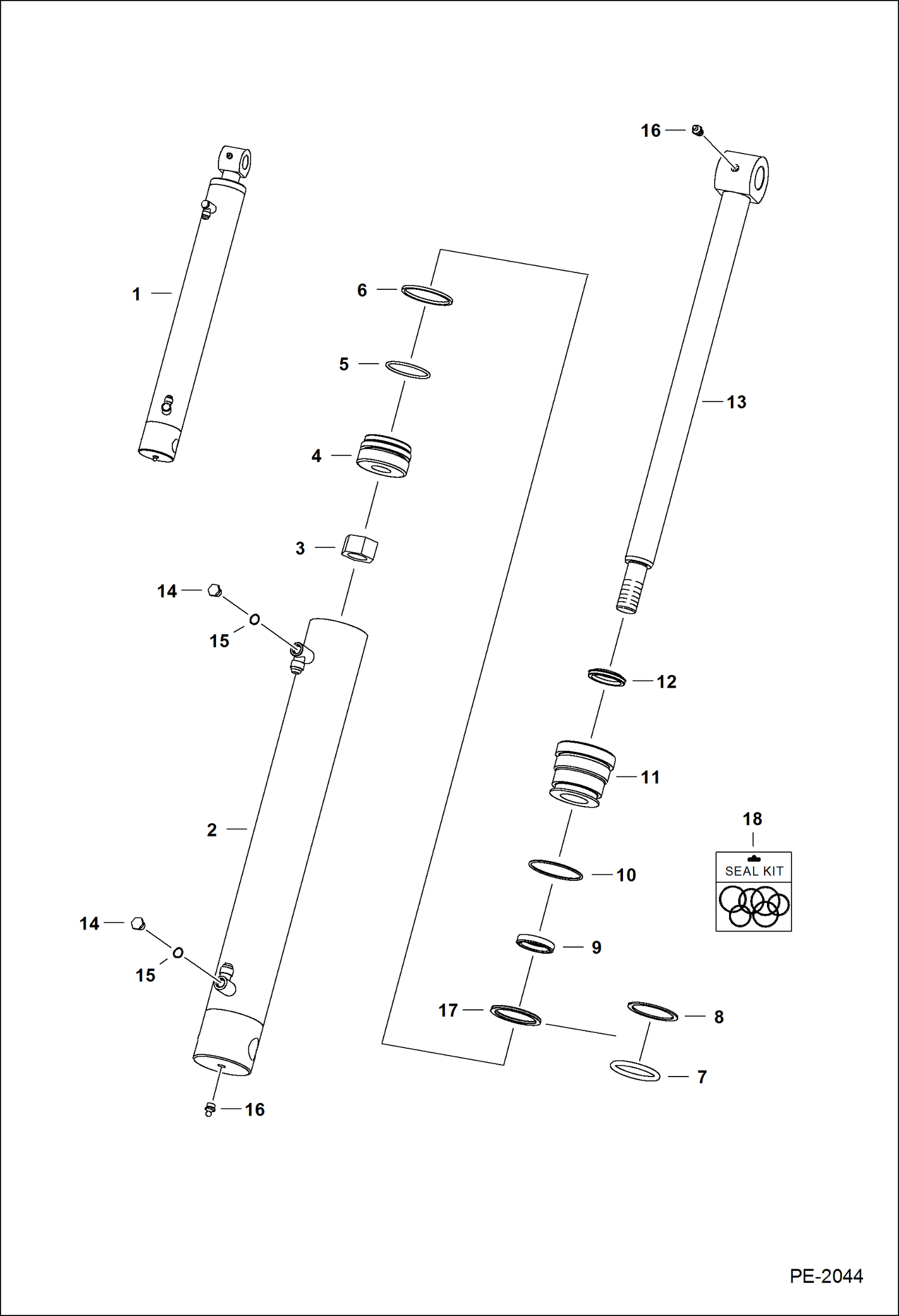

Запчасти Bobcat Mini Tracks Loaders LIFT CYLINDER HYDRAULIC SYSTEM

1

6814795

CYLINDER Ref. 2-15

2

6814799

CASE

3

92D14

NUT

4

6808611

PISTON

5

6519328

SEAL

6

25K30126

O RING 10 Was 54K30126 - B

7

25K60128

O RING 10 Was 54K60128 - A

8

73K328

RING back-up

9

6667324

SEAL rod

10

82K140

O-RING Was 58K000140B - B

11

7106798

HEAD Was 6537162 - A

12

6665208

SEAL wiper

13

6814796

ROD

14

6812170

PLUG W/Ref. 16

15

75K3

O-RING

16

11H15

GREASE FITTING

17

SEAL. QUAD NLA - Order Ref. 7 & 8 - Was 7207334 - A

18

7137786

KIT, SEAL Ref. 3, 5-10, 12 - Was 6808805 - A
