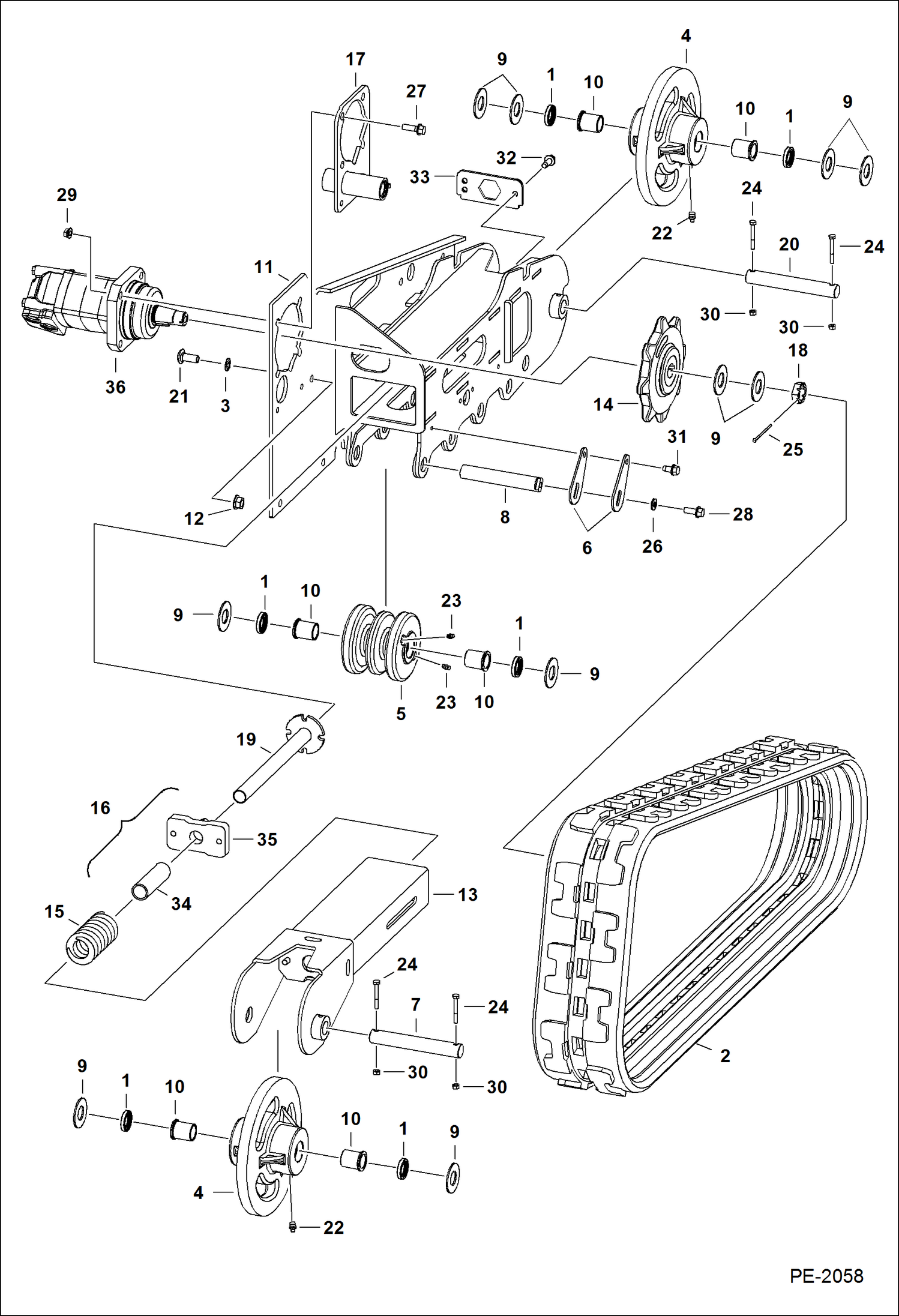

Запчасти Bobcat Mini Tracks Loaders DRIVE TRAIN DRIVE TRAIN

1

6679135

SEAL

2

TRACK, RUBBER See Illustration TRACKS/ NA6176

3

6685062

RETAINER

4

IDLER, TRACK FRONT NLA - Use W/Ref. 22 - Order 7109408 idler and Ref. 23 - Was 7109408 - B

4

7109408

IDLER, TRACK FRONT Use W/Ref. 23

5

7109409

ROLLER, TRACK Was 6730683 - A

6

PIN NLA - Order 7171811 pin - Was 6730699 - A

6

7171811

PIN pin lock

7

6730701

PIN idler

8

6730702

PIN keyed

9

6732013

WASHER thrust - Use W/Ref. 14 (NLA/6734995 Sprocket)

9

6732013

WASHER thrust - Use W/Ref. 14 (7107228 Sprocket)

10

6732271

BUSHING, PRESS FIT

11

6737640

FRAME track - RH - Was 6734991 - A

11

6737641

FRAME track - LH - Was 6734992 - A

12

97D8

NUT

13

7107146

ARM Was 6734993 - A

14

SPROCKET NLA - Order 7107228 Sprocket - Was 7104734 - A

14

7107228

SPROCKET, MOTOR DRIVE TRACK

15

6736844

SPRING

16

PLATE, ADJUSTMENT NLA - tensioner - Order Ref. 34 & 35 - Was 6736846 - A

17

6737642

PLATE pump - RH - Was 6737117 - A

17

6737643

PLATE pump - LH - Was 6737118 - A

18

5200255

NUTCASTLE slotted

19

6737352

ROD tensioner

20

7100963

PIN idler

21

10C820

BOLT

21

37C820

BOLT longer square neck - Was 37C820000B - D

22

10H25

FITTING, GREASE 5

22

10H25

FITTING, GREASE 5

23

10H35

FITTING, GREASE 10

23

10H35

FITTING, GREASE 10

24

17C432

BOLT

25

1F440

PIN Was 1F000544B - B,D

26

25E17

WASHER 5

27

31C620

BOLT

28

45C616

BOLT

29

83D6

NUT 5 Was 53D000006B - B

30

61D4

NUT 5

31

84G3712

BOLT 5

32

84G3716

SCREW 5

33

7102230

PLATE TENSION

34

6736847

SPACER

35

7171912

PLATE, PRESSURE

36

MOTOR, DRIVE See Illustration DRIVE MOTOR/ B26693
