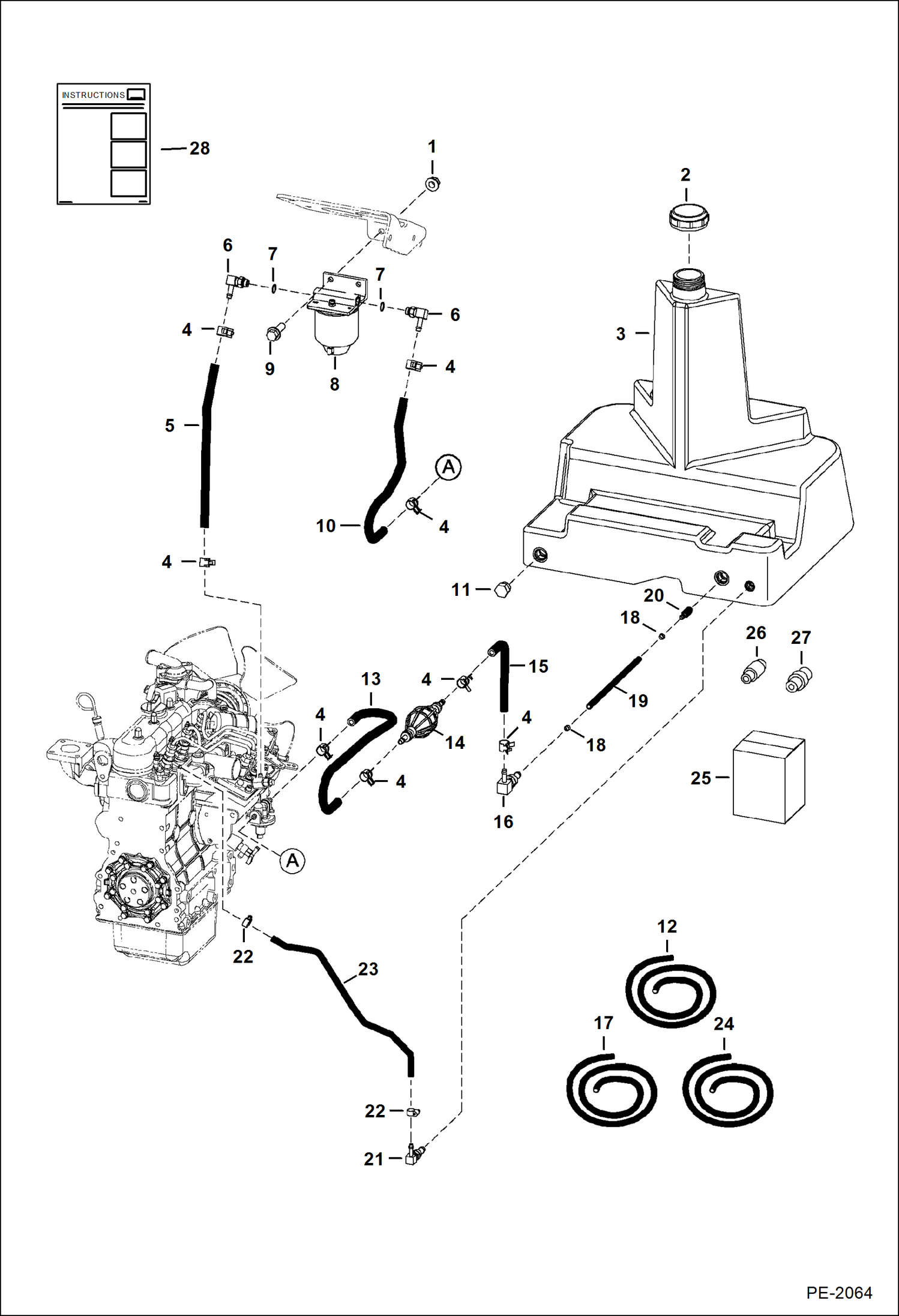

Запчасти Bobcat Mini Tracks Loaders FUEL SYSTEM (S/N 528711001-528711724, 528811001-528811033) MAIN FRAME

1

83D5

NUT 5

2

6684012

FUEL CAP fuel

3

FUEL TANK ASMBLY See Illustration FUEL SYSTEMS/ PE2866 NLA - Order 7104121 tank assembly

4

5HM14

CLAMP

5

HOSE NLA - 21.75'' (552,45 mm) long - Order Ref. 24

6

6715183

ELBOW W/Ref. 7

7

99K5

O-RING

8

6667353

FILTER ASSY

8

6667352

FILTER, FUEL W/SEPARATOR 12

8

72F1

FITTING

9

35C516

BOLT 10

10

HOSE NLA - 16.5'' (419,1 mm) long - Order Ref. 24

11

24K6

FITTING Was 6717401 - B

12

6569752

HOSE BULK/FT bulk - sold per foot

13

HOSE NLA - 27.5'' (698,5 mm) long - Order Ref. 24

14

6667170

PUMP 193 mm (7.6'') long

15

HOSE NLA - 4.5'' (114,3 mm) long - Order Ref. 24

16

7101669

ELBOW BARBED Was 6598908 - A

17

6578169

HOSE bulk - sold per foot - 0.19'' ID - Was 6577821 - B

18

6661213

RING, COMPRESSION

19

HOSE NLA - 9.5'' (241,3 mm) long - Order Ref. 12

20

6650239

SCREEN, FUEL PICKUP

21

6657042

ELBOW

22

42HS04

CLAMP, HOSE Was 6515575 - A

23

HOSE NLA - 29.5'' (749,3 mm) - Order Ref. 17

24

6577822

HOSE bulk - sold per foot

25

7144340

TANK KIT, FUEL fuel tank service

25

6986587

INSTRUCTIONS

26

7143532

PILOT TOOL pilot - .902'' (22,9 mm) O.D. - See Ref. 25 (6986587 instructions) for details

27

7144244

PILOT TOOL pilot - 1.139'' (28,93 mm) O.D. - See Ref. 25 (6986587 instructions) for details

28

6658180

PLUG, BLEED
