Запчасти Bobcat Mini Tracks Loaders BOB-TACH MAIN FRAME

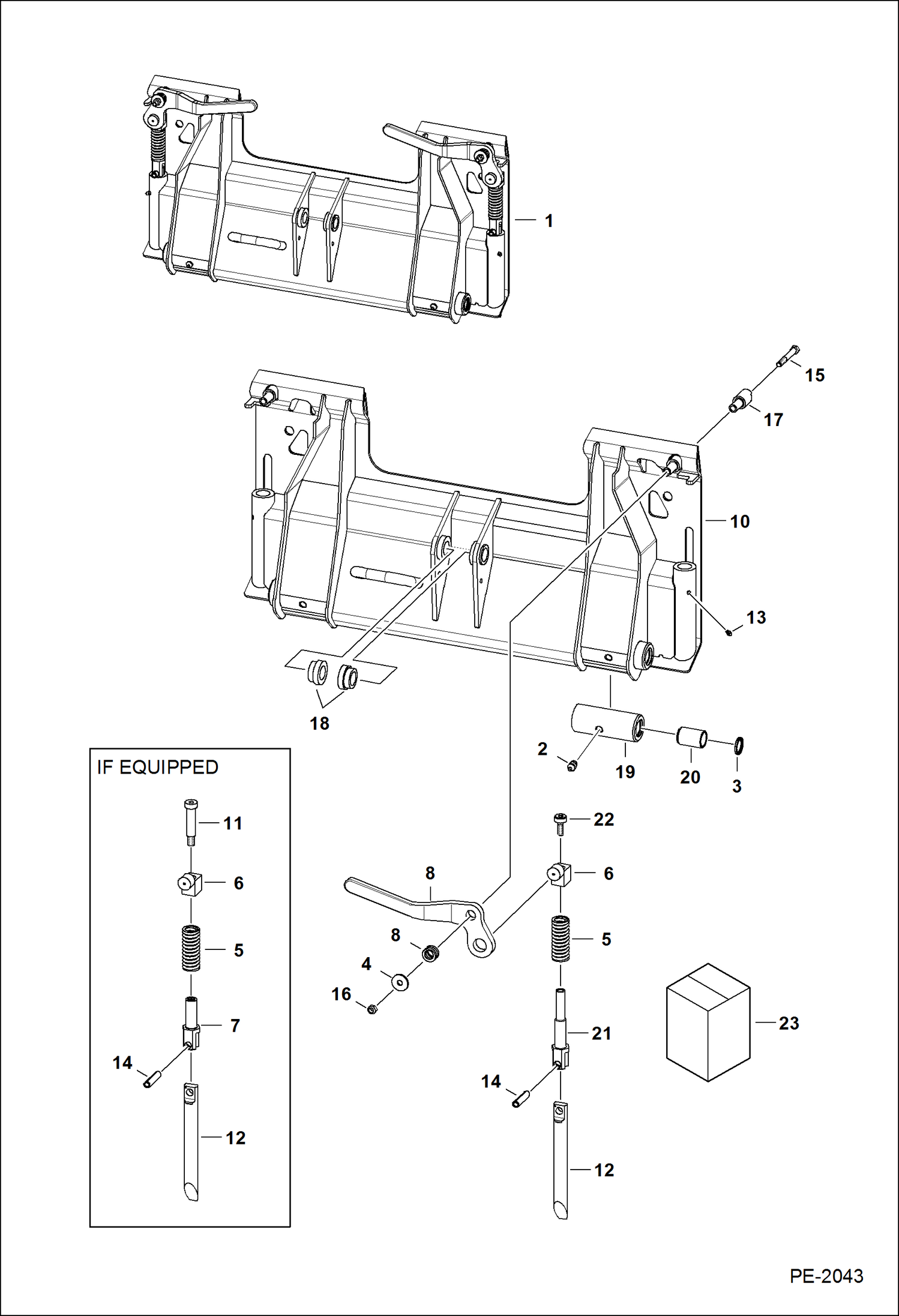

Схема запчастей Bobcat Mini Tracks Loaders - BOB-TACH MAIN FRAME

Артикул

Название

Примечание

Количество

1

6727229

BOB-TACH Was 6726597 - A

2

743332

FITTING, GREASE 5

3

1990599

WIPER

4

619021

WASHER, 5 Was 6557831 - B

5

6578253

SPRING, COMPRESSION

6

6704240

PIVOT ASSY.

7

6704248

PIVOT, WEDGE

8

6704453

SPRING

9

6719501

LEVER RH

9

6719502

LEVER LH

10

FRAME NSS

11

6728473

BOLT, SHOULDER pre-applied thread locker

12

6737363

WEDGE

13

10H35

FITTING, GREASE 10

14

14J5032

PIN, STRAIGHT

15

17C648

BOLT 5

16

85D6

NUT, 5

17

6702958

BUSHING, WELD-ON

18

6563830

BUSHING

19

6726436

BUSHING weld on

20

6809825

BUSHING wear

Выбрано товаров: 21
