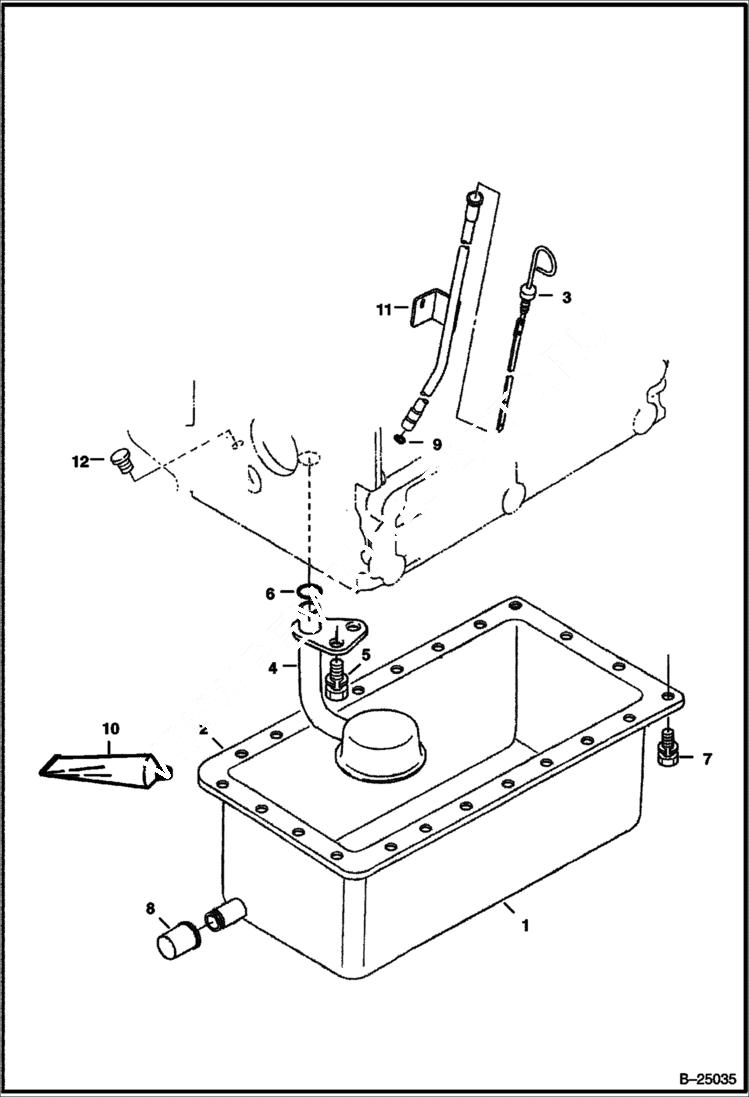

Запчасти Bobcat Mini Tracks Loaders OIL PAN POWER UNIT

1

6688056

OIL PAN

2

GASKET NLA - Use Ref. 10

3

6687710

DIPSTICK

4

6670348

SCREEN oil pickup

5

6667420

BOLT

6

6680284

O-RING

7

1CM614

SCREW Was 4CM614 - A

8

6687741

PLUG

9

6673314

O-RING

10

6632823

GASKET liquid - Use between Ref. 1 & block

11

6687684

GUIDE dipstick - W/Ref. 9

12

6969804

PLUG,OIL GAUGE
