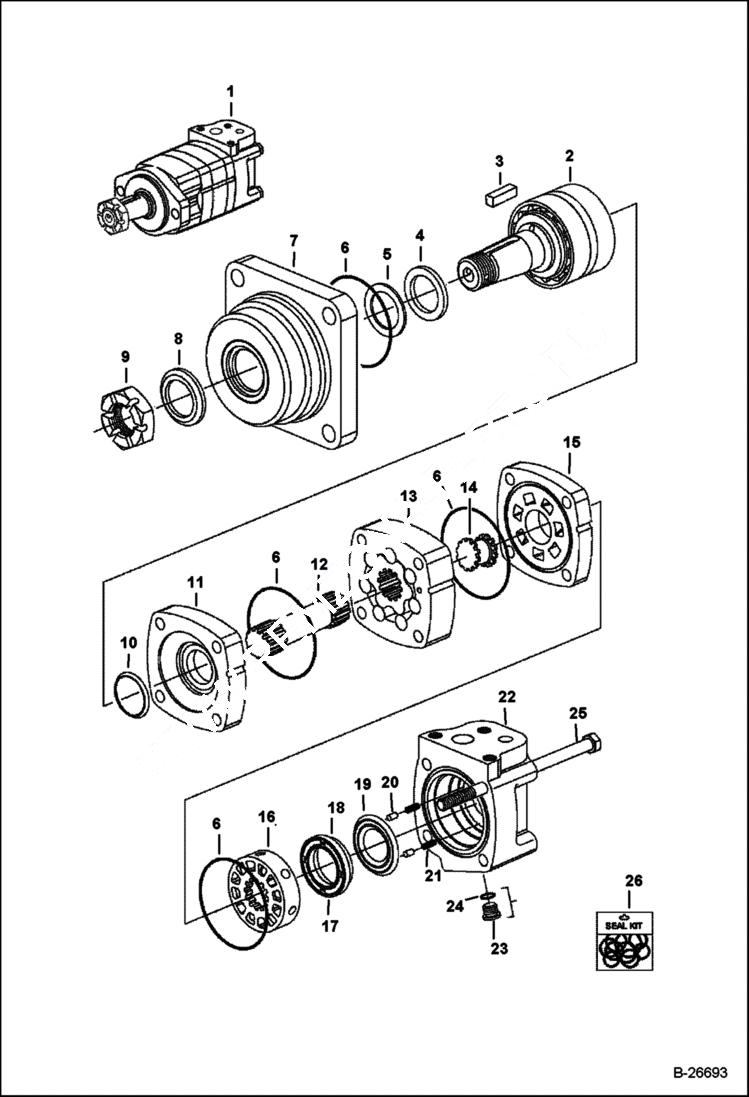

Запчасти Bobcat Mini Tracks Loaders DRIVE MOTOR HYDROSTATIC SYSTEM

1

6686261

MOTOR, DRIVE HYD 105-1386-006

2

6689094

SHAFT ASSY

3

6630089

KEY

4

6689096

SEAL

5

6659511

BACKUP RING

6

6662955

SEAL

7

6689097

HOUSING

8

6685219

SEAL slinger - 1.252'' ID x 2.09 OD x .26'' thick

8

6689099

SEAL slinger - 1.299'' ID x 2.268'' OD

9

5200255

NUTCASTLE

10

1992098

SEAL

11

6632286

WEAR PLATE

12

6669150

DRIVE

13

6669151

GEROLER

14

1992084

DR VALVE

15

6656368

PLATE

16

6632288

VALVE

17

6630027

BALANCE RING

18

1992100

SEAL

19

SEAL NLA - Order Ref. 26 seal kit - Was 6653300 - A

20

1992102

PIN

21

1992088

SPRING

22

6632348

HOUSING

23

1992104

PLUG W/Ref. 24

24

6664822

O-RING

25

6651951

BOLT Was 6689098 - A

26

6689774

SEAL KIT Ref. 4-6, 8, 10, 18, 19 & 24
