Запчасти Bobcat Mini Tracks Loaders WORK VALVE HYDRAULIC SYSTEM

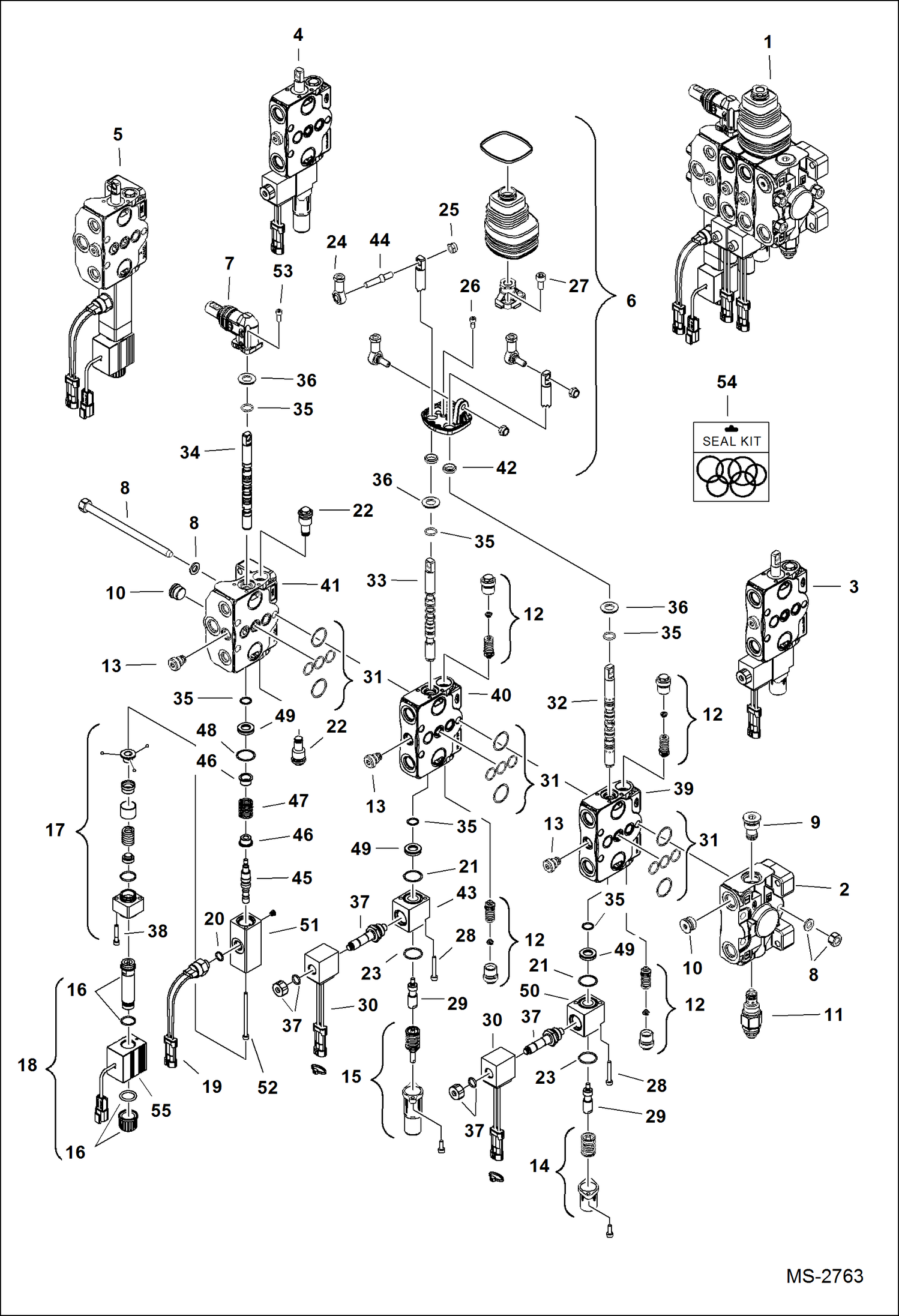

Схема запчастей Bobcat Mini Tracks Loaders - WORK VALVE HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6693857

VALVE, CONTROL W/Ref. 2-53 - Was 6686260 - B,D

2

6685789

SECTION W/Ref. 9

2

6685793

SEAL KIT

3

7001927

KIT, SECTION VALVE W/Ref. 13,14,32,35,36,39 & 50

3

7001924

KIT, SEAL

4

7001928

KIT, SECTION VALVE W/Ref. 13,15,21,23,28,29,33,35,36,40 & 43

4

7001925

KIT, SEAL

5

7001929

KIT, SECTION VALVE W/Ref. 7,10,13,16,17,19,20,34-36,41,45-48,49, 51 & 52

5

7001926

KIT, SEAL

6

6685784

KIT

7

6685782

LEVER W/screw

8

6685783

KIT W/ 3 bolts, 3 nuts & 6 washers

9

6680057

PLUG

10

6679629

PLUG

11

6682252

VALVE main relief

12

6685776

KIT

13

6680092

VALVE, LOCK LOAD

14

7001935

KIT, CAP

15

7001934

KIT, CAP

16

7001932

KIT, PIN

17

7001931

KIT, SPACER W/Ref. 38

18

7001930

COIL, 12 VOLT W/Ref. 16

19

6692577

SWITCH

20

6679605

O-RING

21

6679604

O-RING

22

6686233

PLUG

23

6679606

O-RING Was 6687638 - A

24

6685786

ROD END

25

6685785

NUT

26

6685787

SCREW

27

6685788

SCREW

28

6687640

SCREW

29

6687637

PIN

30

6691203

COIL

31

6680066

KIT

32

6697802

SPOOL

33

7001933

SPOOL, VALVE

34

6697804

SPOOL

35

6680094

O-RING

36

6680095

WASHER

37

6691199

SOLENOID W/nut

38

6679612

SCREW

39

BLOCK NSS- Order Ref. 3

40

BLOCK NSS- Order Ref. 4

41

BLOCK NSS- Order Ref. 5

42

6679912

SEAL

43

SPACER NSS - Order Ref. 4

44

6688664

PIN

45

PIN, POSITIONING NSS - Order Ref. 5

46

BUSHING NSS - Order Ref. 5

47

SPRING NSS - Order Ref. 5

48

SEAL NSS - Order Ref. 5

49

RING NSS

50

SPACER NSS - Order Ref. 3

51

END CAP NSS - Order Ref. 5

52

6682232

SCREW

53

6680071

SCREW

54

7001936

KIT, SEAL complete

55

COIL, 12 VOLT NSS - Order Ref. 18

Выбрано товаров: 59
