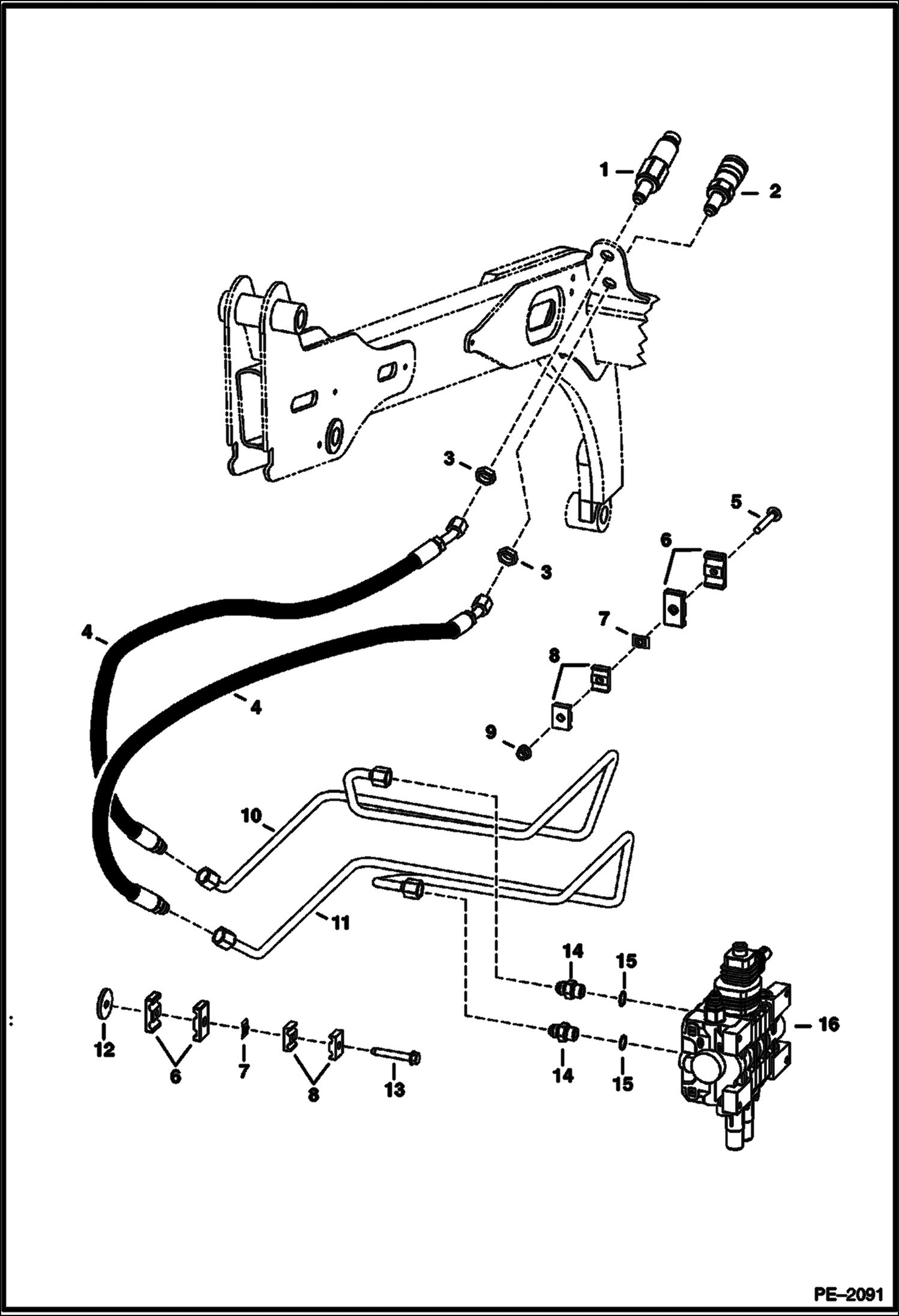

Запчасти Bobcat Mini Tracks Loaders AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

6676560

COUPLER, FF MALE 1/2''

2

6676559

COUPLER, FF FEMALE 1/2''

3

86F6

NUT

4

7139678

HOSE 67.5'' (1714,5 mm) long

5

7107210

BOLT

6

6701892

CLAMP

7

6684033

NUT

8

6726277

CLAMP

9

83D6

NUT 5

10

6736588

TUBELINE

11

6736587

TUBELINE

12

872229

WASHER

13

84G3736

BOLT

14

15KB0808

FITTING, HYD CONNECTOR W/Ref. 15

15

79K8

O RING 10

16

6693857

VALVE, CONTROL See Illustration WORK VALVE/ MS2763 - Was 6686260 - B,D
