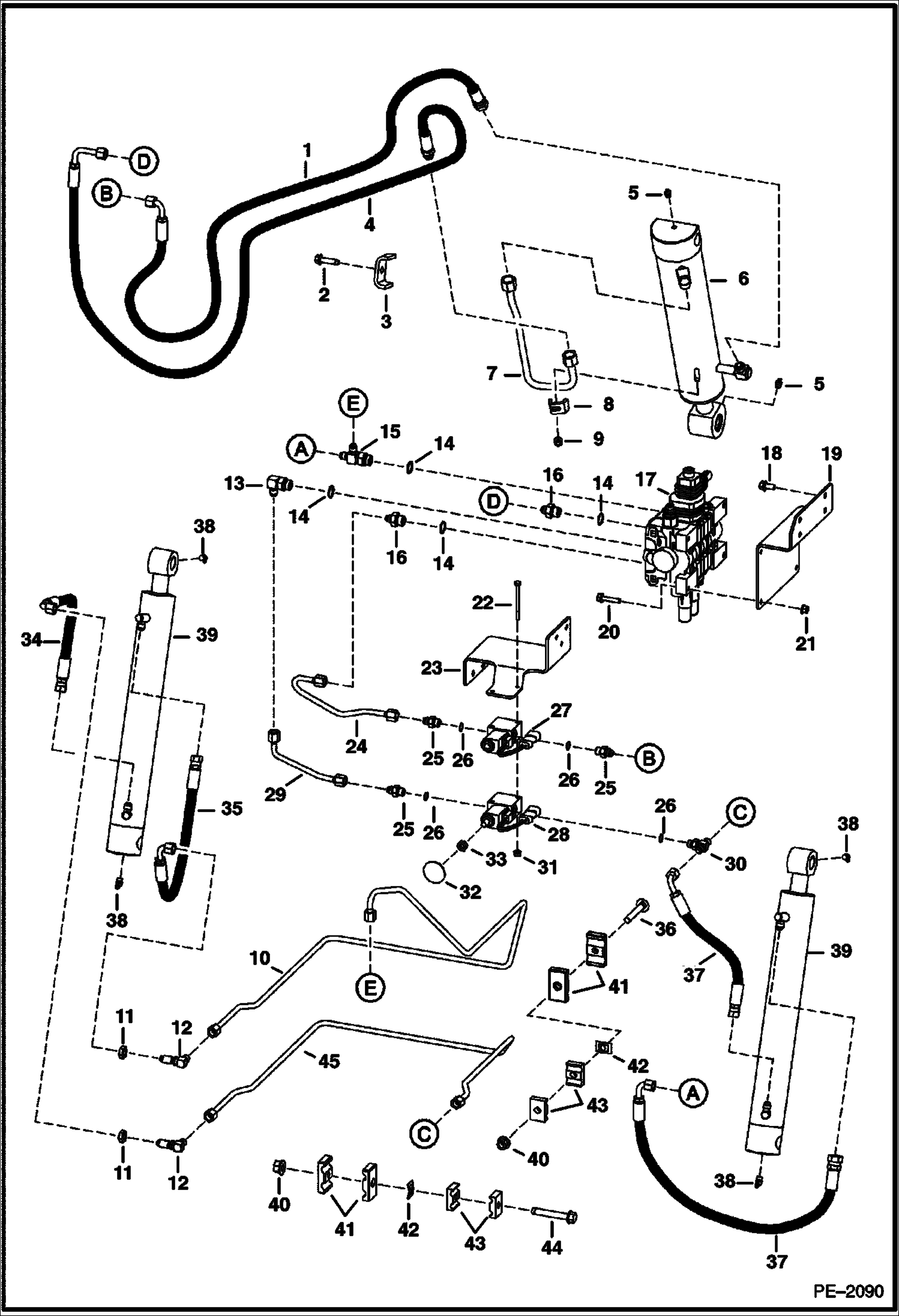

Запчасти Bobcat Mini Tracks Loaders HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6735745

HOSE

2

84G3728

BOLT

3

6800262

CLAMP

4

6735744

HOSE

5

10H25

FITTING, GREASE 5

6

6815798

CYLINDER, TILT See Illustration TILT CYLINDER/ PE1349 tilt

7

6734970

TUBELINE

8

6562266

CLAMP

9

95D6

NUT

10

6736590

TUBELINE

11

86F5

NUT

12

88F5

ELBOW

13

17KB0608

FITTING, HYD ELBOW W/Ref. 14

14

79K8

O RING 10

15

21KB0608

FTG Hyd Straight Tee W/Ref. 14

16

15KB0608

FITTING, HYD CONNECTOR W/Ref. 14

17

6735730

VALVE

18

84G3712

BOLT 5

19

6735735

MOUNT

20

35C524

BOLT

21

83D5

NUT 5

22

17C448

BOLT

23

6735739

BRACKET

24

6735746

TUBELINE

25

15KB0606

FITTING, HYD CONNECTOR W/Ref. 26

26

79K6

O RING 10

27

6679169

VALVE lock out - tilt

27

6648307

CONNECTOR

27

6662790

NUT

27

6679285

COIL

27

6679287

STEM

27

6679286

SEAL KIT

28

6678925

VALVE lock out - lift

28

6648307

CONNECTOR

28

6662790

NUT

28

6679285

COIL

28

6679288

STEM

28

6679286

SEAL KIT

29

6735747

TUBELINE

30

19KB0606

TEE W/Ref. 26

31

83D4

NUT 10

32

6731909

KNOB boom down

33

8D7

NUT

34

6736137

HOSE

35

6736138

HOSE

36

7107210

BOLT

37

6735748

HOSE

38

11H15

GREASE FITTING

39

6814795

CYLINDER See Illustration LIFT CYLINDER/ PE2044 LIFT

40

83D6

NUT 5

41

6701892

CLAMP

42

6684033

NUT

43

6726277

CLAMP

44

84G3736

BOLT

45

6736589

TUBELINE
