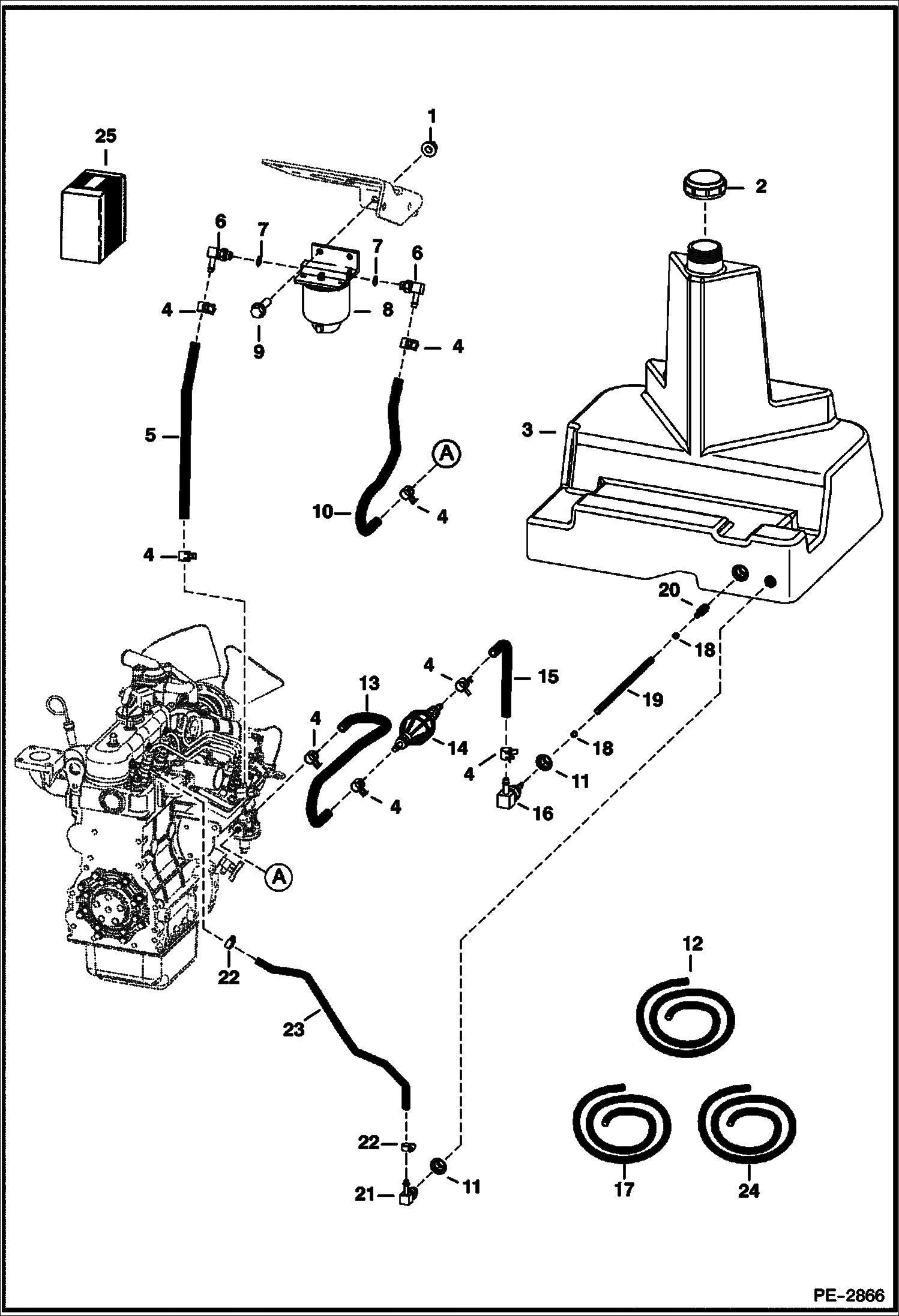

Запчасти Bobcat Mini Tracks Loaders FUEL SYSTEMS MAIN FRAME

1

83D5

NUT 5

2

6684012

FUEL CAP

3

7104121

TANK, FUEL W/Ref. 2, 16-21, 6685125 sensor (sensor not shown) & (2) of Ref. 11 (6553411 bushing)

4

5HM14

CLAMP

5

HOSE NLA - 21.75'' (552,45 mm ) long- Order Ref. 24

6

6715183

ELBOW W/Ref. 7

7

99K5

O-RING

8

6667353

FILTER ASSY

8

6667352

FILTER, FUEL W/SEPARATOR 12

8

72F1

FITTING

8

bleed

8

6658180

PLUG, BLEED

9

35C516

BOLT 10

10

HOSE NLA- 16.5'' (419,1 mm ) long - Order Ref. 24

11

6553411

BUSHING 0.38'' ID

12

6569752

HOSE BULK/FT bulk - sold per foot

13

HOSE NLA - 27.5'' (698,5 mm) long - Order Ref. 24

14

6667170

PUMP 193 mm (7.6'') long

15

HOSE NLA - 4.5'' (114,3 mm) long- Order Ref. 24

16

7126672

ELBOW barbed

17

6578169

HOSE bulk - sold per foot - 0.19'' ID

18

6661213

RING, COMPRESSION

19

HOSE NLA - 9.5'' (241,3 mm) long - Order Ref. 12

20

6650239

SCREEN, FUEL PICKUP

21

6630041

ELBOW

22

42HS04

CLAMP, HOSE

23

HOSE NLA - 29.5'' (749,3 mm) - Order Ref. 17

24

6577822

HOSE bulk - sold per foot
