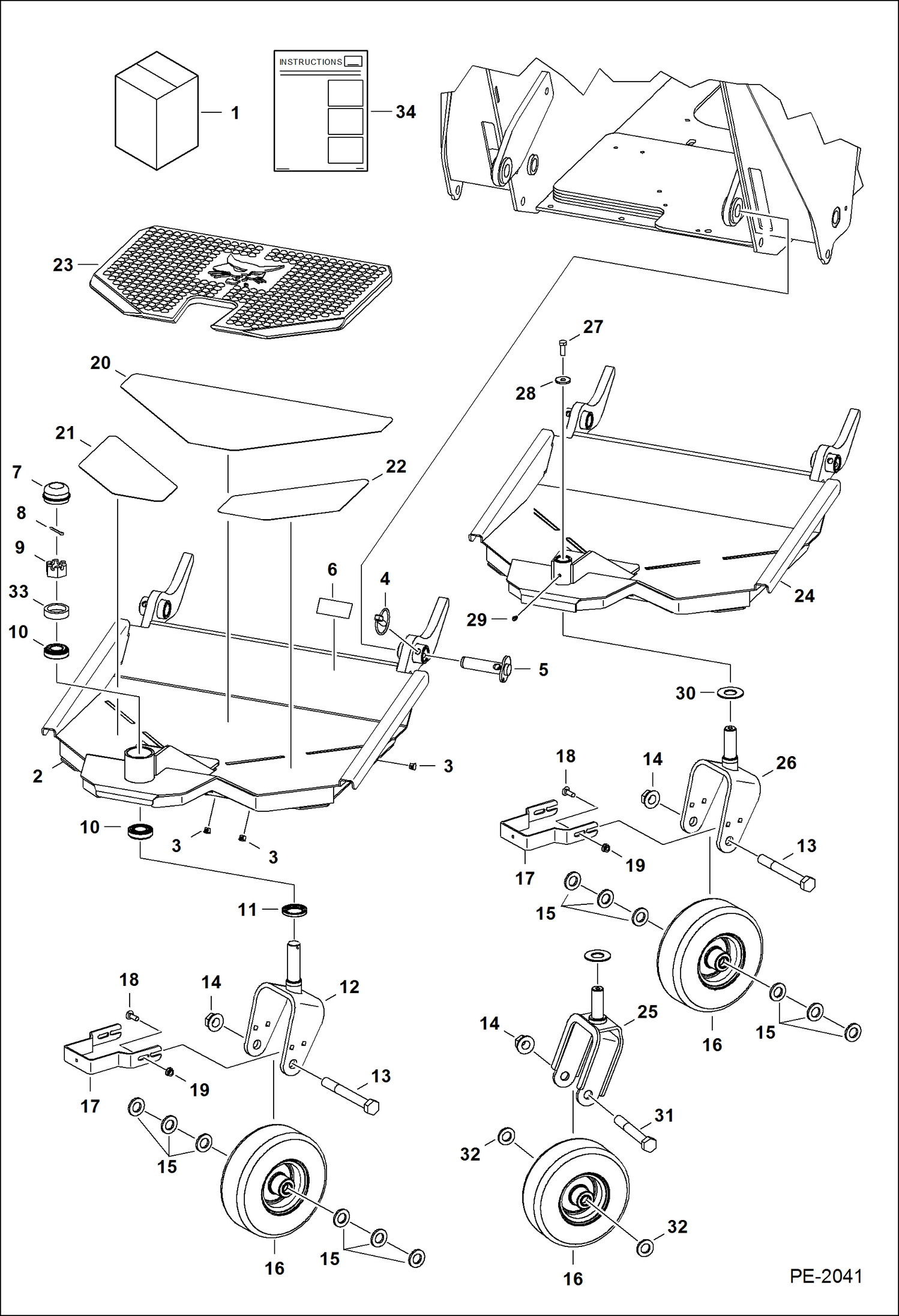

Запчасти Bobcat Mini Tracks Loaders PLATFORM KIT ACCESSORIES & OPTIONS

1

KIT, PLATFORM Ref. 2-22 & 34 - Sales #6737684

2

7171266

FRAME, PLATFORM

3

6649949

PLUG

4

6668928

LOCK PIN

5

6735042

PIN

6

DECAL PATENT PEND NLA - Was 6810666 - C

7

6660967

CAP

8

4D16

NUT, SLOTTED

9

1F520

PIN, COTTER

10

7010895

BEARING, TAPERED ROLLER

11

7010385

SEAL

12

7181086

CASTER, WHEEL caster - W/tapered bearings

13

17C1296

BOLT

14

53D12

NUT Was 89D000012B - B

15

25E27

WASHER

16

6685620

TIRE, MOWER ASSY Was 6681855 - A

16

6683826

BEARING

17

7181089

SCRAPER, MUD

18

37C516

BOLT

19

55D5

NUT

20

6736738

SAFETY TREAD

21

6736739

SAFETY TREAD

22

6736740

SAFETY TREAD

23

FLOOR MAT NLA - platform - Was 7101753 - A

24

FRAME PLATFORM NLA - Order Ref. 1 - Was 6735029 - A

25

MOUNT ASSY NLA - caster W/O tapered bearing - Order Ref. 26 mount assy, Ref. 13 bolt, & Ref. 15 washer (2) - Was 7100679 - A

26

7185818

CASTER, WHEEL caster W/O tapered bearings

27

17C616

BOLT 5

28

619021

WASHER, 5

29

10H35

FITTING, GREASE 10

30

6732013

WASHER

31

17C1288

BOLT

32

25E27

WASHER

33

7010896

CUP, BEARING

34

6902632

INSTRUCTIONS
