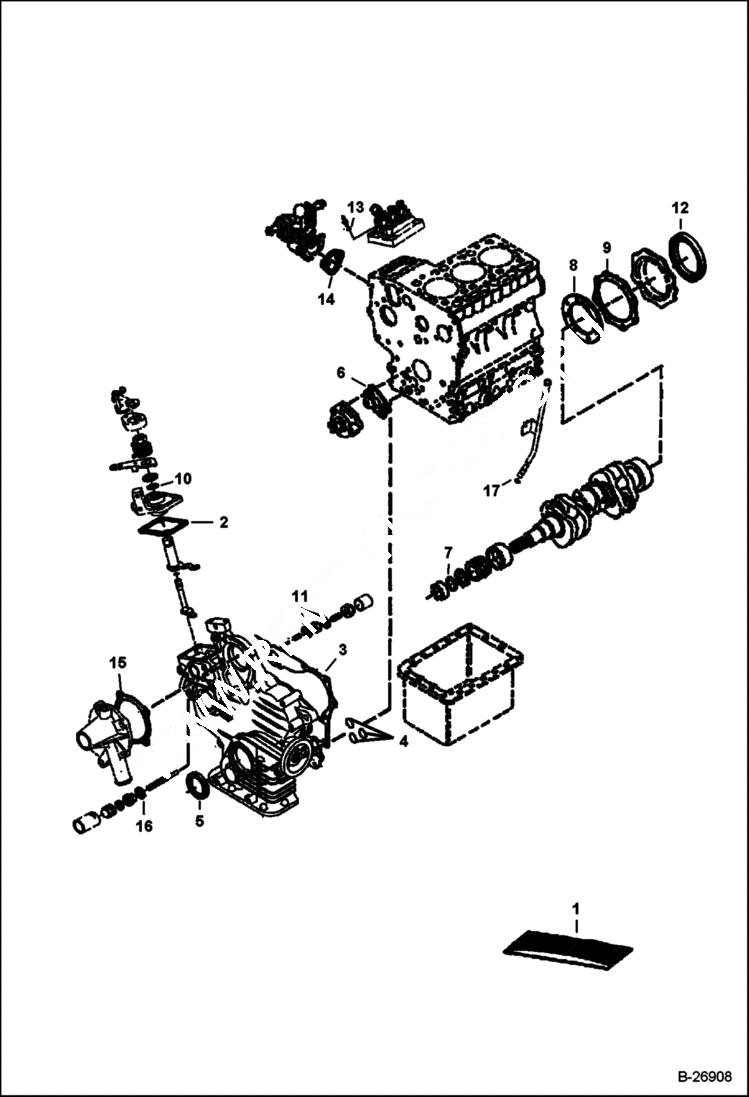

Запчасти Bobcat Mini Tracks Loaders LOWER GASKET KIT (Kubota D722-E2B-BC-6)(Tier II) (S/N5287 11001 & Above, 5288 11001 & Above) POWER UNIT

1

6689015

GASKET KIT lower - W/Ref. 2-17

2

6670457

GASKET See Illustration SPEED CONTROL & STOP LEVER/ B25002 speed control plate

3

6688057

GASKET See Illustration GEARCASE/ B25000 gear case

4

6677915

SEAL See Illustration GEARCASE/ B25000 gearcase

5

6670358

SEAL See Illustration GEARCASE/ B25000 front crankshaft

6

6670341

GASKET See Illustration CRANKCASE/ B25034 oil pump

7

6683014

SEAL See Illustration PISTON & CRANKSHAFT/ C3437A crankshaft

8

6670377

GASKET See Illustration MAIN BEARING CASE/ B14863A rear cover

9

7000494

GASKET See Illustration MAIN BEARING CASE/ B14863A - rear cover - Was 6670379 - A

10

6683021

SEAL See Illustration SPEED CONTROL & STOP LEVER/ B25002 stop lever

11

3974095

MET-GASK See Illustration SPEED CONTROL & STOP LEVER/ B25002 idle assy

12

3918818

SEAL See Illustration MAIN BEARING CASE/ B14863A rear crankshaft

13

3974972

GASKET See Illustration INJECTOR NOZZLES/ B14888A

14

6670782

GASKET See Illustration FUEL & INJECTION PUMP/ B16469A fuel pump

15

7000394

GASKET, PUMP WATER See Illustration WATER PUMP/ B25003 - water pump - Was 6687667 - A

16

6687687

GASKET See Illustration SPEED CONTROL & STOP LEVER/ B25002

17

6673314

O-RING See Illustration OIL PAN/ B25035 - dipstick guide - not in kit
