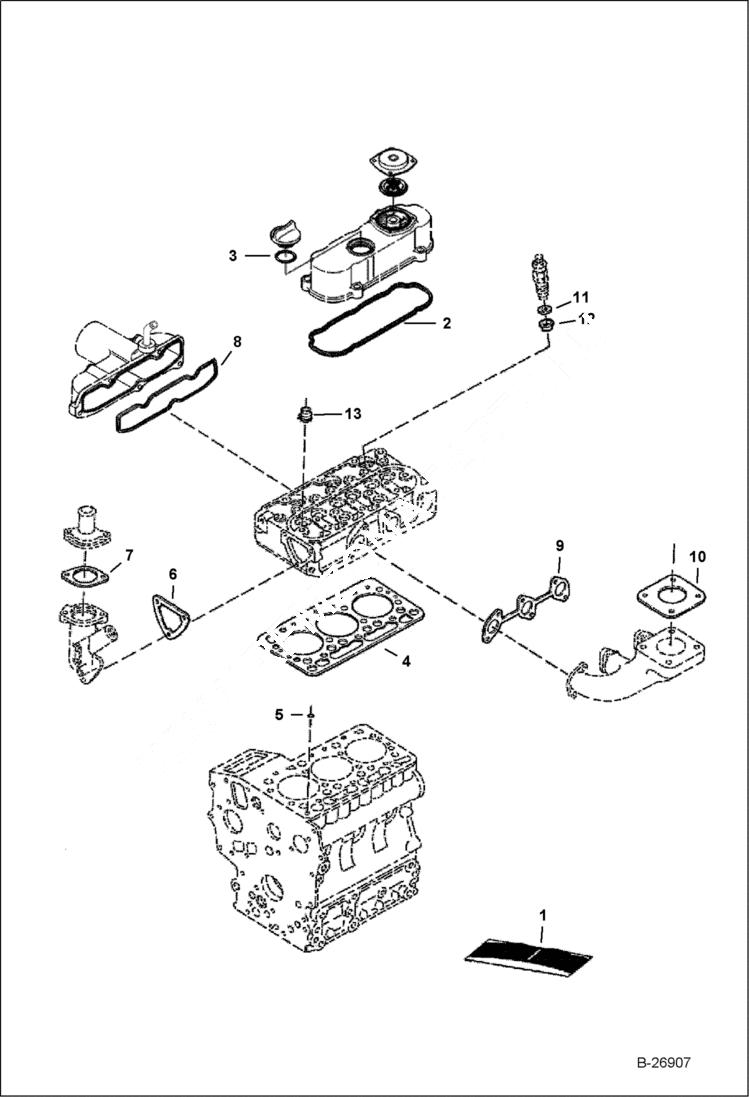

Запчасти Bobcat Mini Tracks Loaders UPPER GASKET KIT (Kubota D722-E2B-BC-6)(Tier II) S/N 5287 11001 & Above, 5288 11001 & Above) POWER UNIT

1

6698167

KIT, GASKET UPPER W/Ref. 2-13 - Also order 6670354 head gasket - Was 7000504

1

6698167

KIT, GASKET UPPER W/Ref. 2-13 - Was 7000504 - B,D

2

6688065

GASKET See Illustration ROCKER ARM COVER/ B24987 valve cover

3

6683009

O-RING See Illustration ROCKER ARM COVER/ B24987 oil fill plug

4

6670354

GASKET See Illustration CYLINDER HEAD/ C3432A graphite type - not in kit - Order seperately

4

7000501

GASKET See Illustration CYLINDER HEAD/ C3432A metal shim type - 3 layer

5

3974038

O RING See Illustration CYLINDER HEAD/ C3432A block to head

6

6670500

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B24986 thermostat housing

7

6684863

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B24986 thermostat

8

6670535

GASKET See Illustration MANIFOLDS/ B25036 intake manifold

9

6670530

GASKET See Illustration MANIFOLDS/ B25036 exhaust manifold gasket - Was 6670530 - B

10

6960259

GASKET See Illustration MANIFOLDS/ B25036 Was 6680583 - A

11

6655218

GASKET See Illustration INJECTOR NOZZLES/ B14888A injector nozzle

12

6655872

HEAT SEAL See Illustration INJECTOR NOZZLES/ B14888A

13

6670517

SEAL See Illustration ROCKER ARM & VALVES/ B24988 - valve stem
