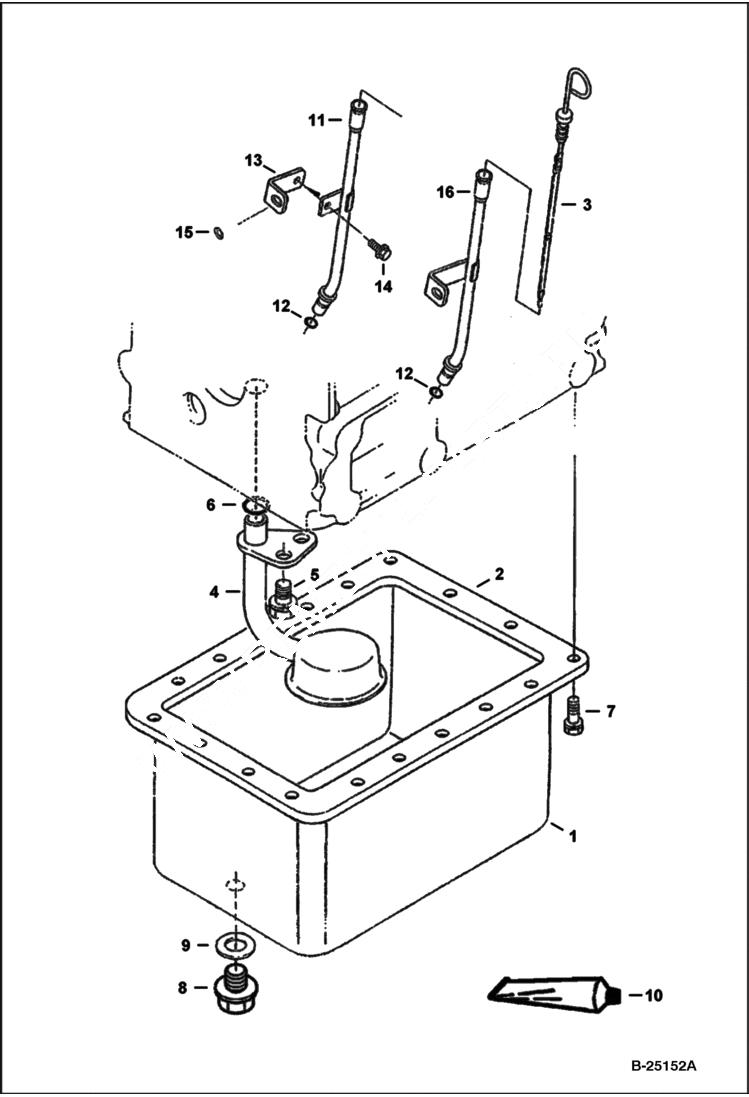

Запчасти Bobcat Mini Tracks Loaders OIL PAN (Kubota D722-E2B-BC-3) (Tier II Replacement) REPLACEMENT ENGINE

1

6670345

PAN W/O Adapter

2

GASKET NLA - Use Ref. 10

3

6678938

DIPSTICK

4

6670348

SCREEN oil pickup

5

6667420

BOLT

6

3966516

O RING See Illustration LOWER GASKET KIT/ B16470A INCLUDED W/LOWER GASKET KIT

7

1CM612

BOLT Was 4CM612 - A

8

6680483

PLUG Was 6688370 - A

9

6670347

GASKET sealing

9

6691295

GASKET sealing

10

6632823

GASKET liquid - Use between Ref. 1 & block

11

GUIDE NLA - dipstick - W/Ref. 12 - Order Ref. 16 - Was 6678939 - A

12

6673314

O-RING

13

SUPPORT NLA - dipstick - Order Ref. 16 - Was 6678940 - A

14

29CM612

BOLT, FLANGED Was 6652762 - A

15

6EM80

WASHER, SPRING

16

6692965

GUIDE dipstick - W/Ref. 12
