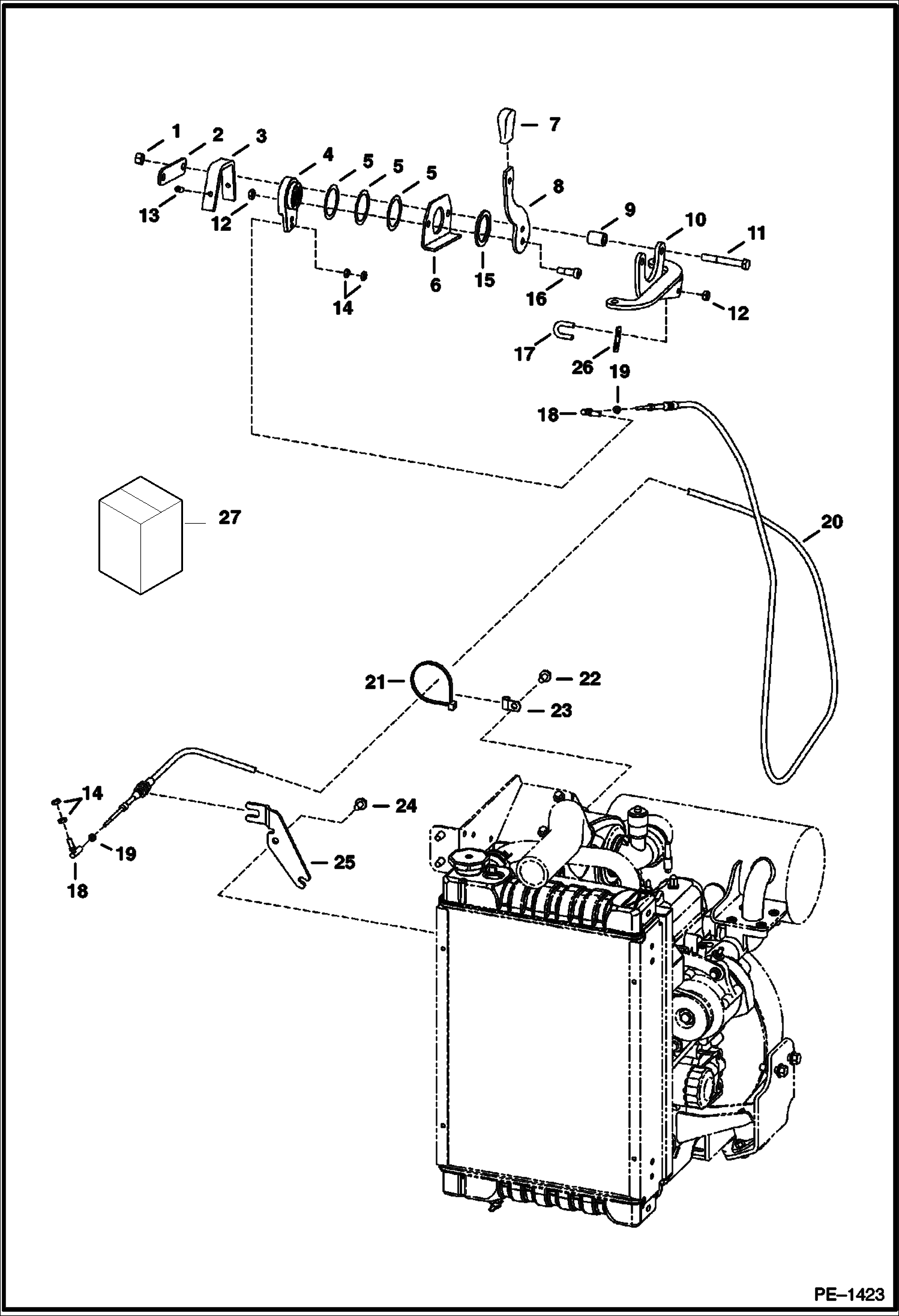

Запчасти Bobcat Mini Tracks Loaders THROTTLE POWER UNIT

1

95D6

NUT Was 91D000006B - A

2

6732080

PLATE throttle

3

6576261

COVER Was 6734520 - A

4

LEVER NLA - 2-hole rod attachment - Order 6734416 lever - Was 6709022 - A

4

6734416

LEVER 3-hole rod attachment

5

6630945

WASHER wave spring

6

6576262

MOUNT throttle

7

6564452

GRIP

8

6705452

LEVER throttle

9

6731328

SPACER

10

6731325

THROTTLE ASSY

11

17C644

BOLT

12

85D5

NUT 5

13

6706572

SET SCREW

14

8D4

NUT

15

6567962

WASHER

16

38C610

BOLT

17

6592766

U-BOLT

18

6644965

BALL JOINT

19

14D10

NUT

20

6675668

CABLE, THROTTLE throttle

21

6624289

STRAP, TIE

22

84G3712

BOLT 5

23

30H19

CLIP

24

29CM816

SCREW

25

6807744

BRACKET

26

6713920

SHIM
