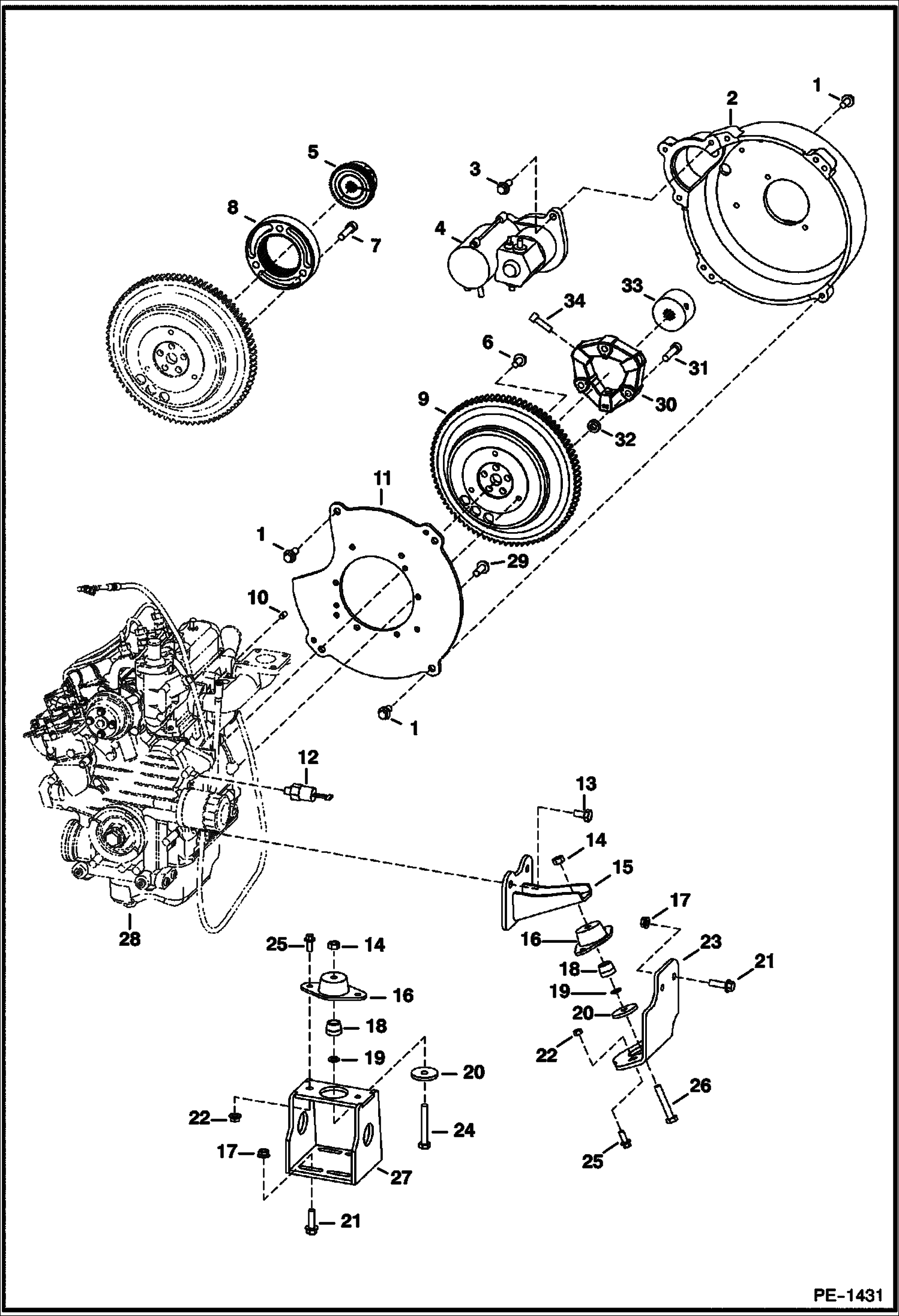

Запчасти Bobcat Mini Tracks Loaders ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

1

29CM1020

BOLT

2

6807287

HOUSING

3

29CM1025

BOLT

4

STARTER See Illustration STARTER/ D2396

5

COUPLING NLA - Order (1) 6535210, (1) 6734042, (3) 6734049, (3) 6678768 & (3) 6734043 - Was 6850038 - A

6

6661636

BOLT flywheel

7

3GM1040

BOLT

8

COUPLER NLA - Order (1) 6535210, (1) 6734042, (3) 6734049, (3) 6678768 & (3) 6734043 - Was 6850028 - A

9

6804875

FLYWHEEL

10

7101341

PIN Was 21JM00816B - B

11

6801352

PLATE

12

6631010

SWITCH, PRESS OIL ENG pressure - Was 6676053 - B

13

5CM1020

SCREW

14

53DM10

NUT

15

6736967

MOUNT ENGINE Was 6806246 - A

16

6653764

MOUNT

17

53D6

NUT

18

6804522

SPACER

19

15EM100

WASHER

20

872229

WASHER

21

35C616

BOLT 5 Was 35C000620B - B

22

53DM8

NUT

23

6731306

BRACKET

24

1CM1060

BOLT

25

29CM820

SCREW

26

1CM1050

SCREW

27

6730671

MOUNT engine

28

ENGINE See Illustration ENGINE & GASKET KITS/ B16486

29

29CM816

SCREW

30

6535210

COUPLER

31

6734049

SCREW

32

6734043

SPACER

33

6734042

HUB

34

6678768

BOLT
