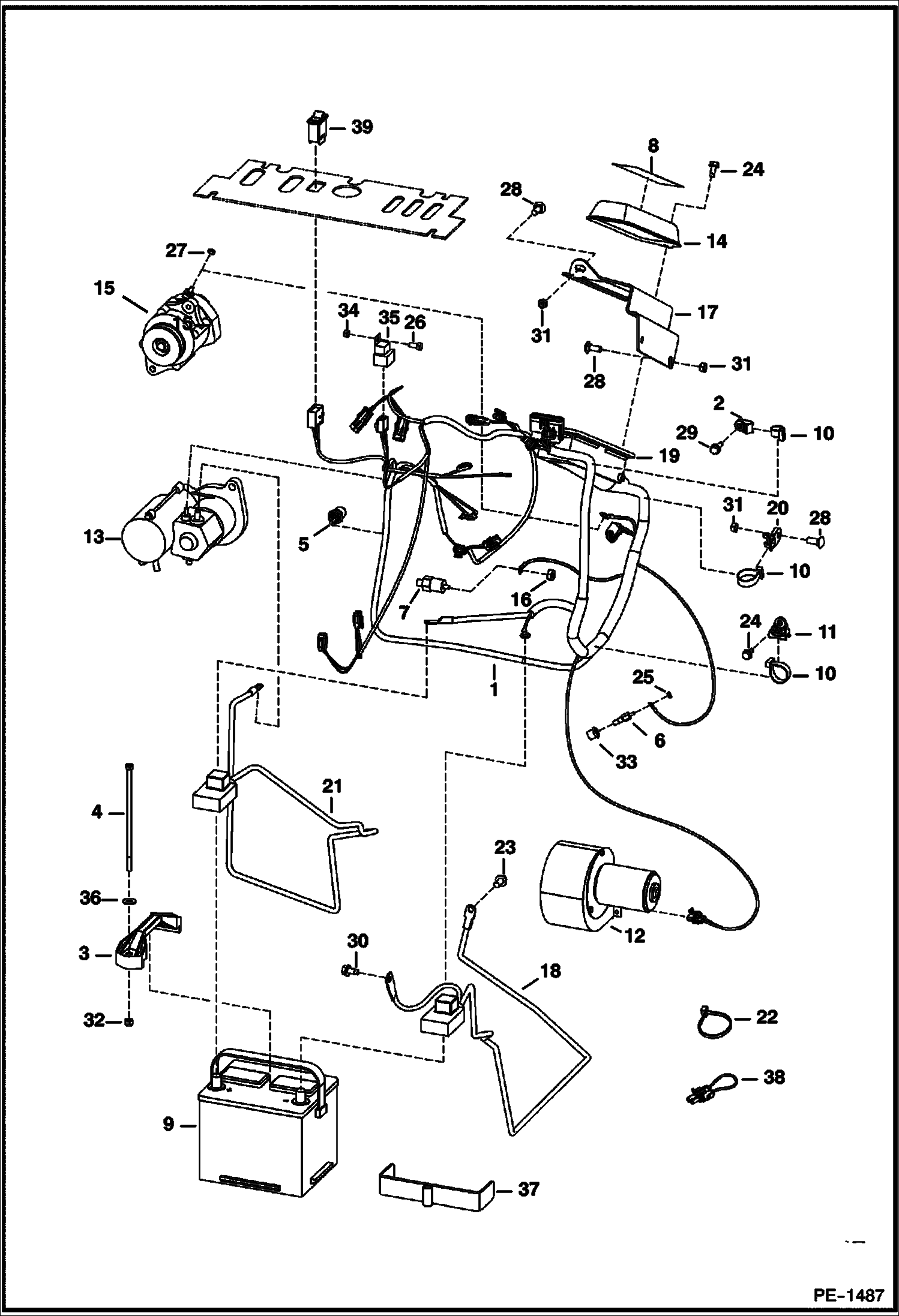

Запчасти Bobcat Mini Tracks Loaders ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

HARNESS NLA - engine - Order 6736877 - Was 6731488 - A

1

6736877

HARNESS ENGINE engine

1

6654805

FUSE 10A - A

1

6654806

FUSE, 15A

1

6702444

FUSE 25A 5

1

6718034

FUSE, 30A

1

6679820

RELAY relay

1

6673200

FUSE BLOCK

1

6632453

BOOT

2

6678667

MOUNT heavy duty

3

6569203

CLAMP battery

4

6731941

BOLT battery clamp

5

6632633

SWITCH hyd temp

6

6658818

SENDER eng temp - threaded connector

7

6631010

SWITCH, PRESS OIL ENG eng oil pres - Was 6676053 - B

8

6731639

DECAL fuse/relay

9

6670251

BATTERY, DRY 530 AMP

9

6630154

CAP gang - Danger

9

6630155

CAP gang - Poison

9

CAP NLA - tilt-tite - Was 6514898 - A

10

6678669

STRAP

11

6678818

MOUNT

12

6678901

BLOWER See Illustration BLOWER ASSEMBLY/ B16430 SEALED

13

STARTER See Illustration STARTER/ D2396

14

6716621

COVER fuse/relay

15

ALTERNATOR See Illustration ALTERNATOR/ C3456

16

12D8

NUT

17

6731623

BRACKET Relay

18

6731497

CABLE Negative

19

6718659

HOUSING fuse - boot

20

6679034

MOUNT harness

21

6731498

CABLE Positive

22

6624289

STRAP, TIE

23

29CM1020

BOLT

24

84G3112

BOLT 5

25

14D10

NUT

26

17C410

BOLT 10

27

1DM6

NUT Was 4DM6 - A

28

37C616

BOLT

29

84G3116

SCREW

30

84G3712

BOLT 5

31

85D6

NUT, 5 Was 87D000006B - A

32

59D5

NUT 5

33

19F2

BUSHING reducer

34

85D4

NUT 5

35

6670872

TIMER fuel shut off

36

25E17

WASHER 5

37

6733610

BRACKET BATTERY battery

38

6734485

HARNESS JUMPER jumper

39

6682998

SWITCH 2-SPEED
