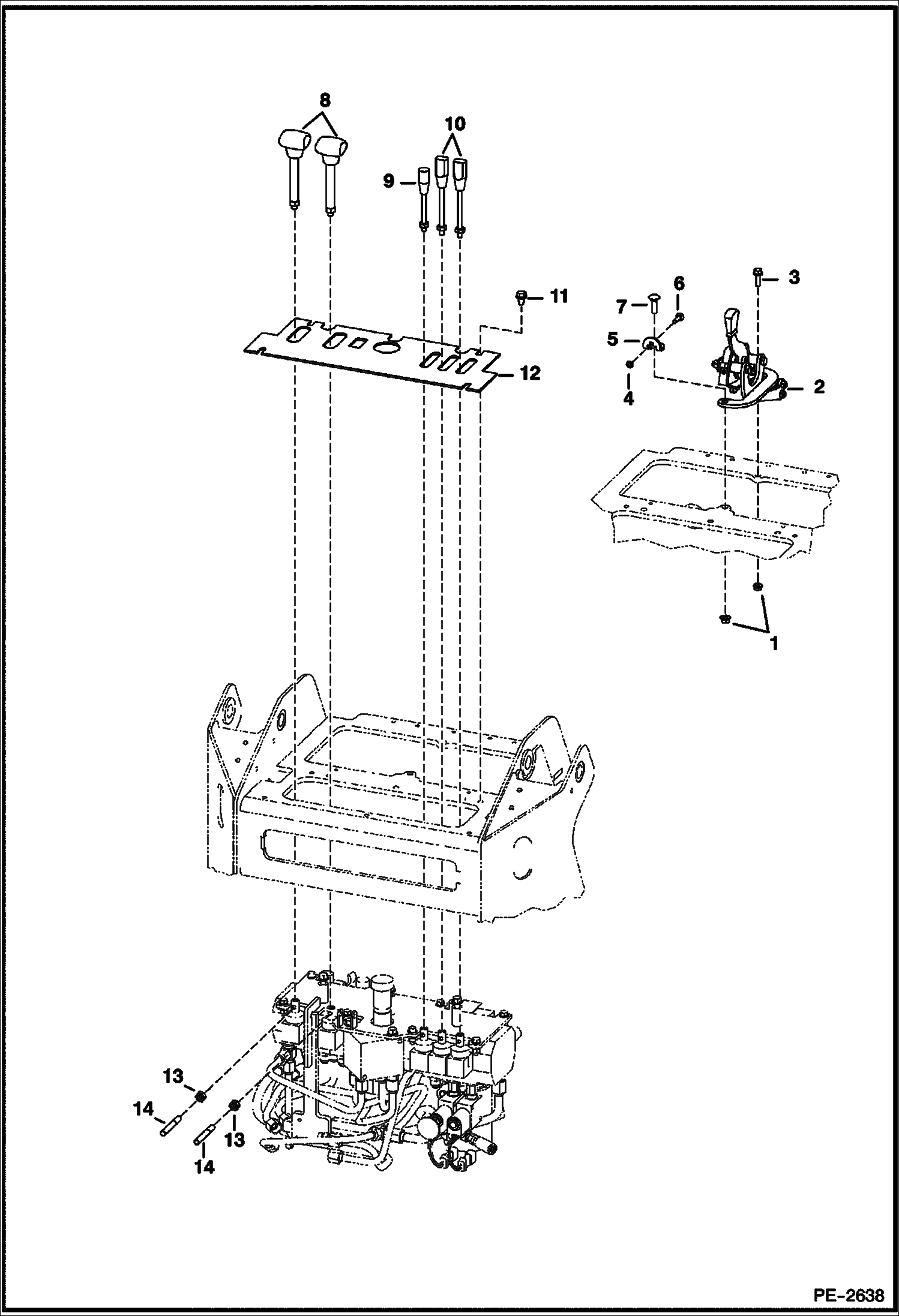

Запчасти Bobcat Mini Tracks Loaders HAND CONTROLS HYDRAULIC SYSTEM

1

97D6

NUT 10

2

THROTTLE ASSY See Illustration THROTTLE/ PE1423

3

35C616

BOLT 5

4

6675212

RETAINER bolt

5

6732067

BRACKET

6

37C416

BOLT

7

37C620

BOLT

8

6731321

HANDLE ASSY

9

6678896

LEVER

10

6678895

LEVER control - auxiliaries

11

84G3710

SCREW

12

6735094

COVER VALVE

13

4DM10

NUT

14

6731320

STOP LEVER
