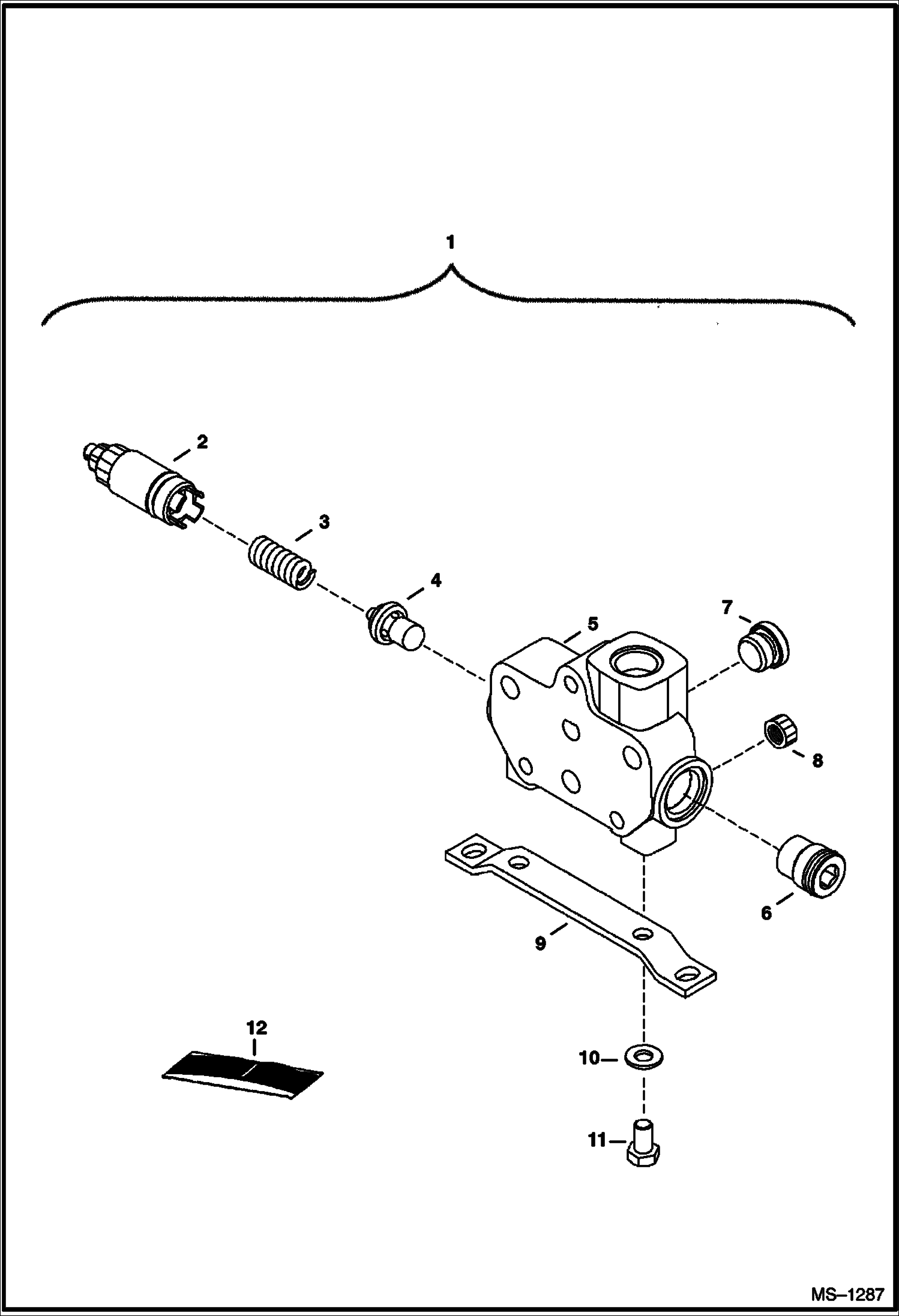

Запчасти Bobcat Mini Tracks Loaders VALVE SECTION (Inlet) HYDRAULIC SYSTEM

1

6679709

VALVE section - inlet - Ref. 2-12

2

CAP NSS

2

O-RING NSS

2

O-RING NSS

3

SPRING NSS

4

RELIEF VALVE NSS

5

BLOCK NSS

6

6679619

PLUG

6

O-RING NLA - Was 6679693

7

6679600

PLUG

7

O-RING NSS

8

NUT NLA - Order 6679620 - Was 6679602 - A

9

BRACKET NSS

10

WASHER NSS

11

SCREW NSS

12

6679717

SEAL KIT section

12

6679720

SEAL KIT complete valve

12

6679714

KIT inlet - Ref. 2-4

12

6679715

KIT mounting - Ref. 9-11
