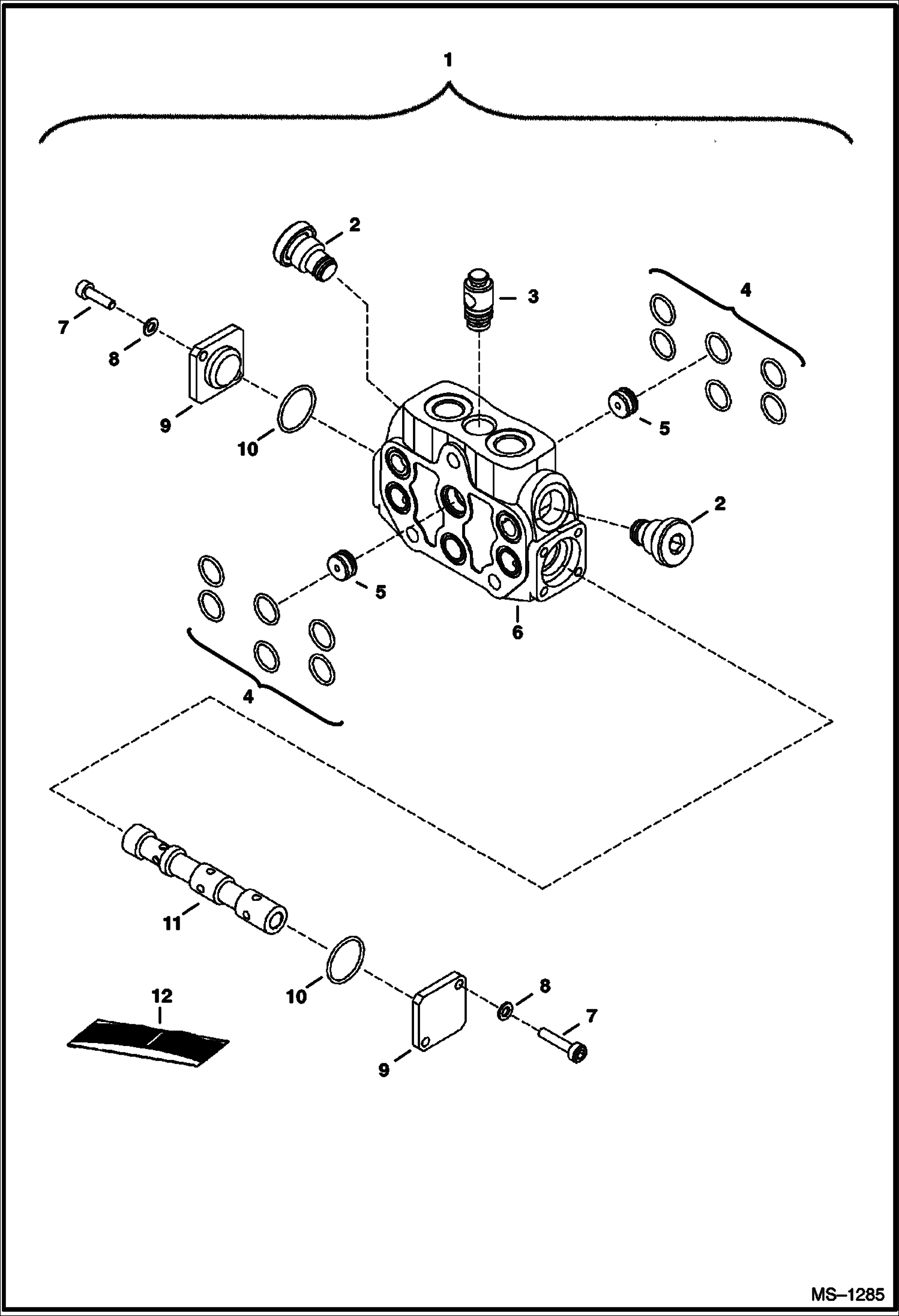

Запчасти Bobcat Mini Tracks Loaders VALVE SECTION (Work) HYDRAULIC SYSTEM

1

6679710

VALVE section - work - Ref. 2-12

2

6679618

PLUG

2

O-RING NSS

2

O-RING NSS

2

O-RING NSS

3

6679614

CHECK VALVE

3

O-RING NSS

3

O-RING NSS

4

O-RING NSS

5

6679613

PLUG

5

O-RING NSS

6

BODY NSS

7

6679611

SCREW

8

6679609

WASHER

9

6679595

END CAP

10

SEAL NSS

11

SPOOL NSS

12

6679718

SEAL KIT section

12

6679720

SEAL KIT complete valve
