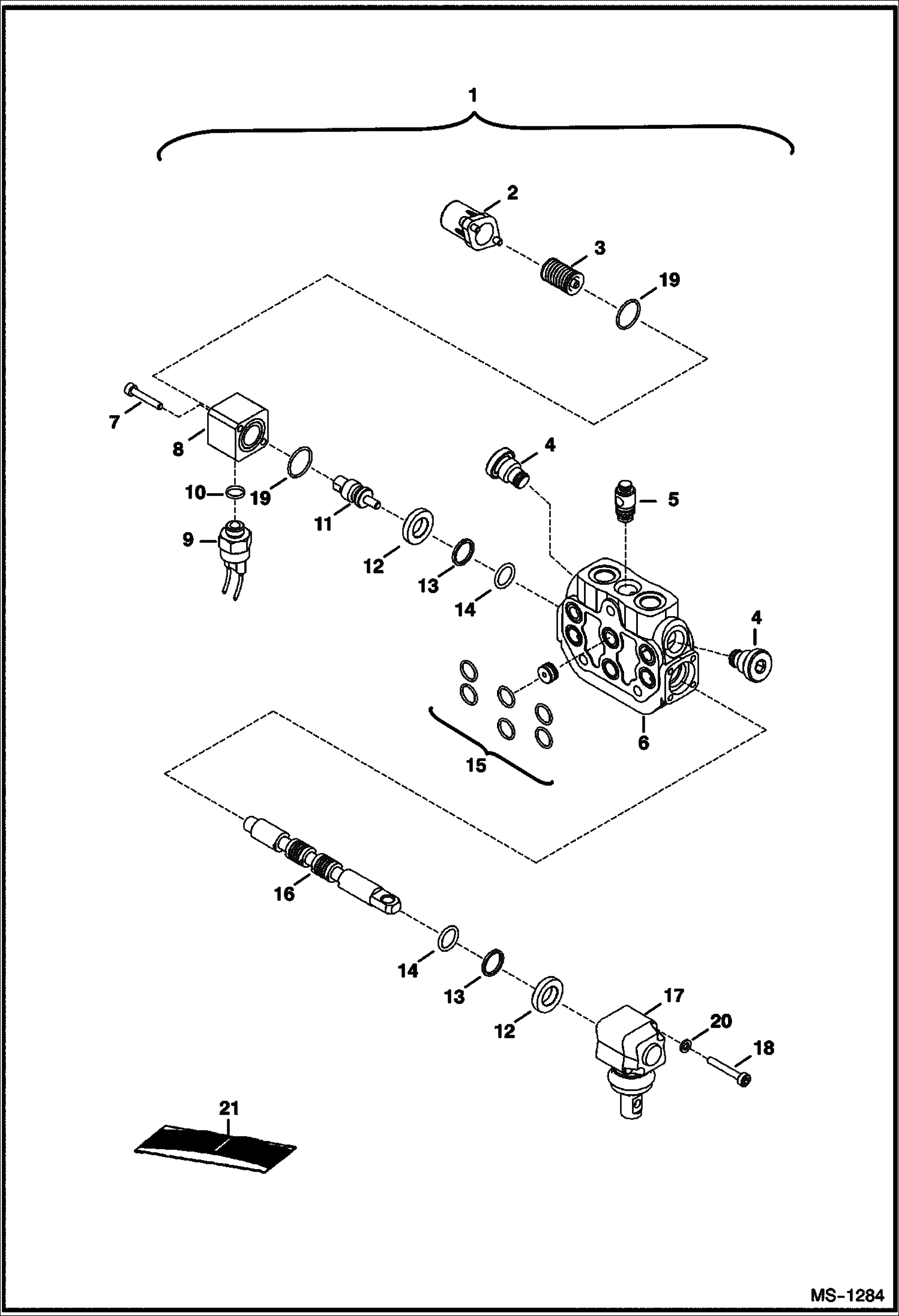

Запчасти Bobcat Mini Tracks Loaders VALVE SECTION (R.H. Travel) HYDRAULIC SYSTEM

1

6679711

VALVE Section - Travel - Ref. 2-20

2

END CAP NSS

3

SPRING ASSY NSS

4

6679618

PLUG

4

O-RING NSS

4

O-RING NSS

4

O-RING NSS

5

6679614

CHECK VALVE

5

O-RING NSS

5

O-RING NSS

6

BODY NSS

7

6679612

SCREW

8

BLOCK NSS

9

6679607

SWITCH W/Ref. 10

10

6679605

O-RING

11

SPOOL LOCK NSS

12

6679593

WASHER

13

6679601

WASHER back-up

14

6679499

O-RING

15

O-RING NSS

16

SPOOL NSS

17

6680316

LEVER KIT W/Ref. 18 - Was 6679716 - A

17

6681587

SCREW ADJ UPPER adj upper

17

6681588

SCREW ADJ LOWER adj lower

17

6681589

NUT

17

6679495

RUBBER BOOT

18

6680317

SCREW Was 6679501 - B

19

6679606

O-RING

20

6680318

WASHER

21

6679719

SEAL KIT section

21

6679720

SEAL KIT complete valve

21

6679713

KIT control - Ref. 2, 3, 7-11 & 19
