VALVE SECTION (Outlet)

Запчасти Bobcat Mini Tracks Loaders VALVE SECTION (Outlet) HYDRAULIC SYSTEM

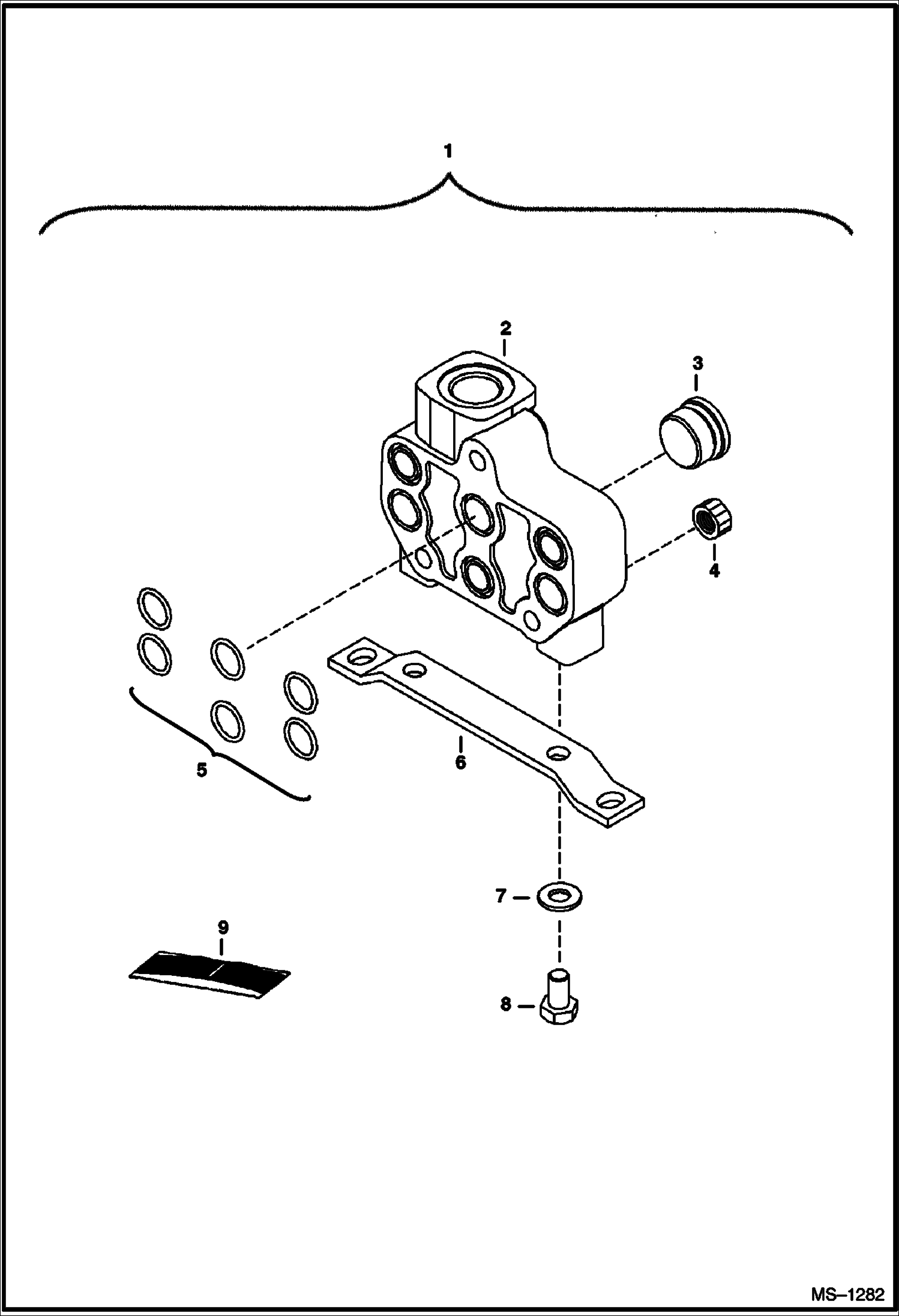

Схема запчастей Bobcat Mini Tracks Loaders - VALVE SECTION (Outlet) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6679725

VALVE section - outlet - Ref. 2-9

2

BODY NSS

3

6679629

PLUG

3

6679701

O-RING

4

NUT NLA - Order 6679620 - Was 6679602 - A

5

O-RING NSS

6

BRACKET NSS

7

WASHER NSS

8

SCREW NSS

9

6679731

SEAL KIT section

9

6679735

SEAL KIT complete valve

9

6679715

KIT mounting - Ref. 6-8
