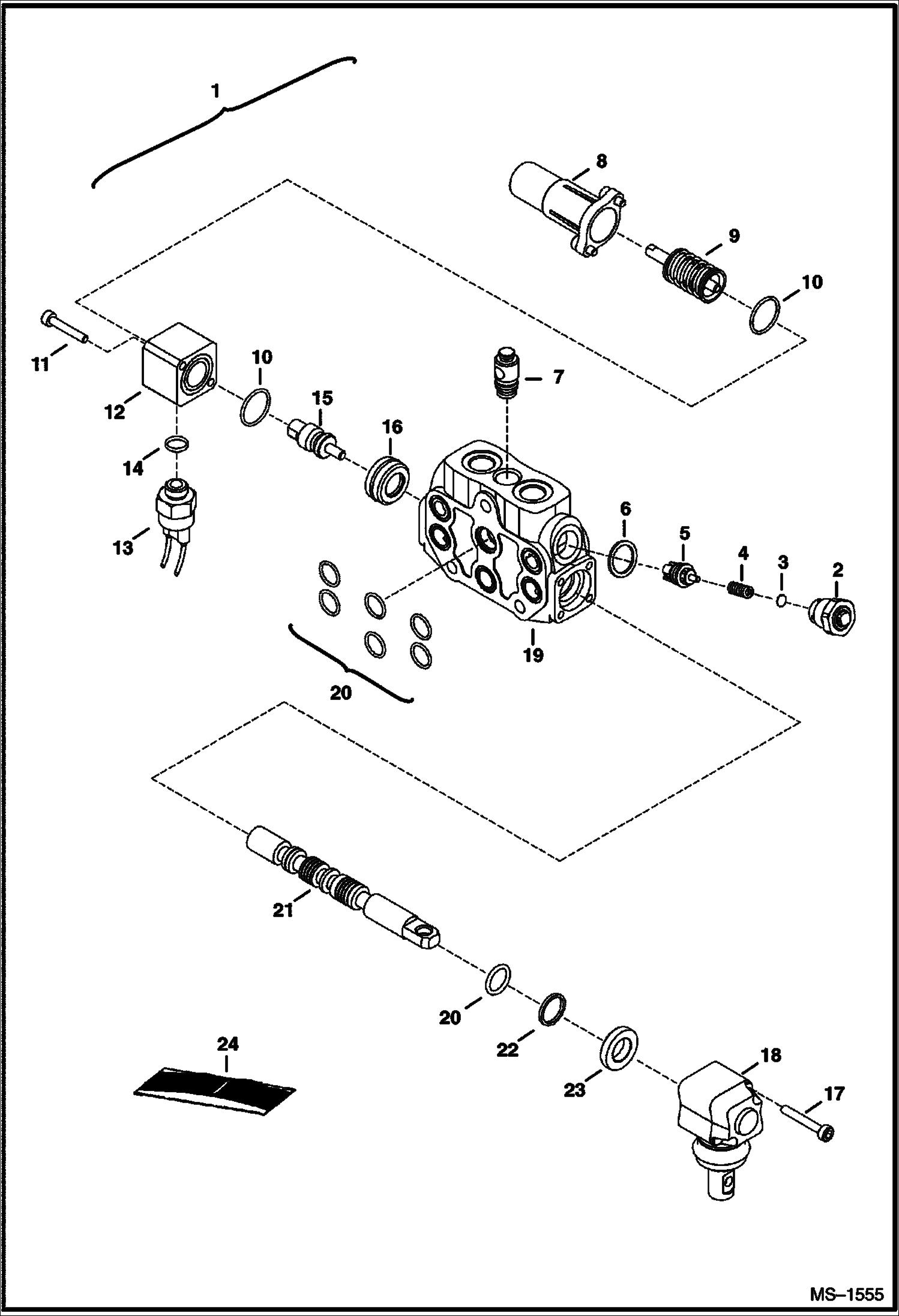

Запчасти Bobcat Mini Tracks Loaders VALVE SECTION (Lift) (S/N & Abv.) HYDRAULIC SYSTEM

1

6682031

VALVE SECTION Section - Lift - Ref. 2-23

2

PLUG NSS

3

SPACER NSS

4

SPRING NSS

5

RELIEF VALVE NSS

6

WASHER NSS

7

6679614

CHECK VALVE

7

O-RING NSS

7

O-RING NSS

8

END CAP NSS

9

SPRING ASSY. NSS

10

6679606

O-RING

11

6679612

SCREW

12

BLOCK NSS

13

6679607

SWITCH

14

6679605

O-RING

15

SPOOL LOCK NSS

16

6679632

SEAL

17

6679501

SCREW

18

6679724

LEVER ASSY W/Ref. 17

18

6679495

RUBBER BOOT

19

BODY NSS

20

O-RING NSS

21

SPOOL NSS

22

6679601

WASHER Back-up

23

6679593

WASHER

24

6682032

SEAL KIT Section

24

6682033

SEAL KIT COMPLETE Complete Valve

24

6679730

KIT Relief - Ref. 2-6

24

6679722

KIT Positioner - Ref. 8 & 9

24

6682079

KIT END CAP End Cap - Ref. 8-15
