Запчасти Bobcat Mini Tracks Loaders SINGLE VALVE (S/N 5206 12037 & Abv, 5224 11118 & Abv) HYDRAULIC SYSTEM

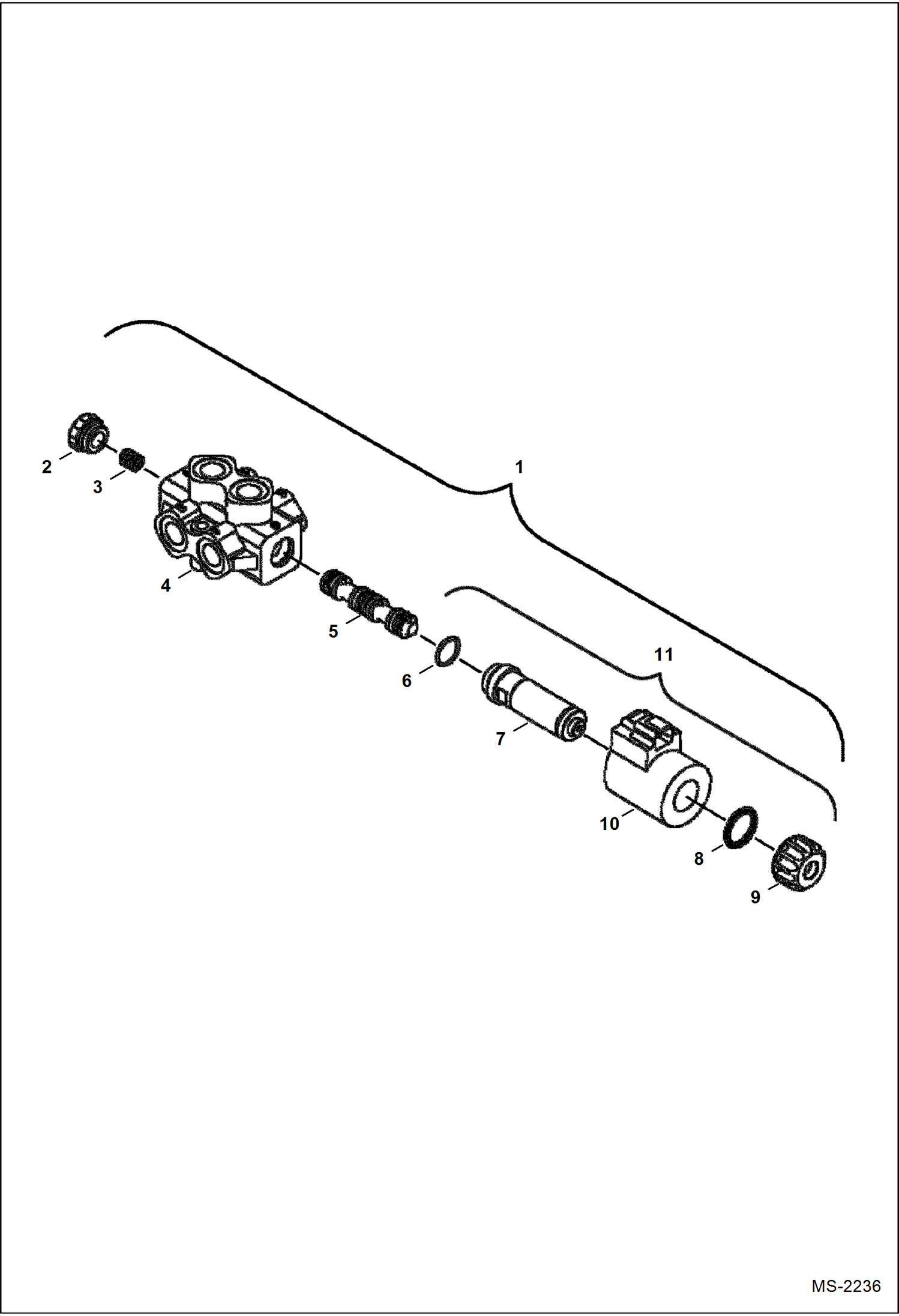

Схема запчастей Bobcat Mini Tracks Loaders - SINGLE VALVE (S/N 5206 12037 & Abv, 5224 11118 & Abv) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6682153

VALVE DIVERTER 6WAY Ref. 2-11

2

6683821

CAP ASSEMBLY W/Ref. 3

3

SPRING NSS- Order Ref. 2

4

BODY NSS - Order Ref. 1

5

SPOOL NSS - Order Ref. 1

6

O-RING NSS - Order Ref. 11

7

SPOOL NSS - Order Ref. 11

8

O-RING NSS - Order Ref. 11

9

NUT NSS - Order Ref. 11 - A

10

6683823

COIL

11

6683822

KIT Ref. 6-9

Выбрано товаров: 11
