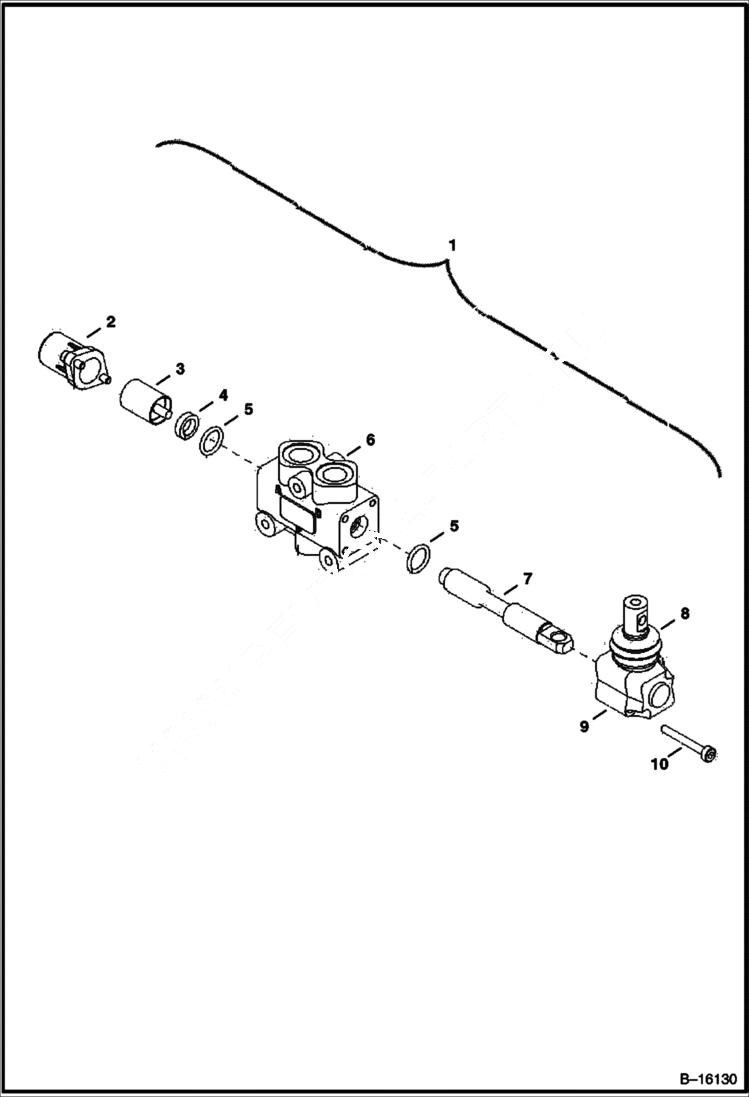

Запчасти Bobcat Mini Tracks Loaders SINGLE VALVE (S/N 5206 12036 & Bel, 5224 11117 & Bel) HYDRAULIC SYSTEM

1

6678822

VALVE Ref. 2-10

2

END CAP NLA - Order 6679979 - Was 6679496 - A

3

SPOOL CONTROL NLA - Order 6679979 - Was 6679497 - A

4

RING NLA - Order 6679979 - Was 6679498 - A

5

6679499

O-RING

6

BLOCK NSS

7

SPOOL NSS

8

6679495

RUBBER BOOT

9

6679724

LEVER ASSY W/Ref. 8 & 10 - Was 6679500 - A

10

6679501

SCREW
