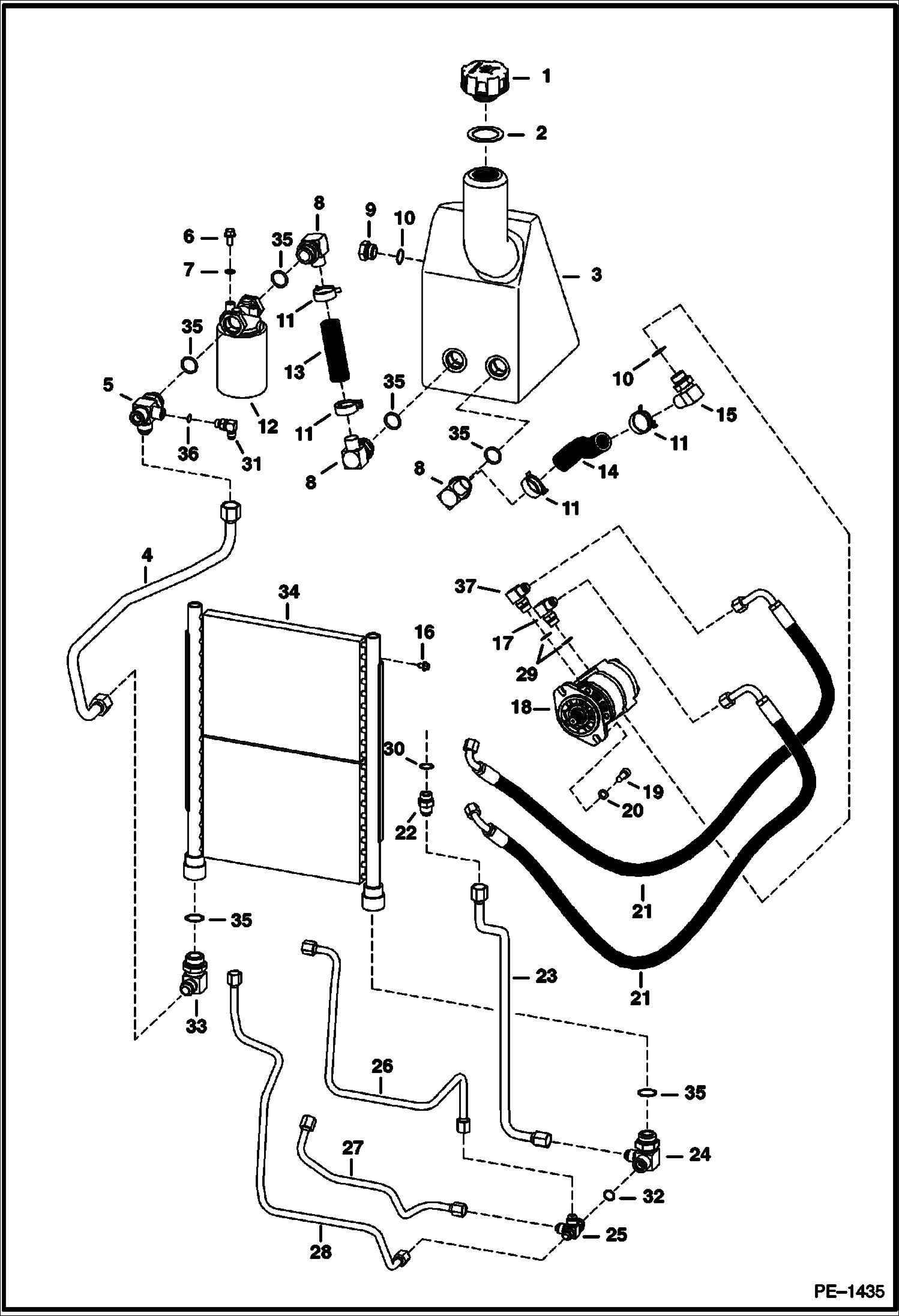

Запчасти Bobcat Mini Tracks Loaders HYDRAULIC CIRCUITRY (Cooling Group) HYDRAULIC SYSTEM

1

6727475

CAP, OIL HYD hydraulic

2

6700631

GASKET

3

6730684

TANK hydraulic

4

6731502

TUBELINE

5

6733218

ELBOW W/Ref. 35

6

35C612

BOLT

7

6E6

WASHER

8

6567883

ELBOW W/Ref. 35

9

6665915

GAUGE W/Ref. 10

10

79K12

O RING 10

11

5HM35

HOSECLAMP

12

6654897

FILTER ASSY

12

6653336

ELEMENT

13

6731756

HOSE suction

14

6733531

HOSE SUCTION suction - Was 6731645 - A

14

6734643

SUCTION HOSE Suction

15

6567884

ELBOW W/Ref. 10

16

26GM8013

BOLT

17

17KB0808

FITTING, HYD ELBOW W/Ref. 29 - Was 17KV00006B - A

18

GEAR PUMP See Illustration GEAR PUMP/ B16122

19

3GM1025

BOLT

20

15EM100

WASHER

21

6731767

HOSE

22

15KB1010

FITTING, HYD CONNECTOR W/Ref. 30 - Was 15KV00007B - A

22

97K10

O-RING 10 flared end

23

6731494

TUBELINE

24

6731487

TEE W/Ref. 35

24

97K10

O-RING 10 flared end

25

6732122

CROSS W/Ref. 32

26

6731611

TUBELINE

27

6732201

TUBELINE

28

6731924

TUBELINE

29

79K8

O RING 10 Was 99K000008B - B

30

99K10

O'RING

31

17KB0606

FITTING W/Ref. 36

32

79K8

O RING 10

33

731016

ELBOW W/Ref. 35

34

6676168

COOLER

35

79K16

O RING 10

36

79K6

O RING 10

37

6812820

ELBOW W/Ref. 29 - Was 6511914 - A
