Запчасти Bobcat Mini Tracks Loaders HYDRAULIC CIRCUITRY (Travel Group) HYDRAULIC SYSTEM

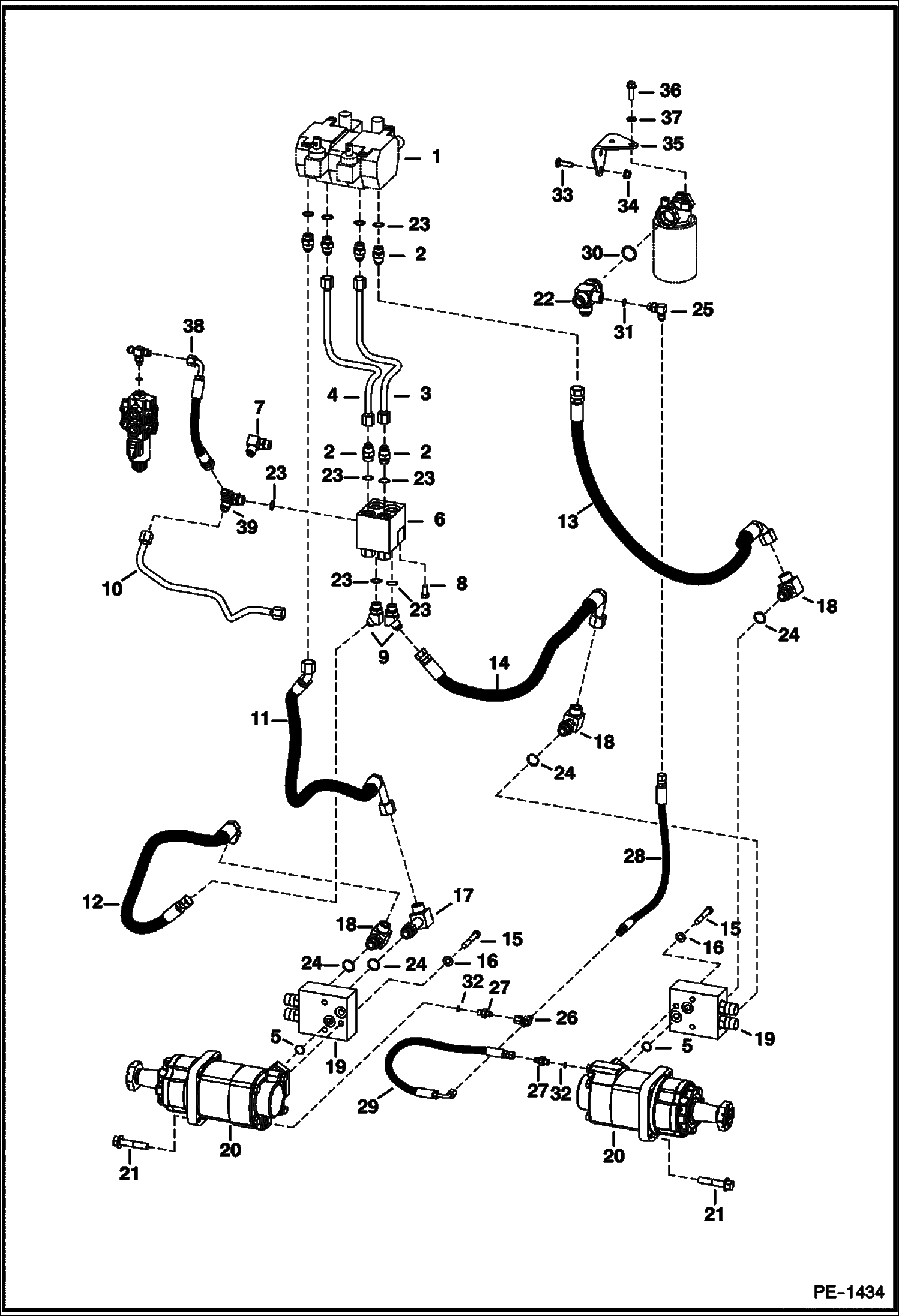

Схема запчастей Bobcat Mini Tracks Loaders - HYDRAULIC CIRCUITRY (Travel Group) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

VALVE See Illustration VALVE SECTION/ MS1283 NLA - DRIVE - Was 6678829 - A

1

6680245

DRIVE VALVE See Illustration VALVE SECTION/ MS1283 Drive

1

6682151

DRIVE VALVE See Illustration VALVE SECTION/ MS1283 drive

2

15KB0808

FITTING, HYD CONNECTOR W/Ref. 23 - Was 15KV00006B - A

2

97K8

O-RING flared end

3

6732107

TUBELINE

4

6732106

TUBELINE

5

58K115

O RING

6

6679249

VALVE rev sp limiter

6

6679907

VALVE check

6

6676564

SEAL KIT

6

6679908

VALVE priority

6

6679914

SEAL KIT

7

17KB0808

FITTING, HYD ELBOW W/Ref. 23 - Was 17KV00006B - A

7

97K8

O-RING flared end

8

17C612

BOLT 5

9

18KB0808

FTG HYD ELBOW 45 W/Ref. 23 - Was 18KN00006B - A

9

96K8

O-RING flared end

10

6732201

TUBELINE

11

6731801

HOSE

12

6732221

HOSE

13

6733298

HOSE

14

6733297

HOSE

15

18C744

BOLT

16

28E7

WASHER

17

45E1010

ELBOW W/Ref. 24

17

55K16

O'RING flared end

18

6733014

ELBOW W/Ref. 24

18

55K16

O'RING flared end

19

6680103

VALVE counterbalance - W/Ref. 5

19

7031160

VALVE, RELIEF Was 6679280 - A

19

6679281

SEAL KIT

20

6680104

MOTOR See Illustration DRIVE MOTOR/ B16492

21

49C828

SCREW Was 31C000828B - B

22

6733218

ELBOW W/Ref. 30

23

98K8

ORING

24

75K10

O RING 10

25

17KB0606

FITTING W/Ref. 31

26

14K3

TEE

27

15KB0404

FTG HYD S Connector W/Ref. 32 - flat boss face

28

6536793

HOSE

29

6800677

HOSE

30

79K16

O RING 10

31

79K6

O RING 10

32

79K4

O RING 10

33

37C616

BOLT

34

55D6

NUT

35

6733689

BRACKET

36

35C612

BOLT

37

6E6

WASHER

38

6735095

HOSE

39

6735111

FITTING

Выбрано товаров: 52
