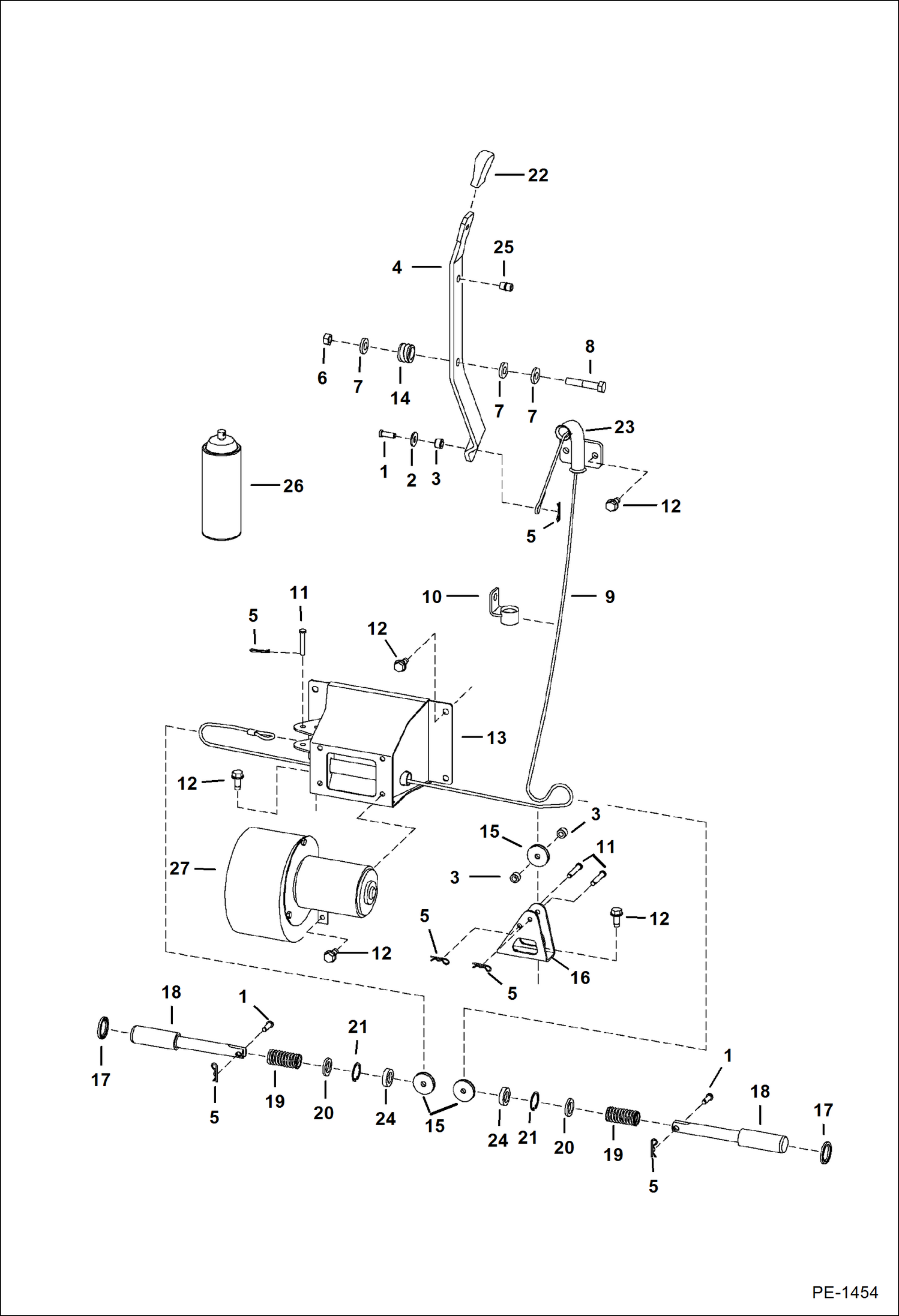

Запчасти Bobcat Mini Tracks Loaders BRAKES DRIVE TRAIN

1

4F4051

PIN

2

27E4

WASHER

3

6732073

SPACER

4

6732593

LEVER

5

6513495

COTTER PIN

6

85D6

NUT, 5

7

6557831

WASHER

8

17C632

BOLT 5

9

6732615

BRAKE CABLE

10

6732152

GUIDE ASSY cable

11

6732090

PIN

12

84G3112

BOLT 5

13

6732175

FAN MOUNT ASSY See Illustration BLOWER ASSEMBLY/ B16430

14

6704453

SPRING compression

15

6732097

PULLEY brake

16

6732074

MOUNT pulley

17

1990599

WIPER oil

18

6732042

PIN brake

18

6735221

PIN Brake

19

6679144

SPRING brake

20

6732043

WASHER

20

6684131

SEAL Oil

21

23J16

SNAP RING

22

6564452

GRIP

23

6732543

BRACKET

24

6732877

BUSHING

25

6679274

INSERT

26

6734207

LUBRICANT GRAPHITE Graphite Spray

27

6678901

BLOWER See Illustration BLOWER ASSEMBLY/ B16430
