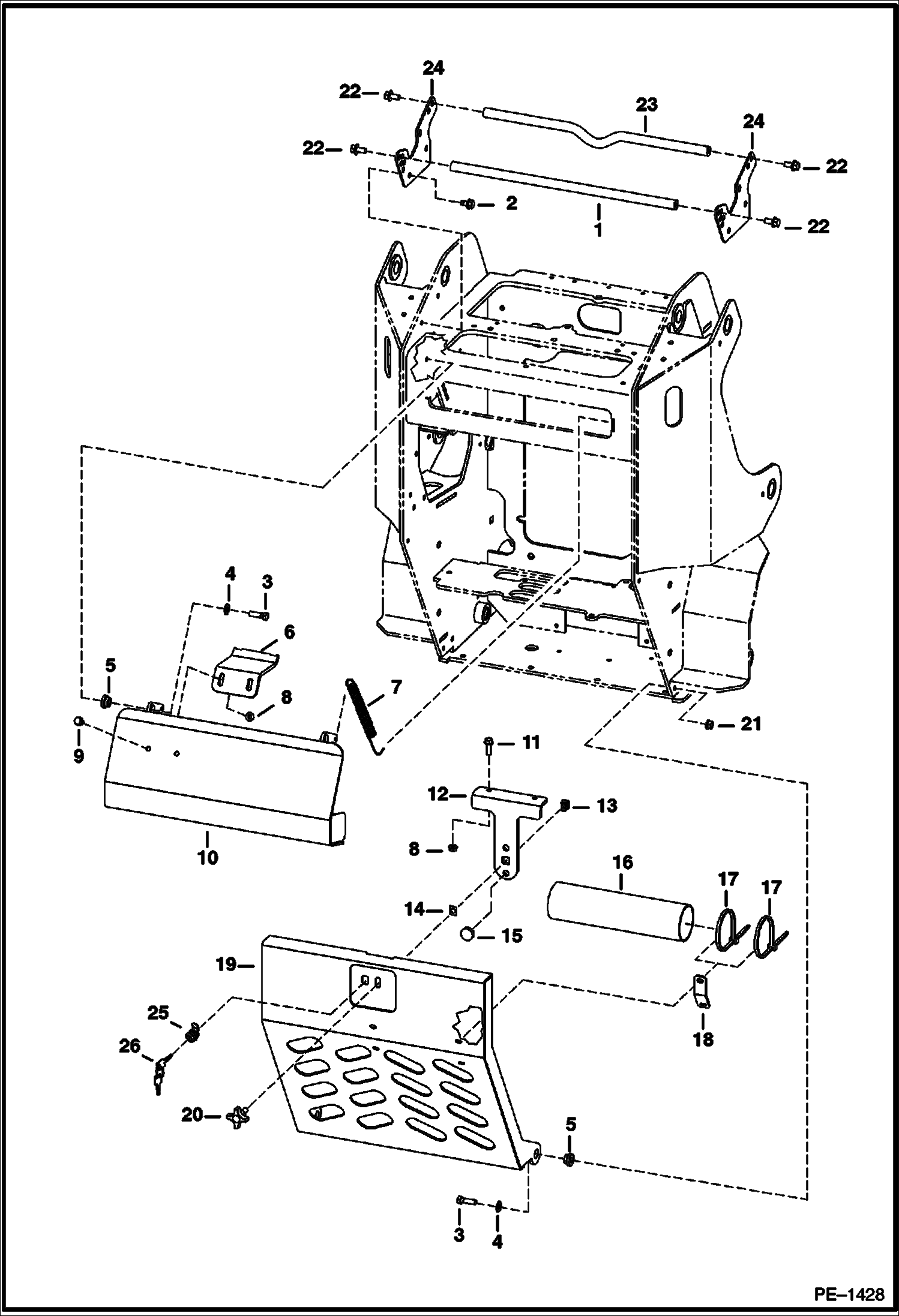

Запчасти Bobcat Mini Tracks Loaders REAR DOOR MAIN FRAME

1

6732584

GRAB HANDLE

2

84G3710

SCREW

3

17C620

BOLT

4

25E17

WASHER 5

5

6731323

BUSHING pivot

6

6731339

STOP PLATE

7

6700743

SPRING

8

97D5

NUT

9

35C512

BOLT

10

6730688

REVERSE STOP

11

35C516

BOLT 10

12

6731344

STOP BRACKET

13

6678785

NUT self retaining

14

6684033

NUT spring - Was 6674894 - B

15

6519178

BUMPER

16

6679170

CONTAINER manual

17

6624289

STRAP, TIE

18

6732091

BRACKET container

19

6730693

REAR DOOR

20

6678755

KNOB

21

97D6

NUT 10

22

35C612

BOLT

23

6732546

GRAB HANDLE

24

6732542

BRACKET

25

6675723

LOCK option

25

6675843

NUT option

26

KEY NLA - includes two keys W/ring - Order 6693241 - Was 6709527 - A

26

6693241

KEY 10 ignition - single key W/O ring
